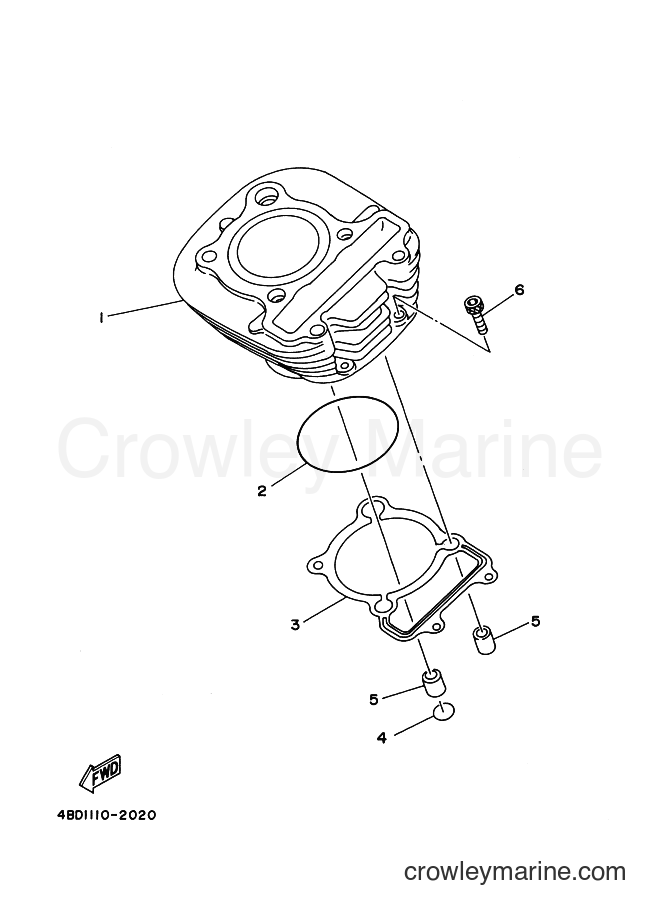

1996 ATV YFB250U - YFB250U (4BDE) [010] CYLINDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YFB250U (4BDE) [010] - CYLINDER
Change View:
TRIM CYLINDER ASSEMBLY
1
Yamaha Motors
TRIM CYLINDER ASSEMBLY4BD-11310-01-00
Required: 1
CYLINDER
Cross Ship
Leaves in 2-5 days
$396.99
$337.44
You save $59.55
More details
O-Ring
2
Yamaha Motors
O-Ring93210-72529-00
Required: 1
O-RING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
5MP-11351-00-00
3
Yamaha Motors
5MP-11351-00-004BD-11351-00-00
Required: 1
GASKET, CYLINDER
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
O-Ring
4
Yamaha Motors
O-Ring93210-13361-00
Required: 1
O-RING
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
