1995 ATV YFS200 - YFS200 (3JMH) [010] GENERATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

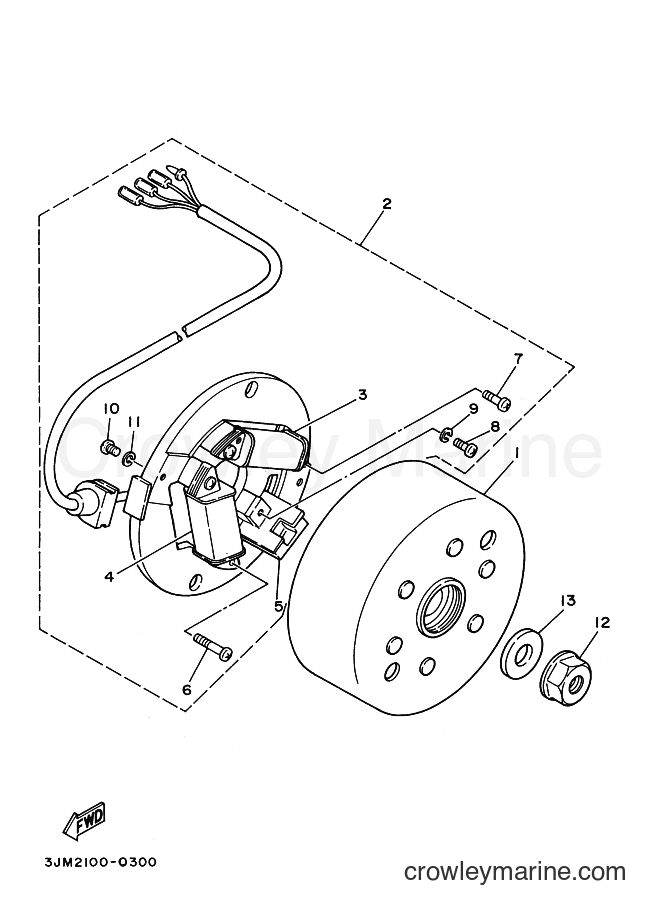

Yamaha Motors YFS200 (3JMH) [010] - GENERATOR
Change View:
1
Required: 1
ROTOR ASSY
Price unavailable
Base Assembly
2
Yamaha Motors
Base Assembly3JM-85560-00-00
Required: 1
BASE ASSY
Cross Ship
Leaves in 2-5 days
$244.79
$208.07
You save $36.72
More details
COIL, CHARGE
3
Yamaha Motors
COIL, CHARGE37A-85520-M2-00
Required: 1
. COIL, CHARGE
Supersedes: 37A-85520-M1-00
Cross Ship
Leaves in 2-5 days
$95.99
$81.59
You save $14.40
More details
4
Required: 1
. COIL, LIGHTING 1
Price unavailable
5
Required: 1
. COIL, PULSER
Price unavailable
Pan Head Screw
6
Yamaha Motors
Pan Head Screw98517-04020-00
Required: 2
. SCREW, PAN HEAD
Supersedes: 98511-04020-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Pan Head Screw
7
Yamaha Motors
Pan Head Screw98511-04012-00
Required: 2
. SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$2.10
$1.78
You save $0.32
More details
90179-12657-00
12
Yamaha Motors
90179-12657-0090179-12248-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$3.30
$2.80
You save $0.50
More details
Plain Washer
13
Yamaha Motors
Plain Washer90201-123L6-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$15.49
$13.17
You save $2.32
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
