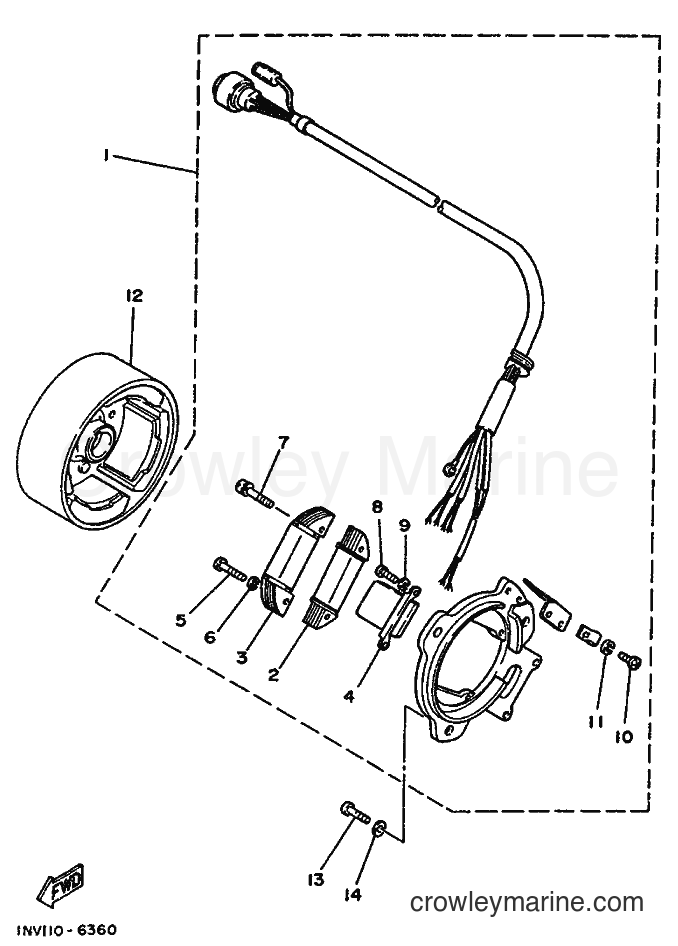

1992 ATV YFB250 - YFB250 (4BD3) [999] GENERATOR diagram
![Yamaha Motors YFB250 (4BD3) [999] - GENERATOR](https://cdn.crowleymarine.com/yamaha/YB3IfkgM.png)
$621.34
You save $109.65
2
Yamaha Motors
COIL SOURCE21V-85512-20-00
Required: 1
. COIL, SOURCE
$85.84
You save $15.15
3
Yamaha Motors
Lighting Coil24W-85513-20-00
Required: 1
. COIL, LIGHTING 1
$57.79
You save $10.20
4
Yamaha Motors
Pulser Coil59V-85580-20-00
Required: 1
. COIL, PULSER
Supersedes: 21V-85580-20-00
$118.14
You save $20.85
5
Yamaha Motors
98507-04018-0098506-04018-00
Required: 2
. SCREW, PAN HEAD
$0.68
You save $0.12
6
Yamaha Motors
Spring Washer92990-04100-00
Required: 2
. WASHER, SPRING
Supersedes: 92901-04100-00
In stock
5+ in stock
$0.81
You save $0.14
7
Yamaha Motors
Pan Head Screw98517-04030-00
Required: 2
. SCREW, PAN HEAD WITH WASHER
Supersedes: 97601-04132-00
$5.09
You save $0.90
8
Yamaha Motors
Screw97885-05010-00
Required: 2
. SCREW, PAN HEAD
Supersedes: 98501-05010-00
In stock
Only 2 remaining
$2.59
You save $0.46
9
Yamaha Motors
Spring Washer92990-05100-00
Required: 2
. WASHER, SPRING
Supersedes: 92901-05100-00
In stock
Only 5 remaining
$0.30
You save $0.05
10
Yamaha Motors
.SCREW, PAN HEAD97802-04008-00
Required: 2
. SCREW, PAN HEAD
Supersedes: 98580-04008-00
In stock
Only 2 remaining
$1.70
You save $0.30
11
Yamaha Motors
Spring Washer92990-04100-00
Required: 2
. WASHER, SPRING
Supersedes: 92901-04100-00
In stock
5+ in stock
$0.81
You save $0.14
$526.14
You save $92.85
13
Yamaha Motors
Pan Head Screw98580-06016-00
Required: 3
SCREW, PAN HEAD
Supersedes: 98502-06016-00
In stock
Only 5 remaining
$2.85
You save $0.50
14
Yamaha Motors
Plate Washer92990-06600-00
Required: 3
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
