1990 ATV YFA1 - YFA1 (3FA4) [010] GUARD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

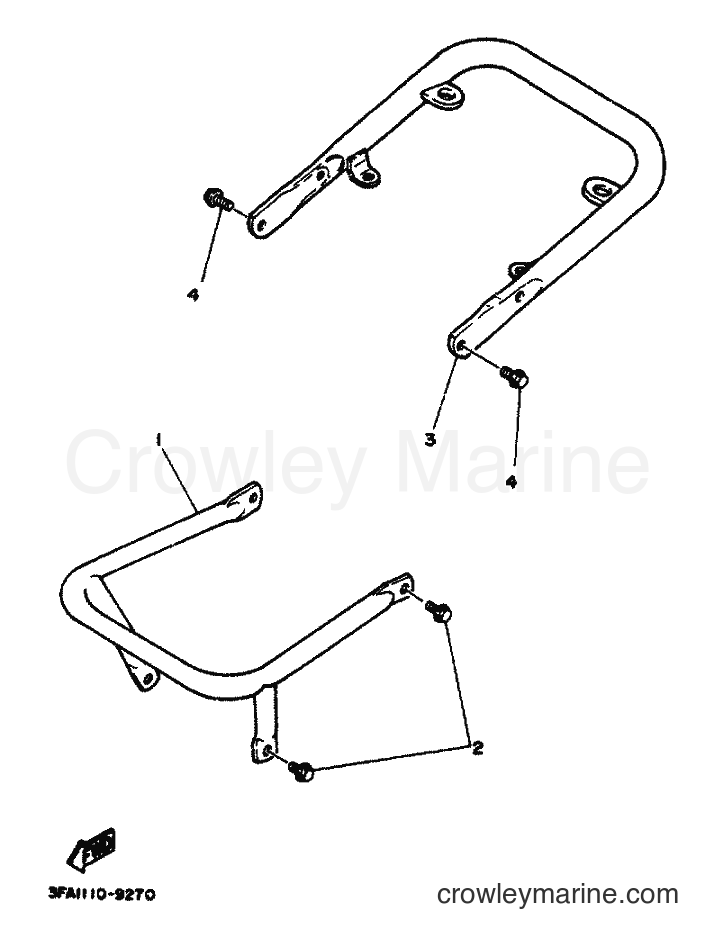

Yamaha Motors YFA1 (3FA4) [010] - GUARD
Change View:
FRONT BUMPER
1
Yamaha Motors
FRONT BUMPER3FA-2845N-10-33
Required: 1
BUMPER, FRONT
Supersedes: 3FA-28411-00-33
Cross Ship
Leaves in 2-5 days
$178.99
$152.14
You save $26.85
More details
Flange Bolt
2
Yamaha Motors
Flange Bolt95817-08014-00
Required: 4
BOLT, FLANGE
Supersedes: 95811-08014-00
Cross Ship
Leaves in 2-5 days
$2.50
$2.13
You save $0.38
More details
REAR CARRY BAG
3
Yamaha Motors
REAR CARRY BAG3FA-2845R-10-33
Required: 1
GUARD, REAR 1
Supersedes: 3FA-28421-00-33
Cross Ship
Leaves in 2-5 days
$111.99
$95.19
You save $16.80
More details
Flange Bolt
4
Yamaha Motors
Flange Bolt95817-08016-00
Required: 3
BOLT, FLANGE
Supersedes: 95811-08016-00
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
