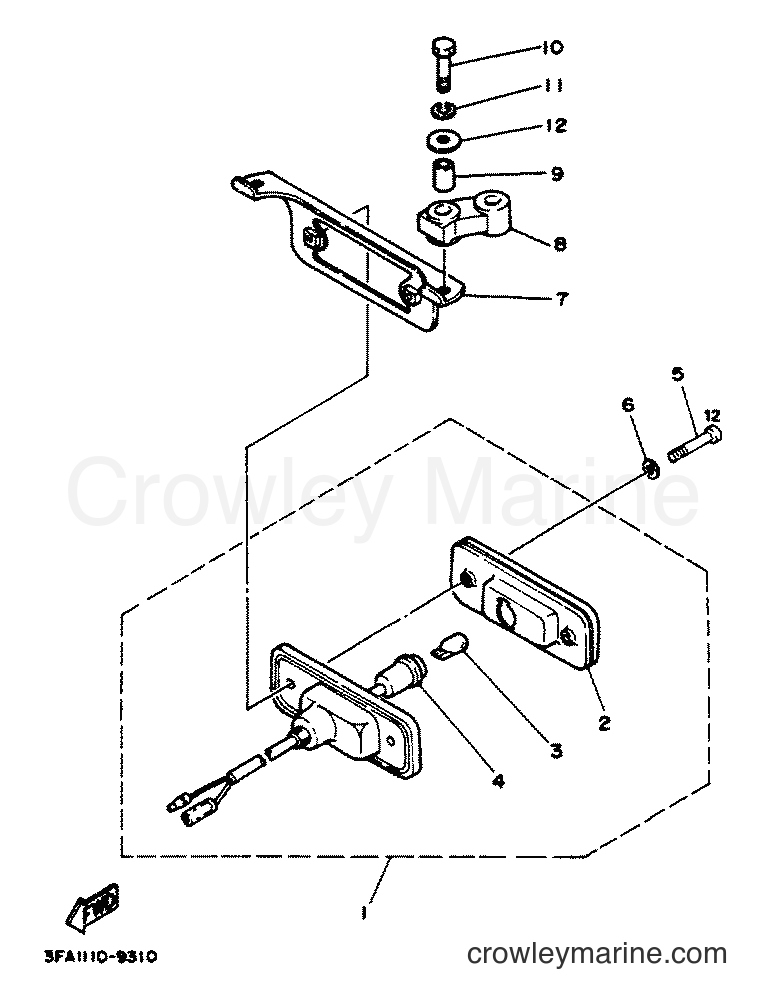

1990 ATV YFA1 - YFA1 (3FA4) [020] TAILLIGHT diagram
![Yamaha Motors YFA1 (3FA4) [020] - TAILLIGHT](https://cdn.crowleymarine.com/yamaha/s1u9yMKy.png)
1
Yamaha Motors
TAIL LIGHT UNIT ASSEMBLY38W-84710-00-00
Required: 1
TAILLIGHT UNIT ASSY
$42.49
You save $7.50
2
Yamaha Motors
TAIL LIGHT LENS38W-84721-00-00
Required: 1
LENS, TAILLIGHT
$11.47
You save $2.02
$2.04
You save $0.36
4
Yamaha Motors
TAIL LIGHT UNIT ASSEMBLY38W-84710-00-00
Required: 1
CORD, TAILLIGHT
Supersedes: 38W-84717-00-00
$42.49
You save $7.50
5
Yamaha Motors
Pan Head Screw98517-04020-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98511-04020-00
$8.07
You save $1.42
6
Yamaha Motors
Plate Washer92990-04600-00
Required: 2
WASHER, PLATE
Supersedes: 92901-04600-00
In stock
Only 1 remaining
$0.84
You save $0.15
7
Yamaha Motors
TAIL LIGHT BRACKET1UY-84702-10-00
Required: 1
BRACKET, TAILLIGHT
Supersedes: 1UY-84702-00-00
$27.19
You save $4.80
8
Yamaha Motors
TAIL DAMPER38W-84736-00-00
Required: 2
DAMPER, TAIL 1
$6.37
You save $1.12
In stock
Only 1 remaining
$8.92
You save $1.57
$0.81
You save $0.14
11
Yamaha Motors
Spring Washer92907-06100-00
Required: 4
WASHER, SPRING
Supersedes: 92906-06100-00
In stock
Only 1 remaining
$1.10
You save $0.20
12
Yamaha Motors
Plate Washer90201-06057-00
Required: 4
WASHER, PLATE
Supersedes: 90201-06059-00
$5.52
You save $0.97
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
