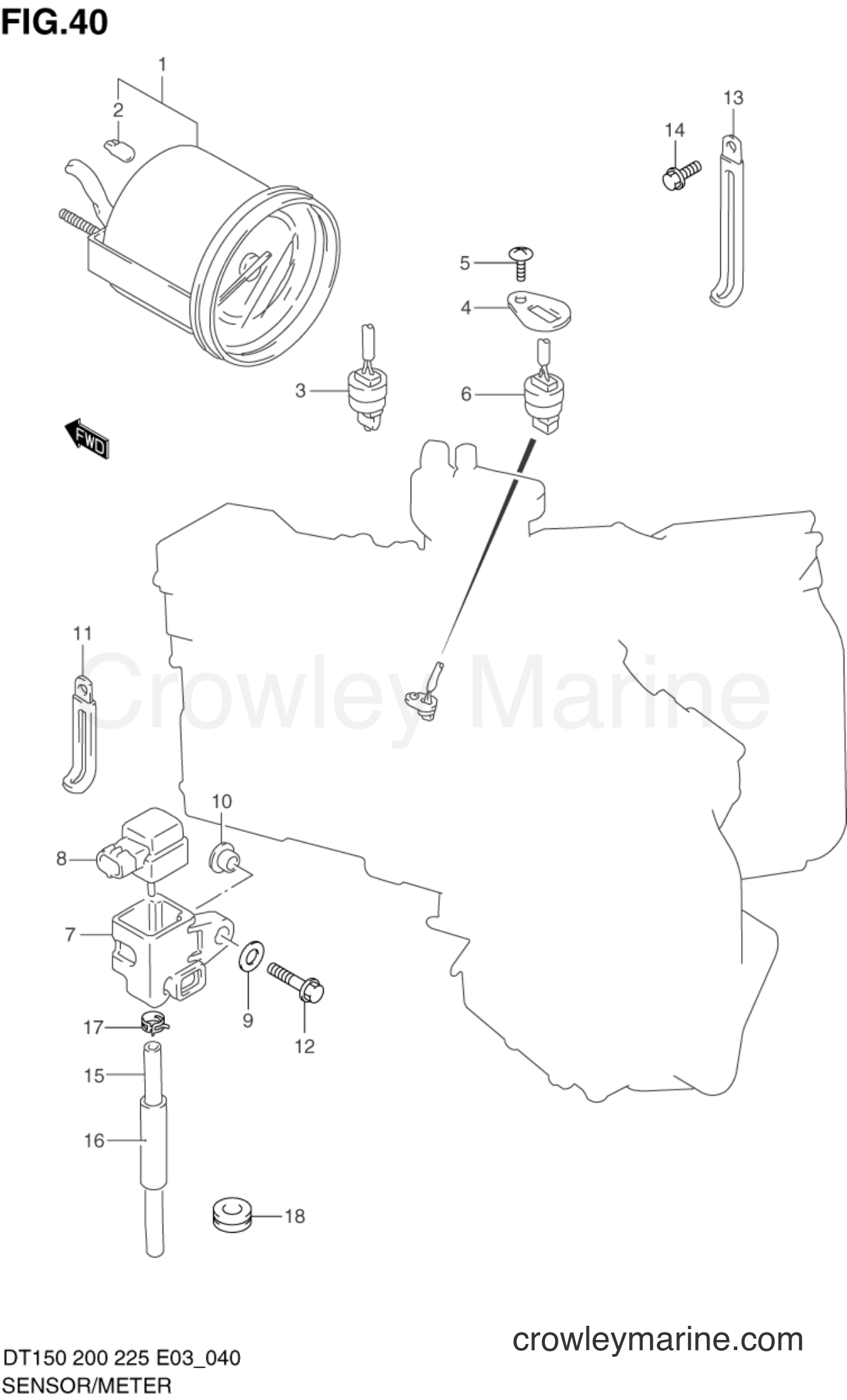

2001 Two-Stroke Outboard 225 - DT225 SENSOR & METER (DT150(G/S),200(G)) diagram
1
Suzuki Marine
Obsolete Suzuki Part34200-92E02
Required: 1
TACHOMETER ASSY
$99.41
You save $17.54
$6.25
You save $1.10
3
Suzuki Marine
SENSOR,CYLINDER34830-92E10
Required: 2
SENSOR, CYLINDER TEMP
$45.26
You save $7.99
4
Suzuki Marine
SUPORTER,ENGINE34853-94700
Required: 2
SUPPORTER, AIR TEMP
$3.26
You save $0.57
5
Suzuki Marine
SCREW 6X12 (SUS09125-06069
Required: 2
SCREW, AIR TEMP SNSR
In stock
Only 1 remaining
$1.97
You save $0.35
6
Suzuki Marine
SENSOR, AIR TEM34830-94600
Required: 1
SENSOR, AIR TEMP
$42.97
You save $7.58
7
Suzuki Marine
Obsolete Suzuki Part34881-94600
Required: 1
BRACKET, AIR PRESSURE SNSR
$5.76
You save $1.02
8
Suzuki Marine
SENSOR, AIR PRE18590-94600
Required: 1
SENSOR, AIR PRESSURE
$261.46
You save $46.14
9
Suzuki Marine
WASHER HANDLE C09160-06052
Required: 1
WASHER, AIR PRESSURE
$1.49
You save $0.26
10
Suzuki Marine
WASHER,THROTTLE09169-06062
Required: 1
SPACER, AIR PRESSURE
$2.57
You save $0.45
11
Suzuki Marine
CLAMP(L:65)09404-06039
Required: 1
CLAMP, AIR PRESSURE
Supersedes: 09404-06432
$1.78
You save $0.31
12
Suzuki Marine
Screw (M8 X 40)02162-06257
Required: 1
BOLT, AIR PRESSURE
$1.40
You save $0.25
13
Suzuki Marine
CLAMP(L:80)09404-06036
Required: 1
CLAMP, PTT MOTOR CABLE
Supersedes: 09404-06433
$1.80
You save $0.32
14
Suzuki Marine
BOLT02162-06127
Required: 1
BOLT, PTT MOTOR CABLE
$1.39
You save $0.25
In stock
Only 1 remaining
$9.99
You save $1.76
$2.58
You save $0.46
$1.90
You save $0.34
18
Suzuki Marine
GROMMET, WATER TUBE (UPPER)09308-08011
Required: 1
GROMMET, PRESSURE HOSE
$2.54
You save $0.45
19
Required: 1
REFER TO FIG.41(F-5) FOR DT225,DT225G
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
