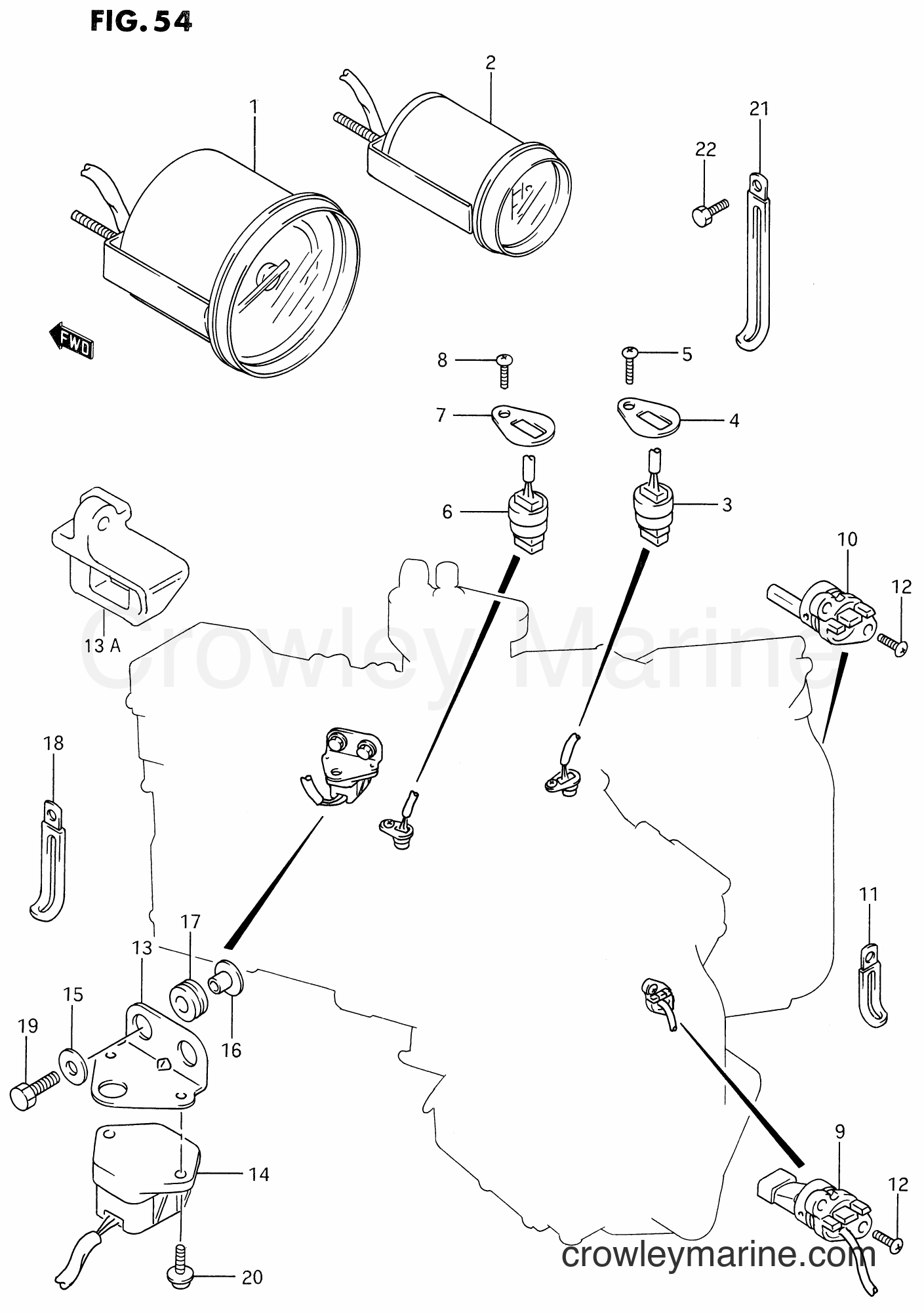

1999 Two-Stroke Outboard 225 - DT225 SENSOR & METER diagram
1
Suzuki Marine
Obsolete Suzuki Part34200-92E02
Required: 1
TACHOMETER ASSY
Supersedes: 34200-87D51
$99.41
You save $17.54
1
Suzuki Marine
Obsolete Suzuki Part34200-92E02
Required: 1
TACHOMETER ASSY
$99.41
You save $17.54
2
Suzuki Marine
Obsolete Suzuki Part34701-92X50
Required: 1
GAUGE SET, MONITORING
$203.96
You save $35.99
2
Suzuki Marine
Obsolete Suzuki Part34700-92E11
Required: 1
INDICATOR OIL & WATER
$195.46
You save $34.49
3
Suzuki Marine
SENSOR,CYLINDER34820-92E01
Required: 1
SENSOR, CYLINDER TEMP PORT
$58.28
You save $10.29
3
Suzuki Marine
SENSOR ASSY,HEA34850-95D30
Required: 1
SENSOR ASSY, HEAT STBD
Supersedes: 34850-95D00
$99.35
You save $17.53
4
Suzuki Marine
SUPORTER,ENGINE34853-94700
Required: 1
SUPPORTER, CYLINDER TEMP SNSR
$3.26
You save $0.57
$3.26
You save $0.57
5
Suzuki Marine
SCREW 6X12 (SUS09125-06069
Required: 1
SCREW, CYLINDER TEMP (6X12)
In stock
Only 1 remaining
$1.97
You save $0.35
In stock
Only 1 remaining
$1.97
You save $0.35
6
Suzuki Marine
SENSOR,CYL TEMP34830-92E00
Required: 1
SENSOR, AIR TEMP
$47.34
You save $8.35
7
Suzuki Marine
SUPORTER,ENGINE34853-94700
Required: 1
SUPPORTER, AIR TEMP
$3.26
You save $0.57
8
Suzuki Marine
SCREW 6X12 (SUS09125-06069
Required: 1
SCREW, AIR TEMP SENSOR
In stock
Only 1 remaining
$1.97
You save $0.35
9
Suzuki Marine
SENSOR,COOLING34870-87D10
Required: 1
SENSOR, COOLING WATER
$70.86
You save $12.51
10
Suzuki Marine
PLUG,WATER SNSR34876-92E00
Required: 2
PLUG, WATER SENSOR HOLE
$10.74
You save $1.89
11
Suzuki Marine
CLAMP(L:45 T:0.09404-08211
Required: 1
CLAMP, COOLING WATER
Supersedes: 09404-08205
$2.00
You save $0.35
12
Suzuki Marine
Screw (M8 X 40)13765-48GV0
Required: 4
SCREW, COOLING WATER
Supersedes: 03212-05163
$2.34
You save $0.41
13
Suzuki Marine
Obsolete Suzuki Part15765-92E01
Required: 2
BRACKET, AIR PRESSURE SENOSR
$7.39
You save $1.30
13
Suzuki Marine
Obsolete Suzuki Part34881-92E00
Required: 1
BRACKET, AIR PRESSURE SENSOR
$10.78
You save $1.90
14
Suzuki Marine
Obsolete Suzuki Part18590-53A01
Required: 1
SENSOR, AIR PRESSURE
$206.00
You save $36.35
15
Suzuki Marine
WASHER 6.5X18X109160-06084
Required: 2
WASHER, AIR PRESSURE
$1.83
You save $0.32
16
Suzuki Marine
WASHER,THROTTLE09169-06062
Required: 2
SPACER, AIR PRESSURE
$2.57
You save $0.45
17
Suzuki Marine
Cushion09320-08501
Required: 2
CUSHION, AIR PRESSURE
$3.39
You save $0.60
18
Suzuki Marine
CLAMP(L:65)09404-06039
Required: 1
CLAMP, AIR PRESSURE
Supersedes: 09404-06432
$1.78
You save $0.31
19
Suzuki Marine
Screw (M8 X 40)02162-06257
Required: 2
BOLT, AIR PRESSURE
$1.40
You save $0.25
20
Suzuki Marine
Screw (M8 X 40)02142-05127
Required: 2
SCREW, AIR PRESSURE
$2.01
You save $0.36
21
Suzuki Marine
CLAMP(L:80)09404-06036
Required: 1
CLAMP, PTT MOTOR CABLE
Supersedes: 09404-06434
$1.80
You save $0.32
22
Suzuki Marine
Obsolete Suzuki Part01560-06127
Required: 1
BOLT, PTT MOTOR CABLE
$1.33
You save $0.24
Required: 1
N/A
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
