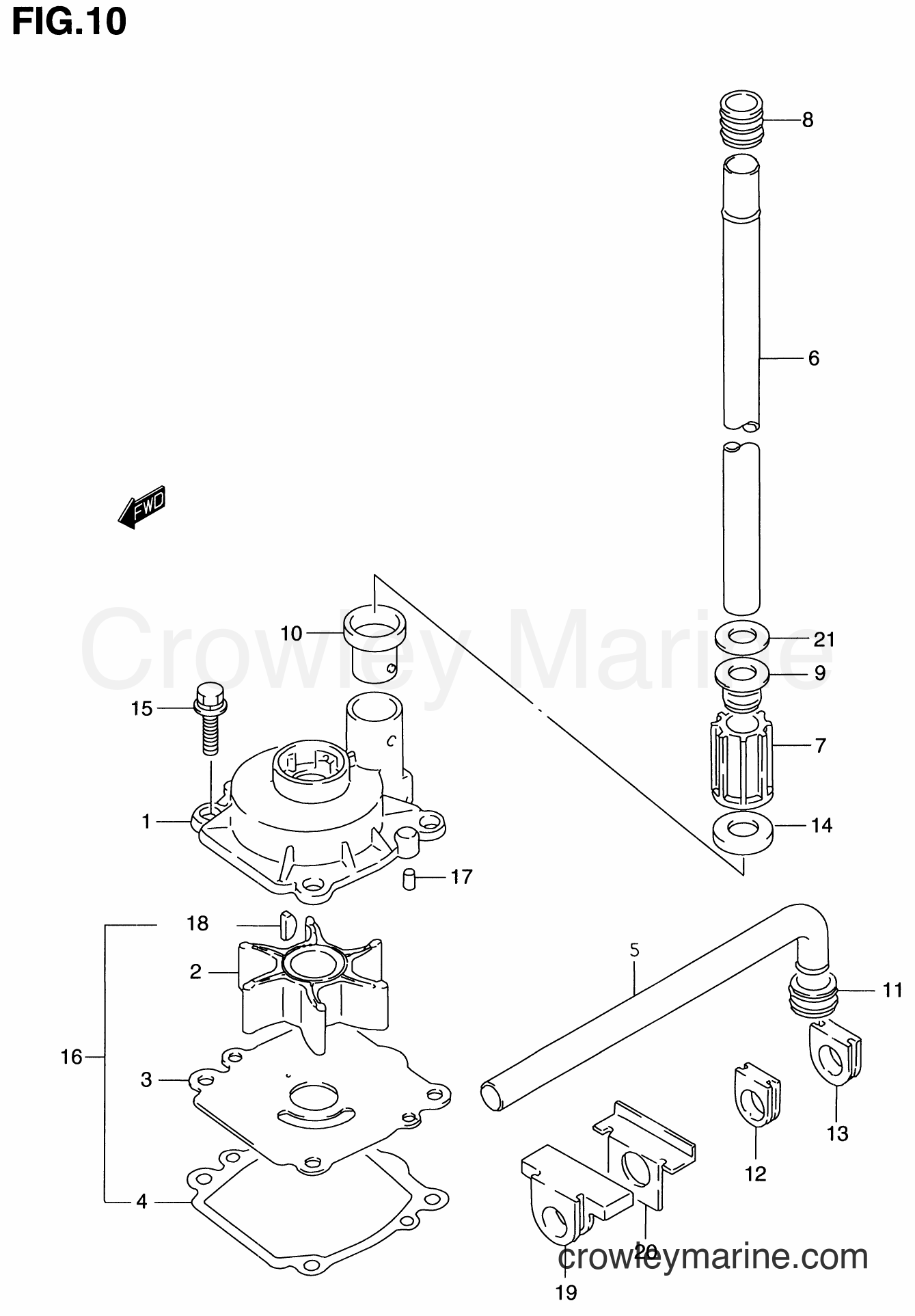

1994 Two-Stroke Outboard 100 - DT100 WATER PUMP diagram
1
Suzuki Marine
WATER PUMP CASE17400-99821
Required: 1
CASE, WATER PUMP
Supersedes: 17411-87E00
In stock
Only 1 remaining
$115.71
You save $20.42
2
Suzuki Marine
IMPELLER,WATER17461-87E12
Required: 1
IMPELLER, WATER PUMP
Supersedes: 17461-87E10
In stock
Only 2 remaining
$47.86
You save $8.45
3
Suzuki Marine
PANEL,PUMP CASE17471-92J00
Required: 1
PANEL, PUMP CASE UNDER
Supersedes: 17471-87E01
In stock
Only 1 remaining
$11.21
You save $1.98
4
Suzuki Marine
GASKET,PUMP CAS17472-87E10
Required: 1
GASKET, PUMP CASE
In stock
Only 2 remaining
$5.73
You save $1.01
5
Suzuki Marine
Obsolete Suzuki Part17521-87E01
Required: 1
TUBE, WATER SUB
$20.62
You save $3.64
$9.57
You save $1.69
6
Suzuki Marine
TUBE,WATER(L)17561-87E01
Required: 1
TUBE, WATER (L)
In stock
Only 1 remaining
$23.89
You save $4.22
6
Suzuki Marine
Obsolete Suzuki Part17561-87E11
Required: 1
TUBE, WATER (XL)
Supersedes: 17561-87E10
$15.02
You save $2.65
6
Suzuki Marine
Obsolete Suzuki Part17561-87E11
Required: 1
TUBE, WATER (XL)
$15.02
You save $2.65
7
Suzuki Marine
SPACER WATER TU17611-87D00
Required: 1
SPACER, WATER TUBE UPPER (XL)
$4.80
You save $0.85
8
Suzuki Marine
BUSH,WATER TUBE17562-87D01
Required: 1
BUSH, WATER TUBE UPPER
Supersedes: 17562-87D00
In stock
Only 3 remaining
$7.28
You save $1.28
9
Suzuki Marine
BUSH,WATER TUBE17563-87D01
Required: 1
BUSH, WATER TUBE LOWER
Supersedes: 17563-87D00
In stock
Only 2 remaining
$6.63
You save $1.17
10
Suzuki Marine
BUSH,WATER PUMP17564-87D00
Required: 1
BUSH, WATER PUMP CASE
In stock
Only 2 remaining
$11.15
You save $1.97
11
Suzuki Marine
BUSH,SUB WATER17565-87D02
Required: 1
BUSH, SUB WATER TUBE
Supersedes: 17565-87D01
$5.91
You save $1.04
12
Suzuki Marine
GROMMET17566-87D02
Required: 1
GROMMET
Supersedes: 17566-87D00
In stock
Only 2 remaining
$4.68
You save $0.83
$4.08
You save $0.72
14
Suzuki Marine
SPACER,WATER TU17612-87D01
Required: 1
SPACER, WATER TUBE
Supersedes: 17612-87D00
In stock
Only 1 remaining
$2.17
You save $0.38
15
Suzuki Marine
BOLT,8X2509117-08110
Required: 4
BOLT
Supersedes: 09117-08057
In stock
Only 1 remaining
$5.13
You save $0.91
16
Suzuki Marine
W.P.KITDF60/7017400-87E04
Required: 1
KIT, WATER PUMP REPAIR
Supersedes: 17400-87E02
In stock
Only 5 remaining
$52.92
You save $9.34
$1.96
You save $0.35
$6.14
You save $1.08
19
Suzuki Marine
RUBBER,EXHAUST55332-87D02
Required: 1
RUBBER, EXHAUST SEAL
Supersedes: 55332-87D00
$7.74
You save $1.37
20
Suzuki Marine
Obsolete Suzuki Part55333-87D02
Required: 1
PLATE, EXHAUST SEAL
$5.99
You save $1.06
21
Suzuki Marine
WASHER09161-16008
Required: 1
WASHER, WATER TUBE LOWER
In stock
Only 1 remaining
$2.37
You save $0.42
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
