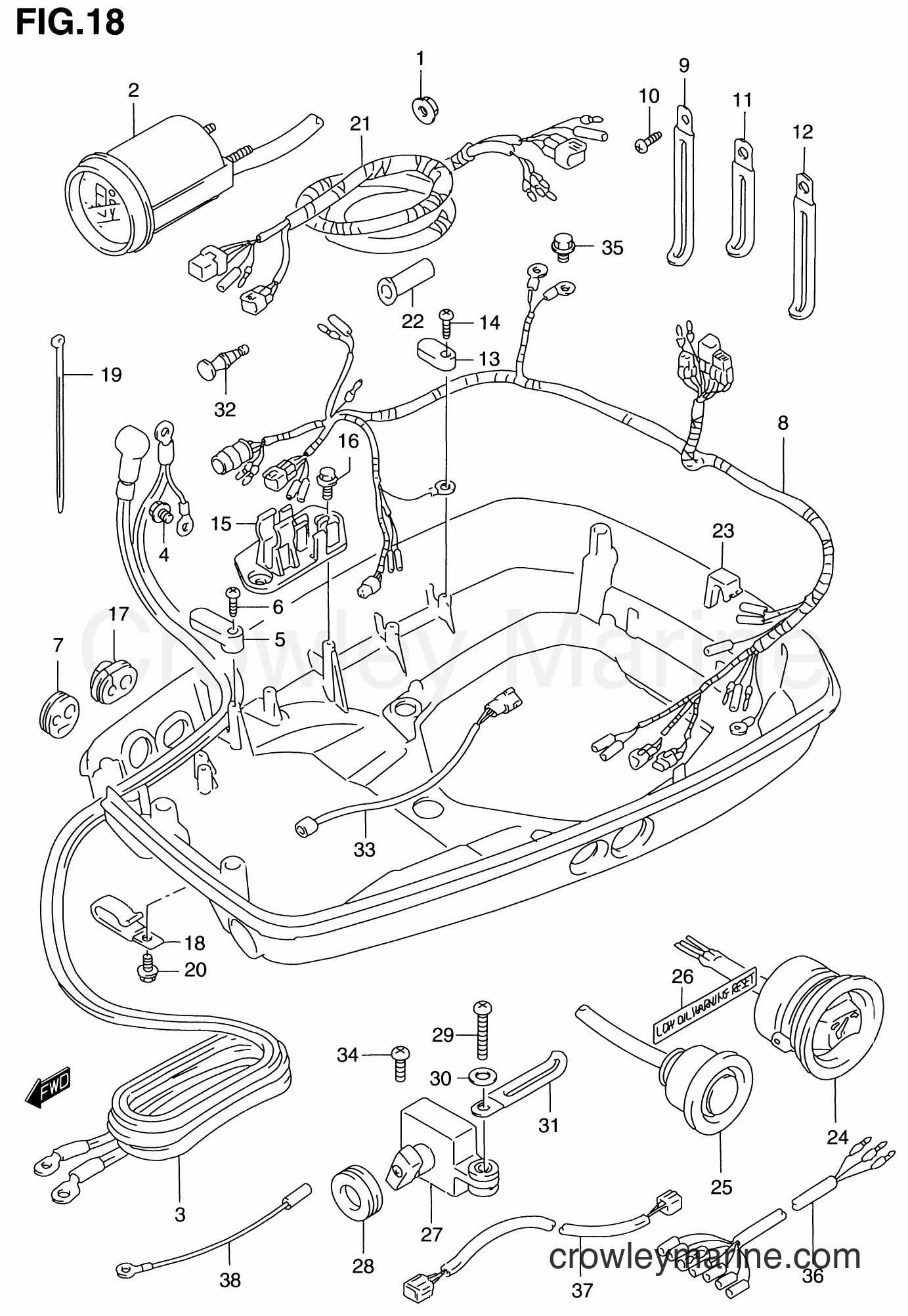

1995 Two-Stroke Outboard 100 - DT100 HARNESS diagram
1
Suzuki Marine
Obsolete Suzuki Part08319-31062
Required: 1
NUT, EARTH TERMINAL
$0.93
You save $0.16
2
Suzuki Marine
Obsolete Suzuki Part34701-92X50
Required: 1
GAUGE SET, MONITORING
$203.96
You save $35.99
2
Suzuki Marine
Obsolete Suzuki Part34700-92E11
Required: 1
GAUGE ASSY, MONITORING
$195.46
You save $34.49
3
Suzuki Marine
Obsolete Suzuki Part33810-87E01
Required: 1
CABLE ASSY, STARTING MOTOR
$108.76
You save $19.19
$2.95
You save $0.52
5
Suzuki Marine
Cable Stopper33815-87D00
Required: 1
STOPPER, CABLES
$2.49
You save $0.44
$0.22
You save $0.04
$2.78
You save $0.49
8
Suzuki Marine
Obsolete Suzuki Part36610-87E30
Required: 1
HARNESS ASSY, WIRING
$135.25
You save $23.87
8
Suzuki Marine
Obsolete Suzuki Part36610-87E40
Required: 1
HARNESS ASSY, WIRING
$88.66
You save $15.65
9
Suzuki Marine
CLAMP(L:80)09404-06036
Required: 1
CLAMP (L:95)
Supersedes: 09404-06434
$1.80
You save $0.32
9
Suzuki Marine
CLAMP(L:65)09404-06039
Required: 1
CLAMP (L:80)
Supersedes: 09404-06432
$1.78
You save $0.31
10
Suzuki Marine
Screw (M8 X 40)13765-48GV0
Required: 1
SCREW
Supersedes: 03212-05163
$2.34
You save $0.41
11
Suzuki Marine
CLAMP(L:45 T:0.09404-08211
Required: 1
CLAMP (L:62)
Supersedes: 09404-08205
$2.00
You save $0.35
12
Suzuki Marine
CLAMP,L:8209404-08206
Required: 2
CLAMP (L:82)
$3.32
You save $0.59
13
Suzuki Marine
STOPPER,WIRING36618-87D00
Required: 2
STOPPER, WIRING HARNESS
$3.11
You save $0.55
In stock
Only 3 remaining
$1.43
You save $0.25
15
Suzuki Marine
Obsolete Suzuki Part36616-87D00
Required: 1
HOLDER, HARNESS CONNECTOR
$8.23
You save $1.45
In stock
Only 2 remaining
$2.37
You save $0.42
$3.88
You save $0.68
$2.64
You save $0.47
$3.15
You save $0.56
$1.39
You save $0.25
21
Suzuki Marine
Obsolete Suzuki Part36660-87D20
Required: 1
WIRE ASSY, EXT METER
$134.46
You save $23.73
21
Suzuki Marine
Obsolete Suzuki Part36660-87E20
Required: 1
WIRE ASSY, EXT METER
$119.04
You save $21.01
21
Suzuki Marine
WIRE,MONITOR GA36660-95610
Required: 1
WIRE ASSY, MONITOR GAUGE EXT
$174.84
You save $30.86
21
Suzuki Marine
Obsolete Suzuki Part36660-92E90
Required: 1
WIRE ASSY, MONITOR GAUGE EXT
$48.92
You save $8.63
22
Suzuki Marine
Obsolete Suzuki Part36664-87D00
Required: 1
GROMMET, EXT WIRE
$5.20
You save $0.92
23
Suzuki Marine
Obsolete Suzuki Part36641-94710
Required: 2
STOPPER, WIRING HARNESS
$2.15
You save $0.38
24
Suzuki Marine
Supersedes to 37850-9561137850-95610
Required: 1
SWITCH ASSY, TILT
Supersedes: 37850-95602
$68.76
You save $12.13
24
Suzuki Marine
SWITCH ASSY,PTT37850-99E05
Required: 1
SWITCH ASSY, TILT
Supersedes: 37850-99E00
$78.68
You save $13.88
25
Suzuki Marine
SWITCH ASSY,OIL37930-95612
Required: 1
SWITCH ASSY, OIL WARNING
$31.33
You save $5.53
26
Suzuki Marine
Obsolete Suzuki Part37935-95602
Required: 1
LABEL, LOW OIL WRN
Supersedes: 37935-95601
$1.56
You save $0.27
27
Suzuki Marine
Obsolete Suzuki Part37920-95D00
Required: 1
SWITCH ASSY, TIMING
$66.67
You save $11.76
28
Suzuki Marine
Obsolete Suzuki Part37925-95D00
Required: 1
CUSHION, IGN TIMING SW
$2.10
You save $0.37
$1.36
You save $0.24
30
Suzuki Marine
SPEEDOMETER WAS09160-05024
Required: 1
WASHER (5.5X16X1.5)
$1.61
You save $0.28
31
Suzuki Marine
CLAMP(L:65)09404-06039
Required: 1
CLAMP
Supersedes: 09404-06432
$1.78
You save $0.31
32
Suzuki Marine
Terminal (Block)36615-96300
Required: 2
TERMINAL, RESIN
$1.23
You save $0.22
33
Suzuki Marine
Obsolete Suzuki Part37940-87D01
Required: 1
RESISTOR, IGN TIMING
$14.46
You save $2.55
34
Suzuki Marine
Screw (M8 X 40)03241-0510A
Required: 1
SCREW
Supersedes: 03242-05103
$1.31
You save $0.23
$1.39
You save $0.25
36
Suzuki Marine
WIRE ASSY,INSTR36630-92E00
Required: 1
WIRE ASSY, INSTRUMENT
$64.01
You save $11.30
37
Suzuki Marine
GAUGE EXTENSION36682-92E00
Required: 1
WIRE, TRIM GAUGE EXT
$72.38
You save $12.77
38
Required: 1
LEAD, GROUND
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
