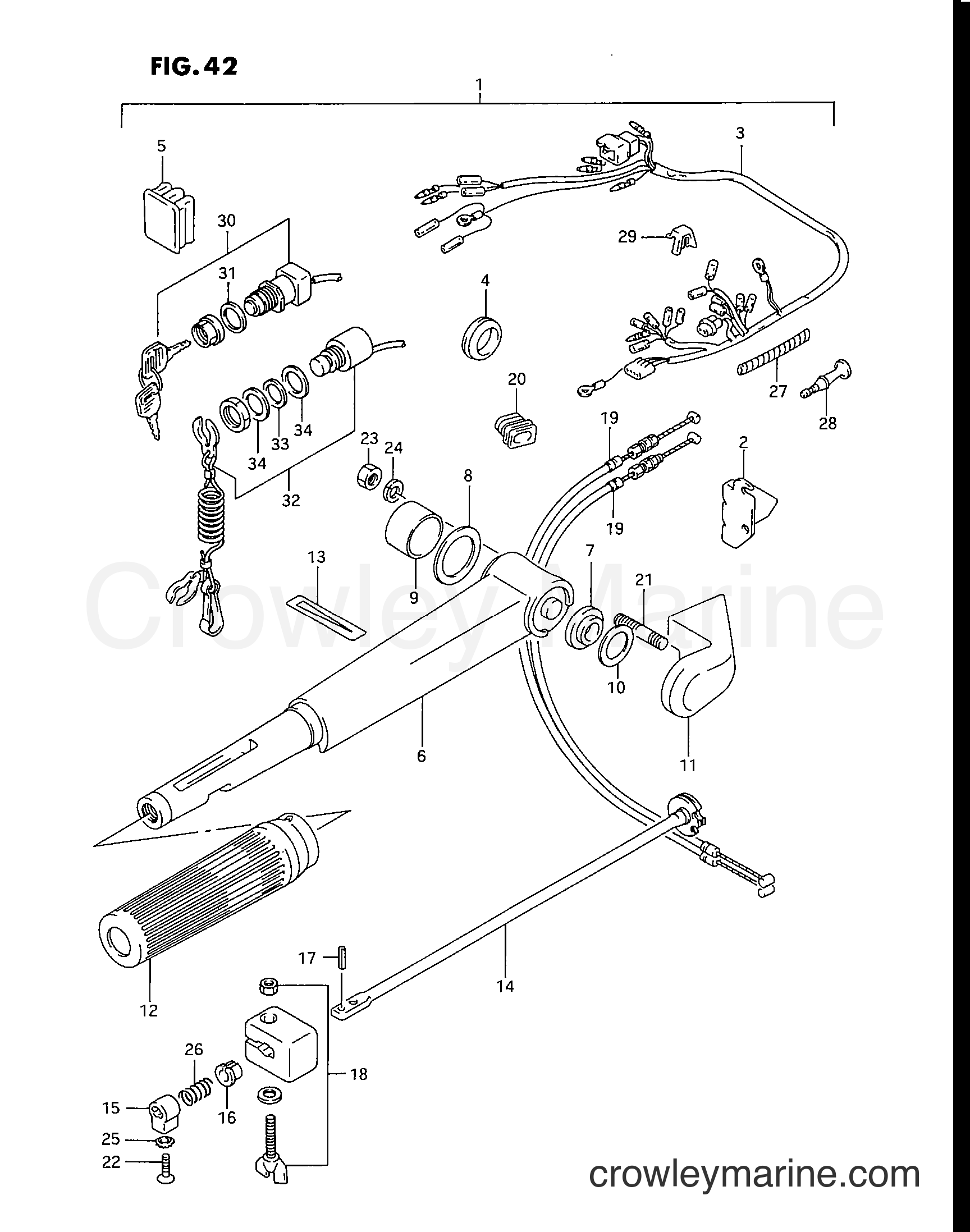

1995 Two-Stroke Outboard 30 - DT30C Optional:Tiller Handle diagram
1
Suzuki Marine
Obsolete Suzuki Part63001-95D41-0ED
Required: 1
TILLER HANDLE ASSY (GRAY)
$309.93
You save $54.69
1
Suzuki Marine
Obsolete Suzuki Part63001-95D70-0ED
Required: 1
TILLER HANDLE ASSY (GRAY)
$276.97
You save $48.88
2
Suzuki Marine
BRACKET,THROTTL19184-95D01
Required: 1
.BRACKET, THROTTLE CABLE
$8.93
You save $1.58
3
Suzuki Marine
Obsolete Suzuki Part36610-95DC0
Required: 1
.HARNESS ASSY, WIRING
$97.86
You save $17.27
4
Suzuki Marine
Obsolete Suzuki Part43753-94400
Required: 1
.GROMMET, STEERING BRKT
$2.35
You save $0.41
5
Suzuki Marine
Obsolete Suzuki Part61124-95D01
Required: 1
.GROMMET, CABLE
$7.79
You save $1.37
6
Suzuki Marine
HANDLE,TILLER63111-96322-0ED
Required: 1
.HANDLE, TILLER
Supersedes: 63111-96321-0ED
$114.91
You save $20.28
7
Suzuki Marine
SPACER,HANDLE C63114-95L00
Required: 1
.SPACER, HANDLE COVER
Supersedes: 63114-94300
$5.02
You save $1.26
8
Suzuki Marine
SPACER,HANDLE C63115-96310
Required: 1
.SPACER, HANDLE COVER INSIDE
$5.57
You save $1.39
-50%
9
Suzuki Marine
BUSH,TILLER HAN63116-96301
Required: 1
.BUSH, TILLER HANDLE
In stock
Only 1 remaining
$3.32
You save $3.32
10
Suzuki Marine
SHIM,TILLER HAN63118-94300
Required: 1
.SHIM, TILLER HANDLE
$3.37
You save $0.60
11
Suzuki Marine
Obsolete Suzuki Part63121-96320-0ED
Required: 1
.COVER, TILLER HANDLE (GRAY)
$32.26
You save $5.69
11
Suzuki Marine
COVER,TILLER HA63121-96401-0ED
Required: 1
.COVER, TILLER HANDLE (GRAY)
Supersedes: 63121-96400-0ED
$61.16
You save $10.79
$32.93
You save $5.81
13
Suzuki Marine
MARK,HANDLE GRI63215-93110
Required: 1
.MARK, HANDLE
In stock
Only 1 remaining
$3.01
You save $0.53
14
Suzuki Marine
ROD,HANDLE63220-96302
Required: 1
.ROD, HANDLE
Supersedes: 63220-96301
In stock
Only 1 remaining
$26.50
You save $6.63
15
Suzuki Marine
STOPPER,HANDLE63223-92D00
Required: 1
.STOPPER, HANDLE ROD
$3.99
You save $1.00
16
Suzuki Marine
BUSH63225-93200
Required: 1
.BUSH, HANDLE ROD
$3.60
You save $0.90
17
Suzuki Marine
HANDLE ROD PIN63227-93200
Required: 1
.PIN, HANDLE ROD
$1.94
You save $0.48
18
Suzuki Marine
ADJUSTER SET,HA63240-97E20
Required: 1
.ADJUSTER SET, HANDLE GRIP
Supersedes: 63240-97E00
$23.55
You save $4.16
19
Suzuki Marine
CABLE ASSY,THRO63610-95D02
Required: 2
.CABLE ASSY, THROTTLE
$14.76
You save $2.60
20
Suzuki Marine
Supersedes to 63625-9630063625-94430
Required: 1
.GROMMET, THROTTLE CABLE
$2.92
You save $0.52
-50%
20
Suzuki Marine
GROMMET,THRO CA63625-96300
Required: 1
.GROMMET, THROTTLE CABLE
In stock
Only 1 remaining
$1.60
You save $1.60
21
Suzuki Marine
BOLT STUD09108-08147
Required: 2
.BOLT, HANDLE COVER STUD
$6.54
You save $1.16
21
Suzuki Marine
Stud Bolt09108-08219
Required: 2
.BOLT, HANDLE COVER STUD
$4.32
You save $0.76
$2.72
You save $0.48
23
Suzuki Marine
Nut09140-08023-XC0
Required: 2
.NUT, HANDLE COVER
Supersedes: 09140-08016
$2.24
You save $0.56
24
Suzuki Marine
WASHER LOCK09162-08007
Required: 2
.WASHER, HANDLE COVER
$1.45
You save $0.36
25
Suzuki Marine
WASHER09163-06001
Required: 1
.WASHER, HANDLE GRIP SCREW
$1.45
You save $0.36
26
Suzuki Marine
SPRING,HANDLE L09440-12027
Required: 1
.SPRING, HANDLE ROD
$1.23
You save $0.31
$2.58
You save $0.46
$1.23
You save $0.22
29
Suzuki Marine
Obsolete Suzuki Part36641-94710
Required: 1
.STOPPER, CABLE
$2.15
You save $0.38
30
Suzuki Marine
SWITCH ASSY,IGN37110-95D21
Required: 1
.SWITCH, IGNITION
Supersedes: 37110-95D11
$65.25
You save $11.51
31
Suzuki Marine
WASHER09160-25069
Required: 1
.WASHER, IGNITION SW
$4.29
You save $0.76
32
Suzuki Marine
Supersedes to 37820-92E0137820-92E00
Required: 1
.SWITCH, EMERGENCY
$24.62
You save $4.35
33
Suzuki Marine
WASHER 12,5X18X09160-12087
Required: 1
.WASHER, EMERGNECY SW
$2.07
You save $0.36
34
Suzuki Marine
WASHER09160-12067
Required: 2
.WASHER, EMERGENCY SW
$2.95
You save $0.52
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
