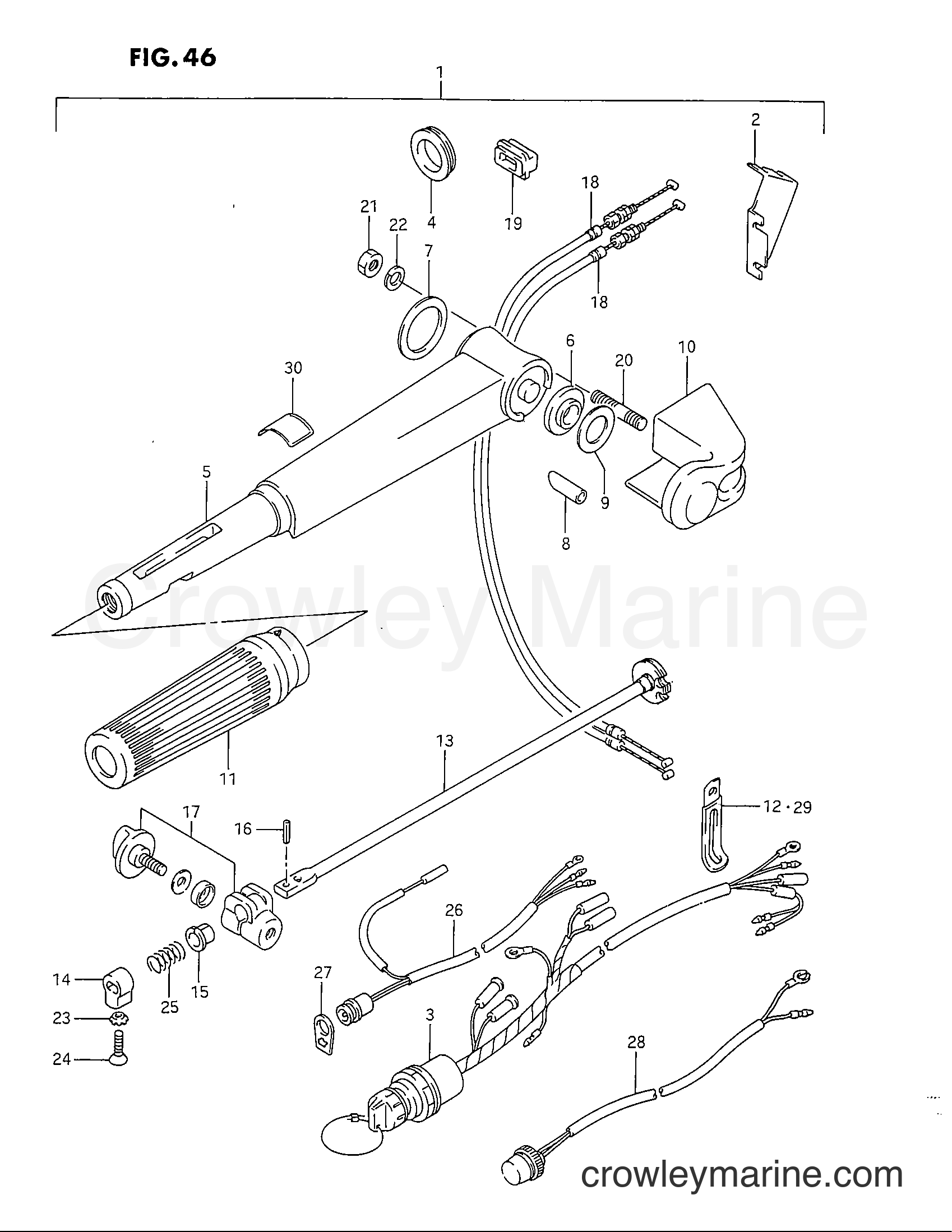

1991 Two-Stroke Outboard 40 - DT40C TILLER HANDLE diagram
1
Suzuki Marine
Obsolete Suzuki Part63001-94431-0ED
Required: 1
TILLER HANDLE ASSY (GRAY)
$231.76
You save $40.90
2
Suzuki Marine
Obsolete Suzuki Part19184-94301
Required: 1
.BRACKET, THROTTLE CABLE
$5.17
You save $0.91
3
Required: 1
.SWITCH ASSY, IGNITION
Price unavailable
4
Suzuki Marine
Obsolete Suzuki Part43753-94400
Required: 1
.GROMMET, STEERING BRACKET
$2.35
You save $0.41
5
Suzuki Marine
Supersedes to 63111-96332-0ED63111-96331-0ED
Required: 1
.HANDLE, TILLER (GRAY)
Supersedes: 63111-96313-0ED
$53.58
You save $9.46
6
Suzuki Marine
SPACER,HANDLE C63114-95L00
Required: 1
.SPACER, HANDLE COVER
Supersedes: 63114-94300
$5.34
You save $0.94
7
Suzuki Marine
SPACER,HANDLE C63115-96310
Required: 1
.SPACER, HANDLE COVER INNER
$5.92
You save $1.04
8
Suzuki Marine
COVER,STOP SWIT63117-96301
Required: 1
.COVER, STOP SWITCH WIRE
Supersedes: 63117-96300
$3.16
You save $0.56
$3.37
You save $0.60
$4.30
You save $0.76
10
Suzuki Marine
Obsolete Suzuki Part63121-96302-0ED
Required: 1
.COVER, TILLER HANDLE (GRAY)
$41.77
You save $7.37
11
Suzuki Marine
GRIP COMP,HANDL63210-93E30
Required: 1
.GRIP
Supersedes: 63210-93E00
$32.93
You save $5.81
12
Suzuki Marine
CLAMP(L:80)09404-06036
Required: 1
.CLAMP
Supersedes: 09404-06433
$1.80
You save $0.32
13
Suzuki Marine
ROD,HANDLE63220-96302
Required: 1
.ROD, HANDLE
Supersedes: 63220-96301
In stock
Only 1 remaining
$28.16
You save $4.97
14
Suzuki Marine
STOPPER,HANDLE63223-92D00
Required: 1
.STOPPER, HANDLE ROD
$4.24
You save $0.75
$3.82
You save $0.68
$2.06
You save $0.36
17
Suzuki Marine
ADJUSTER SET GR63240-96300
Required: 1
ADJUSTER SLT, HANDLE
In stock
Only 1 remaining
$12.32
You save $2.17
18
Suzuki Marine
Supersedes to 63610-92L0063610-94402
Required: 2
.CABLE ASSY, THROTTLE
$12.78
You save $2.25
19
Suzuki Marine
GROMMET,THRO CA63625-96300
Required: 1
.GROMMET, THROTTLE CABLE
In stock
Only 1 remaining
$2.73
You save $0.48
20
Suzuki Marine
Obsolete Suzuki Part09100-08147
Required: 2
.BOLT, HANDLE COVER
$2.09
You save $0.37
21
Suzuki Marine
Nut09140-08023-XC0
Required: 2
NUT, HANDLE COVER
Supersedes: 09140-08016
$2.38
You save $0.42
22
Suzuki Marine
WASHER LOCK09162-08007
Required: 2
WASHER, HANDLE COVER LOCK
$1.54
You save $0.27
23
Suzuki Marine
WASHER09163-06001
Required: 1
LOCK WASHER
$1.54
You save $0.27
$1.77
You save $0.31
$1.31
You save $0.23
26
Suzuki Marine
Obsolete Suzuki Part36360-94400
Required: 1
LAMP ASSY, OIL WARNING
$19.87
You save $3.51
27
Suzuki Marine
Obsolete Suzuki Part36365-94401
Required: 1
INDICATOR, OIL WARNING
$2.18
You save $0.39
28
Suzuki Marine
SWITCH ASSY,STO37800-93955
Required: 1
SWITCH, STOP
Supersedes: 37800-93954
$26.76
You save $4.72
29
Suzuki Marine
CLAMP(L:65)09404-06039
Required: 1
CLAMP
Supersedes: 09404-06432
$1.78
You save $0.31
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
