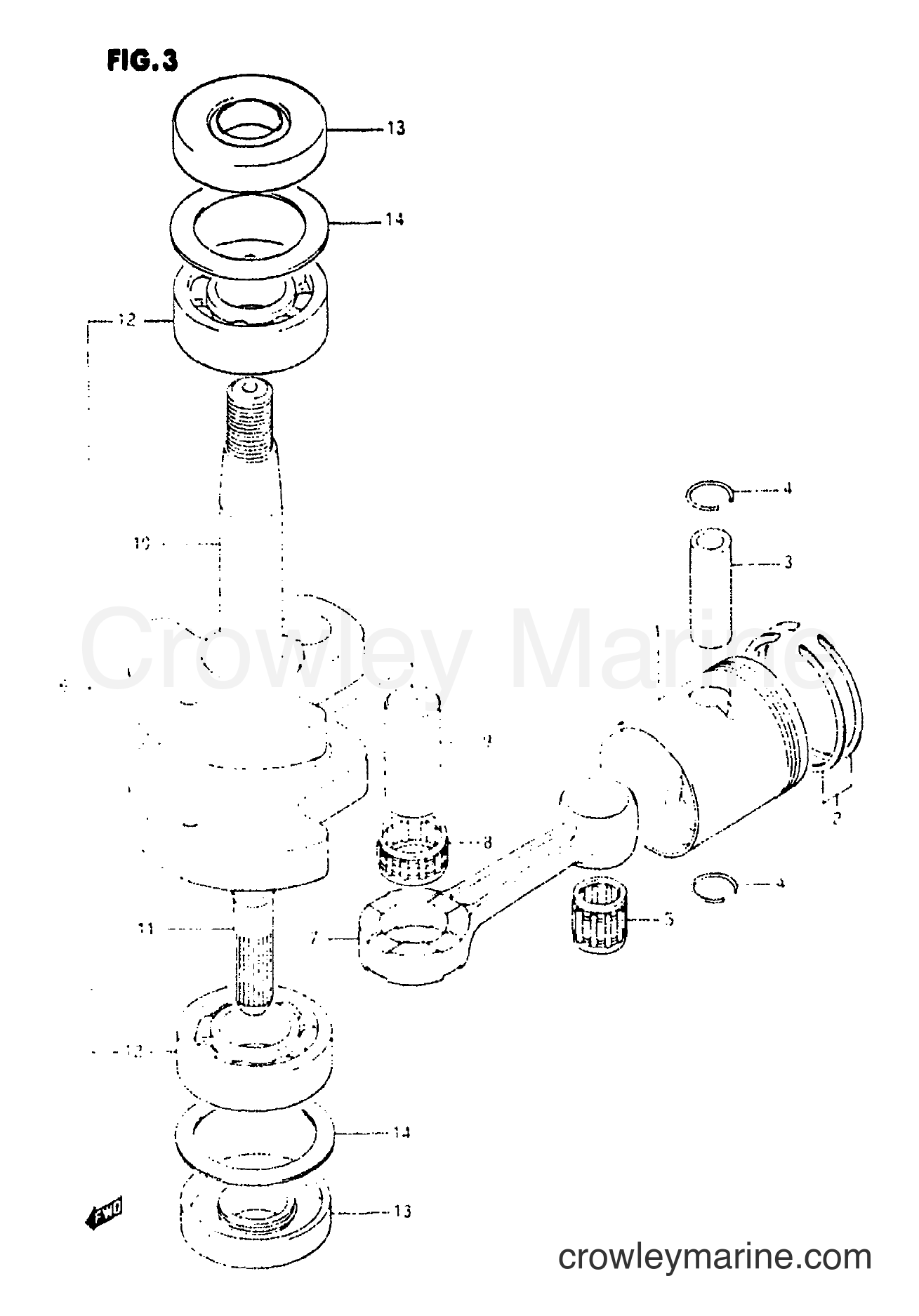

1990 Two-Stroke Outboard 2.2 - DT2.2 CRANKSHAFT diagram
$39.35
You save $6.94
1
Suzuki Marine
Obsolete Suzuki Part12110-94D01
Required: 1
PISTON
Supersedes: 12110-94D00
$20.94
You save $3.70
1
Suzuki Marine
Obsolete Suzuki Part12100-98402-025
Required: 1
PISTON/RING SET (OS:0.25)
$52.35
You save $9.24
1
Suzuki Marine
Obsolete Suzuki Part12100-94D01-025
Required: 1
PISTON/RING SET (OS:0.25)
Supersedes: 12100-94D00-025
$39.05
You save $6.89
1
Suzuki Marine
Obsolete Suzuki Part12100-98402-050
Required: 1
PISTON/RING SET (OS:0.5)
$37.37
You save $6.59
1
Suzuki Marine
Obsolete Suzuki Part12100-94D01-050
Required: 1
PISTON/RING SET (OS:0.5)
Supersedes: 12100-94D00-050
$39.05
You save $6.89
2
Suzuki Marine
Piston Ring Set12140-98400
Required: 1
RING SET, PISTON
$25.04
You save $4.42
2
Suzuki Marine
Piston Ring Set12140-36232
Required: 1
RING SET, PISTON
In stock
Only 1 remaining
$32.77
You save $5.78
$7.58
You save $1.34
$1.47
You save $0.26
5
Suzuki Marine
RN 12X16X16 BRG09263-12023
Required: 1
BEARING (12x16x15.8)
Supersedes: 09263-12020
$10.55
You save $1.86
6
Suzuki Marine
Obsolete Suzuki Part12200-98404
Required: 1
CRANKSHAFT ASSY
$121.82
You save $21.50
7
Suzuki Marine
Obsolete Suzuki Part12161-98400
Required: 1
.ROD, CONNECTING
$21.02
You save $3.71
8
Suzuki Marine
RC 15X21X10 BRG09263-15014
Required: 1
.BEARING (15x21x9.8)
$12.38
You save $2.19
9
Suzuki Marine
CRANK PIN12211-04000
Required: 1
.PIN, CRANK
Supersedes: 12211-47A00
$14.98
You save $2.64
10
Suzuki Marine
Obsolete Suzuki Part12221-98402
Required: 1
.CRANKSHAFT, UPPER
$33.90
You save $5.98
11
Required: 1
.CRANKSHAFT, LOWER
Price unavailable
In stock
Only 2 remaining
$17.34
You save $3.06
13
Suzuki Marine
Oil Seal09283-17034
Required: 2
OIL SEAL (17x40x7)
Supersedes: 09283-17002
$4.18
You save $0.74
14
Suzuki Marine
WASHER08211-32441
Required: 2
WASHER, THRUST
$3.59
You save $0.63
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
