All diagrams for this model

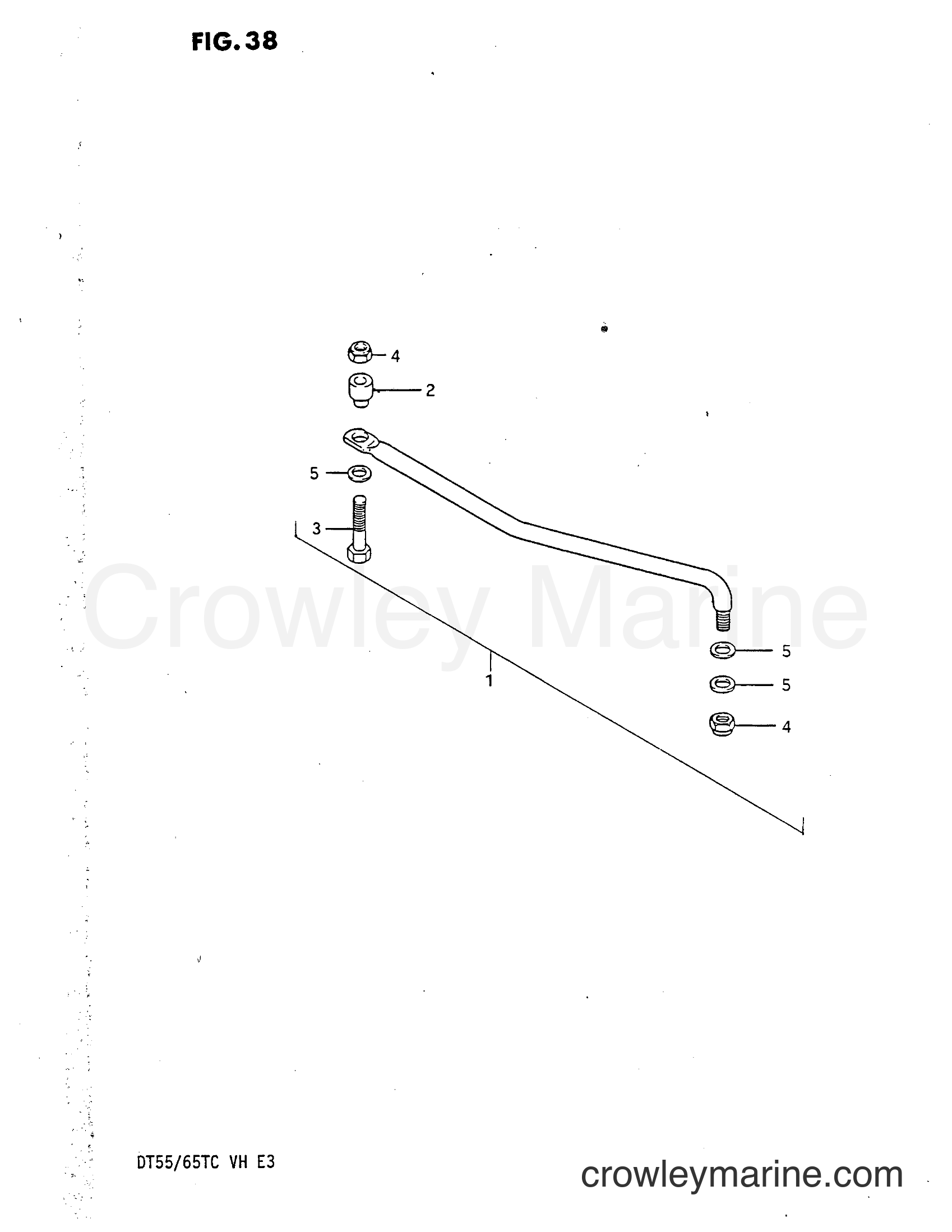

1986 Two-Stroke Outboard 55 - DT55 TIE ROD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Suzuki Marine DT55 - TIE ROD
Change View:
Supersedes to 67701-95500
1
Suzuki Marine
Supersedes to 67701-9550067701-95301
Required: 1
DRAG LINK ASSY
Supersedes: 67701-95300
Cross Ship
Leaves in 2-5 days
$69.71
$59.25
You save $10.46
More details
Spacer
2
Suzuki Marine
Spacer67721-99E00
Required: 1
.SPACER
Supersedes: 67721-94500
Cross Ship
Leaves in 2-5 days
$13.22
$11.24
You save $1.98
More details
BOLT,DRAG LINK
3
Suzuki Marine
BOLT,DRAG LINK67725-99E20
Required: 1
.BOLT
Supersedes: 67725-94500
Cross Ship
Leaves in 2-5 days
$12.65
$10.75
You save $1.90
More details
LOCK NUT
4
Suzuki Marine
LOCK NUT67726-99E00
Required: 2
.NUT
Supersedes: 67726-94500
Cross Ship
Leaves in 2-5 days
$9.16
$7.79
You save $1.37
More details
WASHER
5
Suzuki Marine
WASHER67728-99E00
Required: 3
.WASHER
Supersedes: 67728-94500
Cross Ship
Leaves in 2-5 days
$2.95
$2.51
You save $0.44
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
