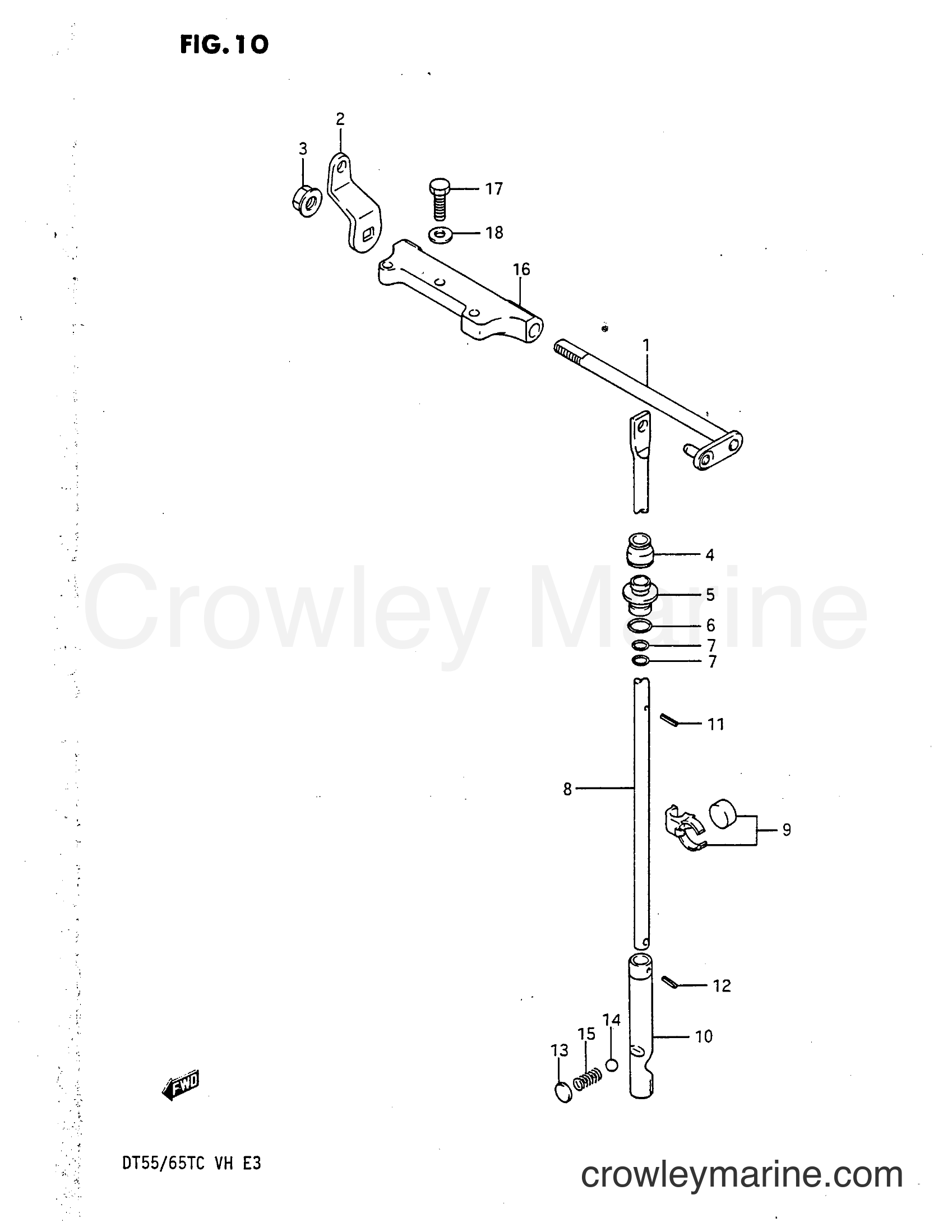

1985 Two-Stroke Outboard 55 - DT55 CLUTCH diagram
1
Suzuki Marine
SHAFT,CLUTCH21210-94703
Required: 1
SHAFT, CLUTCH
Supersedes: 21210-94702
$39.19
You save $6.92
2
Suzuki Marine
ARM,CLUTCH SHAF21213-94700
Required: 1
ARM, CLUTCH SHAFT SIDE
$4.71
You save $0.83
2
Suzuki Marine
Obsolete Suzuki Part21213-94711
Required: 1
ARM, CLUTCH SHAFT SIDE
$3.43
You save $0.61
$2.37
You save $0.42
4
Suzuki Marine
DUST SEAL25223-95200
Required: 1
DUST SEAL, SHIFT ROD
$4.16
You save $0.73
5
Suzuki Marine
Supersedes to 25211-9440125211-95203
Required: 1
GUIDE, SHIFT ROD
Supersedes: 25211-95202
$4.48
You save $0.79
6
Suzuki Marine
SHIFT ROD O RIN09280-11001
Required: 1
O RING (D:2.4,ID:10.8)
$1.93
You save $0.48
7
Suzuki Marine
"O"-Ring/Seal (Swivel Bracket)09280-08005
Required: 2
O RING (D:1.8,ID:7.6)
In stock
Only 4 remaining
$1.72
You save $0.43
8
Suzuki Marine
Obsolete Suzuki Part25111-95704
Required: 1
ROD, CLUTCH (S)
$23.93
You save $4.22
8
Suzuki Marine
ROD,SHIFT UPPER25111-95204
Required: 1
ROD, CLUTCH (L)
$45.01
You save $7.94
9
Suzuki Marine
MAGNET SET GEAR25230-94300
Required: 1
MAGNET SET, GEAR CASE
$15.71
You save $3.93
10
Suzuki Marine
CAM,SHIFT25311-947V0
Required: 1
CAM, CLUTCH
Supersedes: 25311-94700
$117.43
You save $20.72
11
Suzuki Marine
PIN09205-02004
Required: 1
SPRING PIN
In stock
Only 1 remaining
$0.82
You save $0.20
$1.00
You save $0.18
13
Suzuki Marine
CLUTCH NOTCH PL21121-93300
Required: 1
PLATE, CLUTCH NOTCH
$1.29
You save $0.32
In stock
Only 2 remaining
$1.65
You save $0.41
$1.34
You save $0.33
16
Suzuki Marine
HOLDER CLUTCH S21311-94702
Required: 1
HOLDER, CLUTCH SHAFT
Supersedes: 21311-94701
$8.62
You save $1.52
$1.11
You save $0.20
18
Suzuki Marine
WASHER09160-06082
Required: 3
WASHER
Supersedes: 09160-06015
In stock
Only 2 remaining
$1.38
You save $0.35
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
