Serial Range Four-Stroke Outboard 9.9 - DF9.9AR 610001~ CRANKSHAFT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

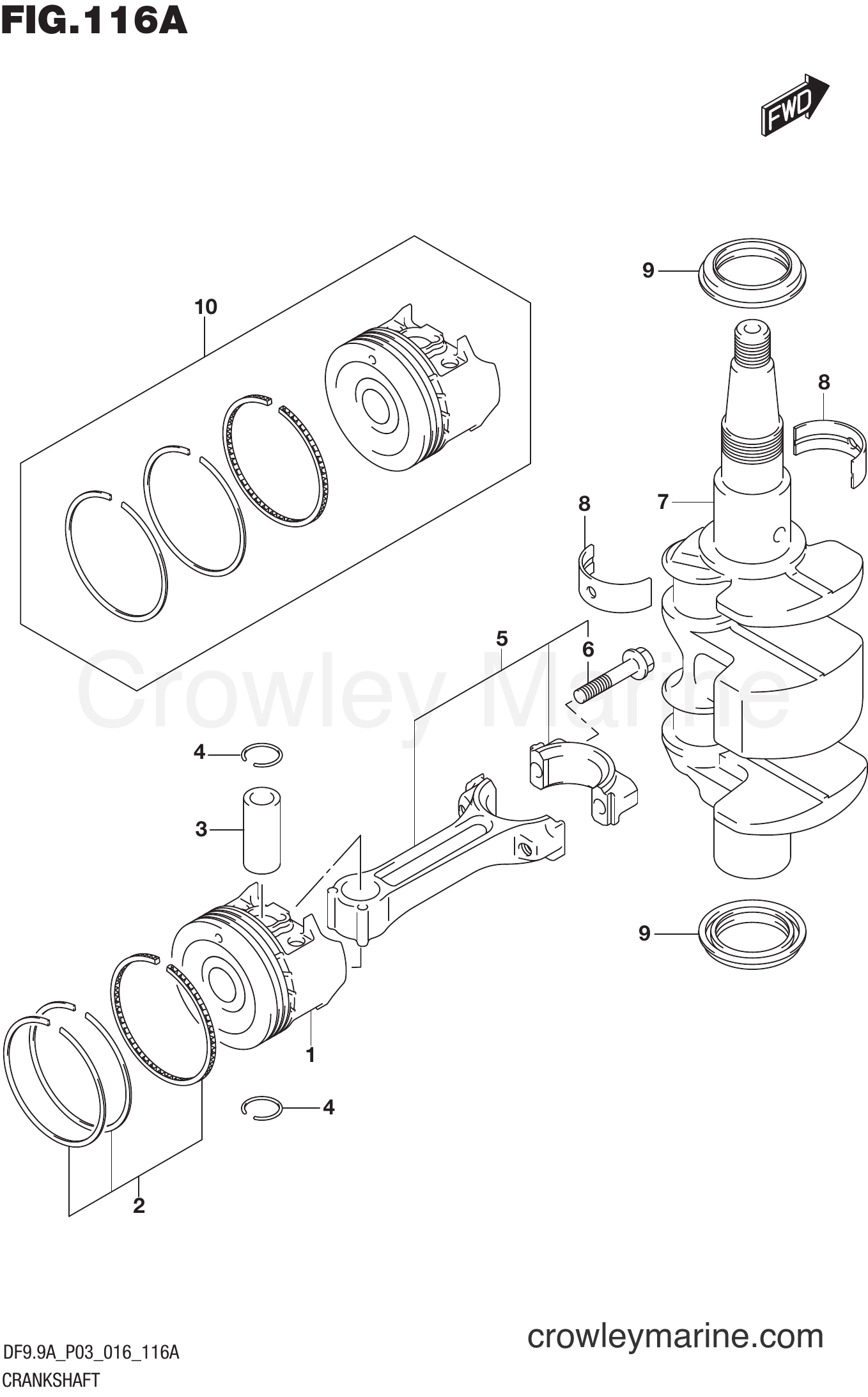

Suzuki Marine DF9.9AR 610001~ - CRANKSHAFT
Change View:
Piston
1
Suzuki Marine
Piston12111-99JL0-0B0
Required: 2
PISTON
Cross Ship
Leaves in 2-5 days
$54.22
$46.09
You save $8.13
More details
RING SET,PISTON
2
Suzuki Marine
RING SET,PISTON12140-99J00
Required: 2
RING SET, PISTON
Cross Ship
Leaves in 2-5 days
$71.69
$60.94
You save $10.75
More details
3
Required: 2
PIN, PISTON
Price unavailable
CONNROD ASSY
5
Suzuki Marine
CONNROD ASSY12160-99JL1
Required: 2
CONNROD ASSY
Cross Ship
Leaves in 2-5 days
$47.68
$40.53
You save $7.15
More details
6
Required: 4
.BOLT, CONNROD
Price unavailable
7
Required: 1
CRANKSHAFT
Price unavailable
BEARING,CRANKSH
8
Suzuki Marine
BEARING,CRANKSH12341-99J00
Required: 4
BEARING, CRANKSHAFT
Cross Ship
Leaves in 2-5 days
$10.28
$8.74
You save $1.54
More details
SEAL,OIL 28.8X4
9
Suzuki Marine
SEAL,OIL 28.8X409283-30075
Required: 2
OIL SEAL (28.8X45.5X6.5)
Cross Ship
Leaves in 2-5 days
$22.08
$18.77
You save $3.31
More details
10
Required: 2
PISTON SET (OS:0.50)
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
