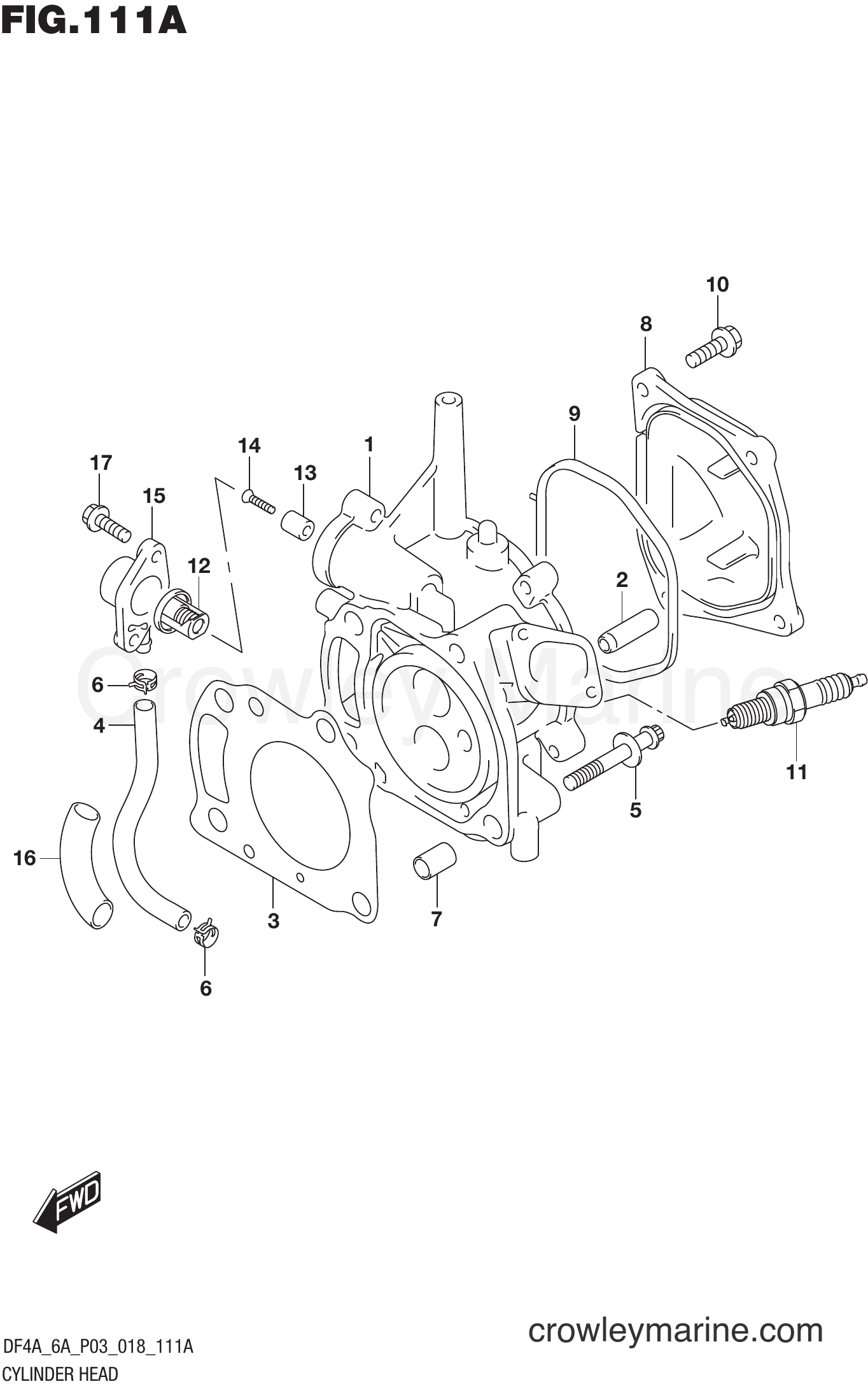

Serial Range Four-Stroke Outboard 6 - DF6A 810001~ CYLINDER HEAD diagram
1
Suzuki Marine
HEAD COMP,CYLIN11110-97L00
Required: 1
HEAD, CYLINDER
$312.19
You save $55.09
2
Suzuki Marine
GUIDE,VALVE(OS:11115-93E00-001
Required: 2
GUIDE, VALVE (OS:0.3)
$22.42
You save $3.96
3
Suzuki Marine
CYLINDER GASKET11141-97L00
Required: 1
GASKET, CYLINDER HEAD
$16.78
You save $2.96
4
Suzuki Marine
HOSE(7X11X600)09352-70119-600
Required: 1
HOSE (7X11X600)
Supersedes: 09352-70113-600
$10.91
You save $1.93
5
Suzuki Marine
BOLT,CYLINDER H11117-91JL0
Required: 4
BOLT, CYLINDER HEAD
$8.05
You save $1.42
$2.81
You save $0.50
$1.83
You save $0.32
8
Suzuki Marine
COVER COMP,CYLI11170-97L00
Required: 1
COVER, CYLINDER HEAD
$14.07
You save $2.48
9
Suzuki Marine
CYLINDER GASKET11189-97L00
Required: 1
GASKET, CYLINDER HEAD COVER
$6.09
You save $1.08
10
Required: 4
BOLT
Price unavailable
11
Suzuki Marine
SPARK PLUG CPR609482-00L04
Required: 1
SPARK PLUG (CPR6EA-9)
In stock
Only 4 remaining
$10.85
You save $1.91
12
Suzuki Marine
THERMOSTAT COMP17670-91J02
Required: 1
THERMOSTAT (50 C)
Supersedes: 17670-91J01
In stock
Only 1 remaining
$36.14
You save $6.38
13
Suzuki Marine
ANODE,PROTECTIO55321-95J00
Required: 1
ANODE, PROTECTION
$9.49
You save $1.68
$2.19
You save $0.39
15
Suzuki Marine
COVER COMP,THER17680-97L00
Required: 1
COVER, THERMOSTAT
$7.51
You save $1.33
16
Suzuki Marine
PROTECTOR(16X1733833-97L40
Required: 1
PROTECTOR, WATER HOSE RETURN
$1.43
You save $0.25
17
Required: 2
BOLT
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
