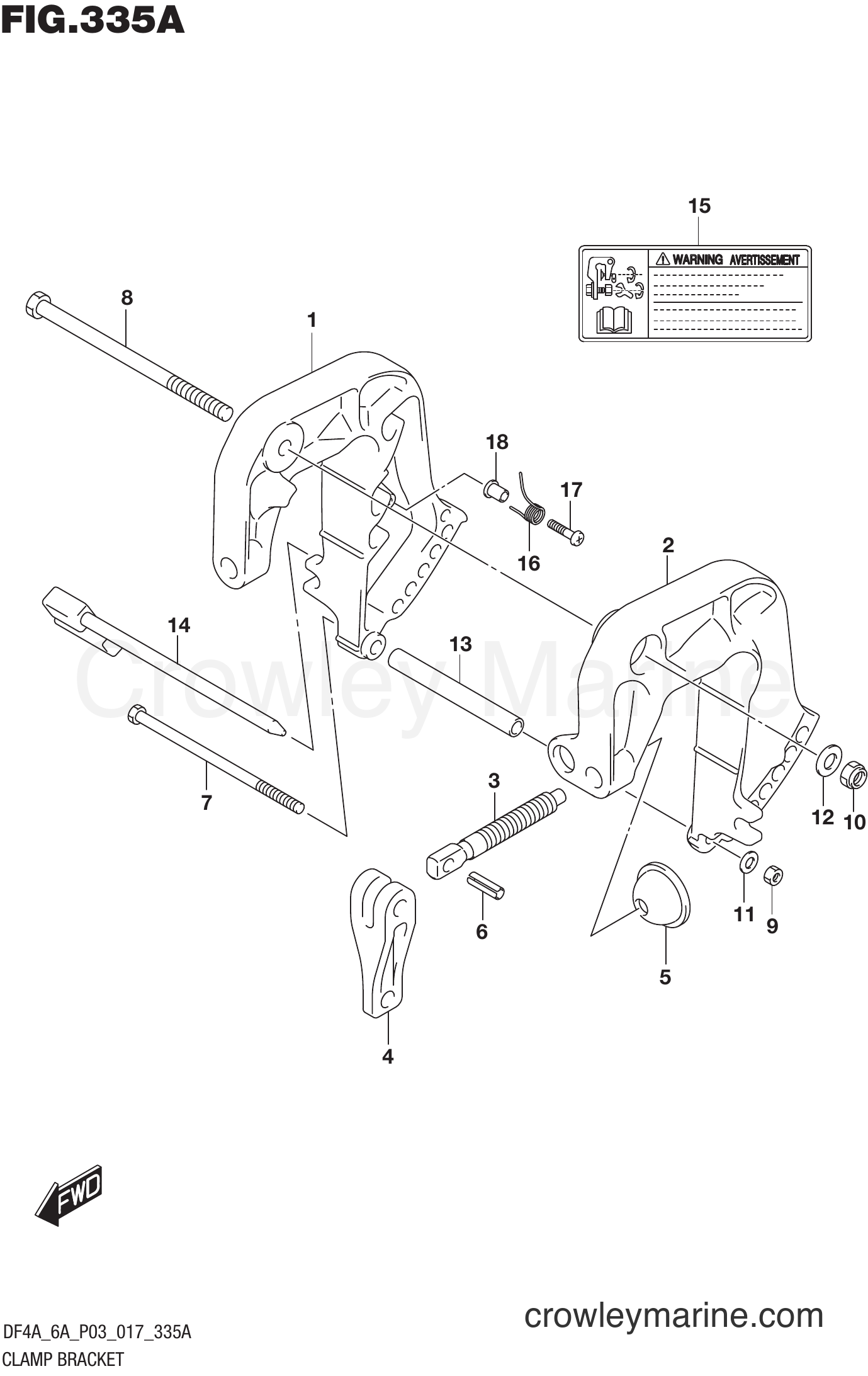

Serial Range Four-Stroke Outboard 6 - DF6A 710001~ CLAMP BRACKET diagram
1
Suzuki Marine
BRACKET,CLAMP S41111-97L00-YAY
Required: 1
BRACKET, CLAMP STBD (BLACK)
$92.95
You save $16.40
2
Suzuki Marine
BRACKET,CLAMP P41121-97L00-YAY
Required: 1
BRACKET, CLAMP PORT (BLACK)
$92.95
You save $16.40
3
Suzuki Marine
SCREW,CLAMP41211-97L00
Required: 2
SCREW, CLAMP
$10.35
You save $1.83
4
Suzuki Marine
HANDLE,CLAMP41212-91J00
Required: 2
HANDLE, CLAMP
$14.39
You save $2.54
5
Suzuki Marine
PLATE,CLAMP41213-94J01
Required: 2
PLATE, CLAMP
In stock
Only 1 remaining
$3.49
You save $0.62
6
Suzuki Marine
PIN,SPRING(6X2509205-06021
Required: 2
SPRING PIN (6X25)
$2.11
You save $0.37
7
Suzuki Marine
BOLT, 6X12009100-06176
Required: 1
BOLT (6X120)
$4.68
You save $0.83
8
Suzuki Marine
BOLT(8X140)09100-08314
Required: 1
BOLT (8X140)
$17.97
You save $3.17
In stock
Only 4 remaining
$1.69
You save $0.30
$4.92
You save $0.87
11
Suzuki Marine
WASHER09160-06082
Required: 1
WASHER (6.5X13X1.0)
In stock
Only 2 remaining
$1.47
You save $0.26
12
Suzuki Marine
WASHER09160-08059
Required: 1
WASHER(8.5X18X1.6)
$1.75
You save $0.31
13
Suzuki Marine
SPACER(6.5X10.509180-06371
Required: 1
SPACER (6.5X10.5X92)
$11.36
You save $2.00
14
Suzuki Marine
PIN COMP,TILT L45420-97L00
Required: 1
PIN, TILT LOCK
$12.54
You save $2.21
15
Required: 1
MARK, CLAMP BRACKET
Price unavailable
$2.21
You save $0.39
17
Suzuki Marine
SCREW(5X20)09125-05143
Required: 1
SCREW (5X20)
$1.97
You save $0.35
$2.14
You save $0.38
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
