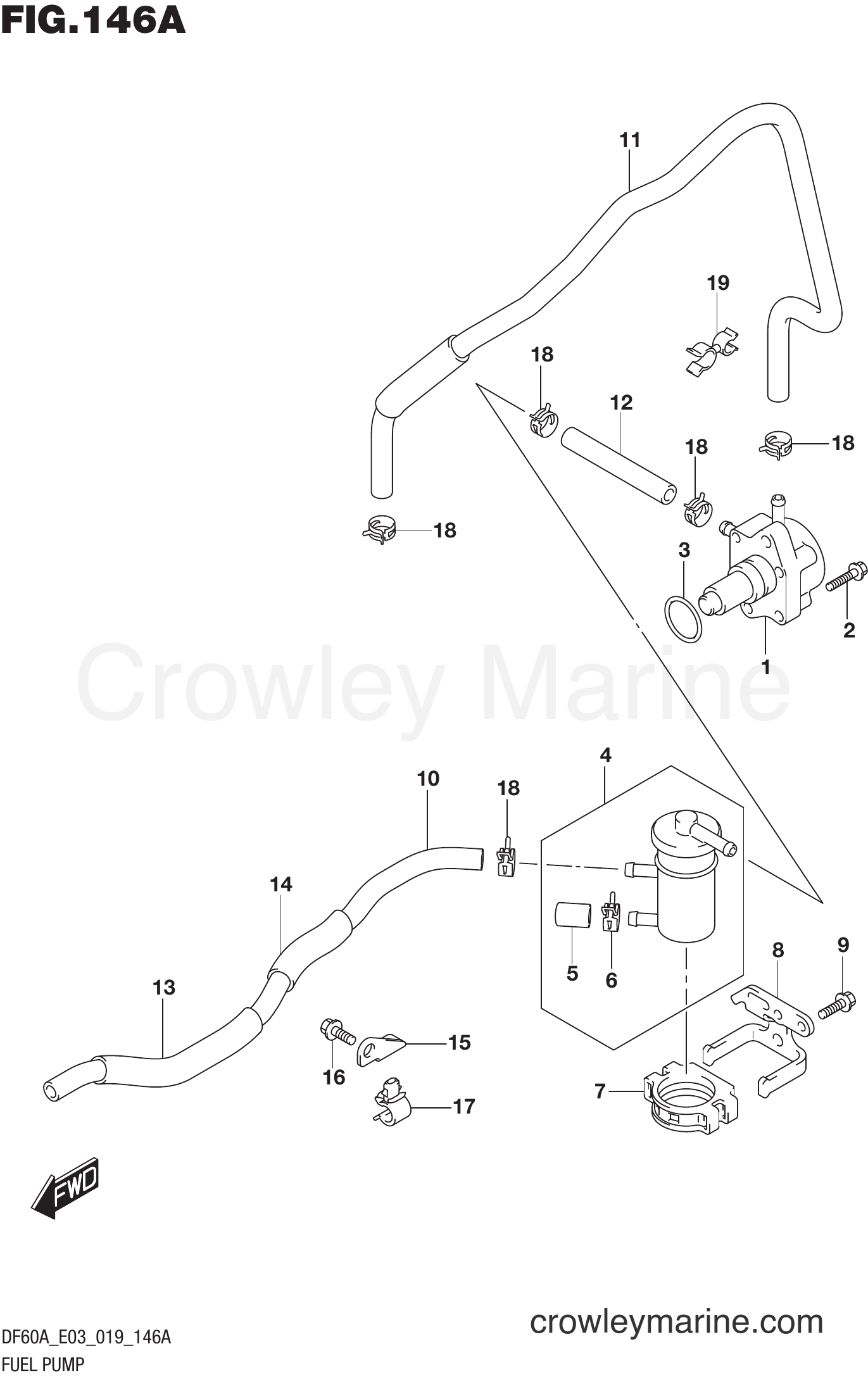

Serial Range Four-Stroke Outboard 50 - DF50AT 910001~ FUEL PUMP diagram
1
Suzuki Marine
PUMP ASSY,FUEL15100-90J11
Required: 1
PUMP ASSY, FUEL
In stock
Only 2 remaining
$156.75
You save $27.66
$1.50
You save $0.27
3
Suzuki Marine
"O"-Ring/Seal (Swivel Bracket)09280-26005
Required: 1
O RING (D:2.4,ID:26.2)
In stock
Only 3 remaining
$2.37
You save $0.42
$14.62
You save $2.58
5
Suzuki Marine
CAP,FUEL FILTER15419-87J00
Required: 1
.CAP, FUEL FILTER
In stock
Only 2 remaining
$7.00
You save $1.23
In stock
5+ in stock
$1.97
You save $0.35
7
Suzuki Marine
CLAMP,FUEL FILT15422-96J01
Required: 1
CLAMP, FILTER
Supersedes: 15422-96J00
$6.05
You save $1.07
8
Suzuki Marine
BRACKET,FUEL FI15421-88L00
Required: 1
BRACKET, FUEL FILTER
$10.89
You save $1.92
$1.78
You save $0.32
10
Suzuki Marine
HOSE,FUEL(JOINT15191-88L20
Required: 1
HOSE, FUEL (JOINT TO FILTER))
$44.77
You save $7.90
11
Suzuki Marine
HOSE, FUEL (PUM15192-88L20
Required: 1
HOSE, FUEL (PUMP TO SEPARATOR
$48.25
You save $8.52
12
Suzuki Marine
HOSE,7X12X8009343-70503-080
Required: 1
HOSE (7X12X80)
$8.79
You save $1.55
13
Required: 1
PROTECTOR, FUEL HOSE NO.1
Price unavailable
14
Required: 1
PROTECTOR, FUEL HOSE NO.2
Price unavailable
15
Suzuki Marine
BRACKET,FUEL HO15197-88L00
Required: 1
BRACKET, FUEL HOSE CLAMP
$4.05
You save $0.72
$1.78
You save $0.32
$2.60
You save $0.46
In stock
5+ in stock
$1.97
You save $0.35
19
Required: 1
CLIP
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
