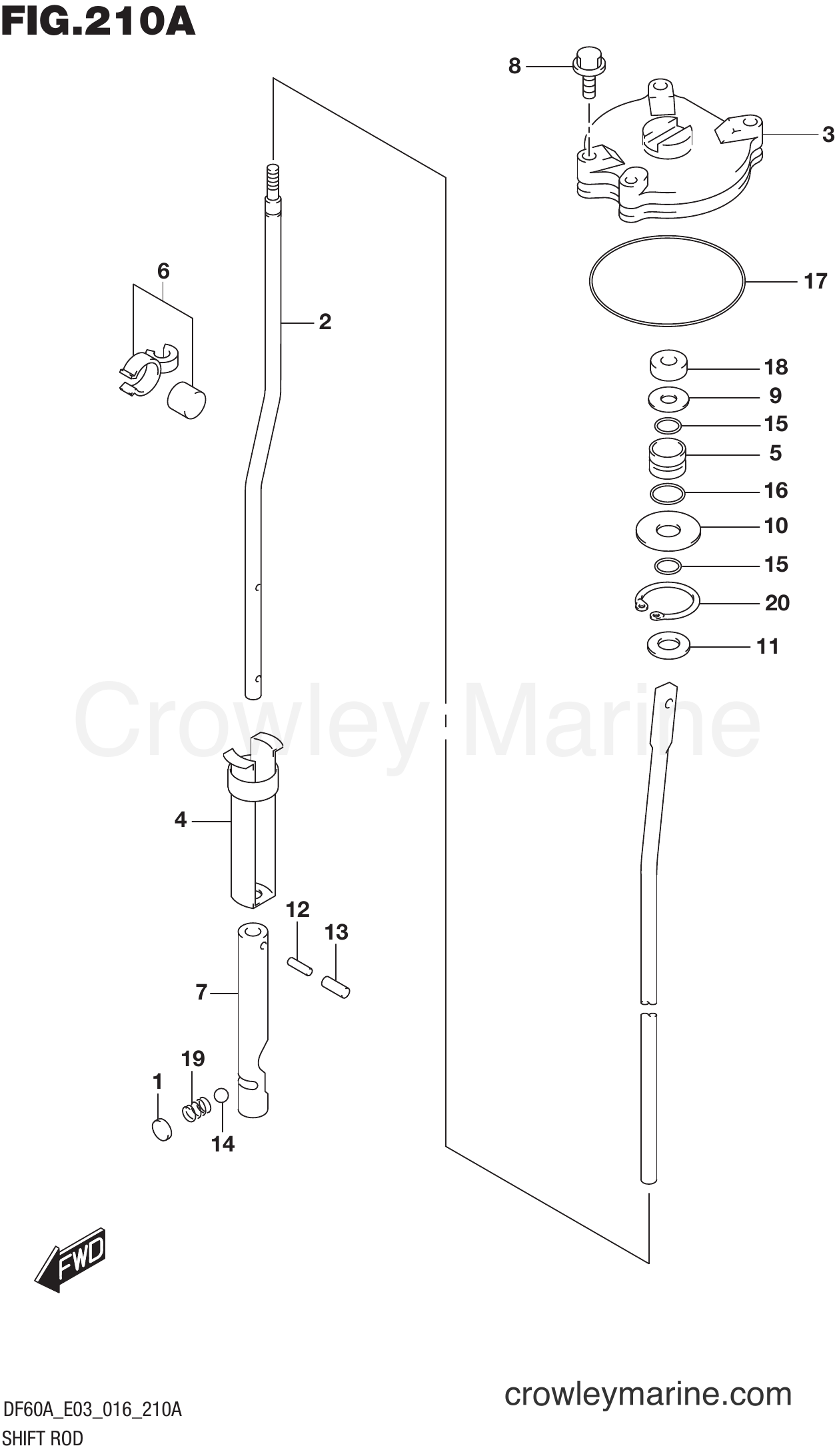

Serial Range Four-Stroke Outboard 50 - DF50AVT 610001~ SHIFT ROD (DF50AVT E03) diagram
1
Suzuki Marine
CLUTCH NOTCH PL21121-93300
Required: 1
PLATE, CLUTCH NOTCH
$1.29
You save $0.32
2
Suzuki Marine
ROD,SHIFT (L)25111-88L30
Required: 1
ROD, SHIFT (L)
$64.66
You save $11.41
3
Suzuki Marine
HOUSING,SHIFT R25141-99E03
Required: 1
HOUSING, SHIFT ROD GUIDE
$33.02
You save $5.83
4
Suzuki Marine
HOLDER,SPRING25205-94501
Required: 1
COLLAR, SHIFT ROD SPRING
$12.53
You save $2.21
5
Suzuki Marine
GUIDE, SHIFT RO25211-94501
Required: 1
GUIDE, SHIFT ROD
$10.18
You save $2.55
$15.71
You save $3.93
$46.33
You save $8.18
-50%
8
Suzuki Marine
BOLT09117-06031
Required: 3
BOLT (6X20)
In stock
Only 1 remaining
$1.97
You save $1.97
9
Suzuki Marine
WASHER09160-09015
Required: 1
WASHER (9X19X1.0)
$2.00
You save $0.50
10
Suzuki Marine
WASHER09160-09010
Required: 1
WASHER (9X30X1.6)
$1.93
You save $0.34
11
Suzuki Marine
WASHER,8.5X18X309160-08122
Required: 1
WASHER (8.5X18X3.20)
$2.47
You save $0.44
12
Suzuki Marine
PIN09205-02006
Required: 2
SPRING PIN (2X12)
In stock
Only 3 remaining
$0.94
You save $0.24
13
Suzuki Marine
Spring Pin09205-03021
Required: 2
SPRING PIN (3.5X12)
$1.00
You save $0.18
In stock
Only 2 remaining
$1.65
You save $0.41
15
Suzuki Marine
"O"-Ring/Seal (Swivel Bracket)09280-08008
Required: 2
O RING (D:3.5,ID:7.8)
$0.94
You save $0.24
16
Suzuki Marine
"O"-Ring/Seal (Swivel Bracket)09280-15003
Required: 1
O RING (D:2.4,ID:14.8)
$1.72
You save $0.43
17
Suzuki Marine
O RING D:3.1 ID09280-69001
Required: 1
O RING (D:3.1,ID:68.5)
In stock
Only 1 remaining
$3.58
You save $0.90
18
Suzuki Marine
DUST SEAL09284-08003
Required: 1
OIL SEAL (8X19X4.5)
$2.98
You save $0.75
$1.34
You save $0.33
$2.39
You save $0.60
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
