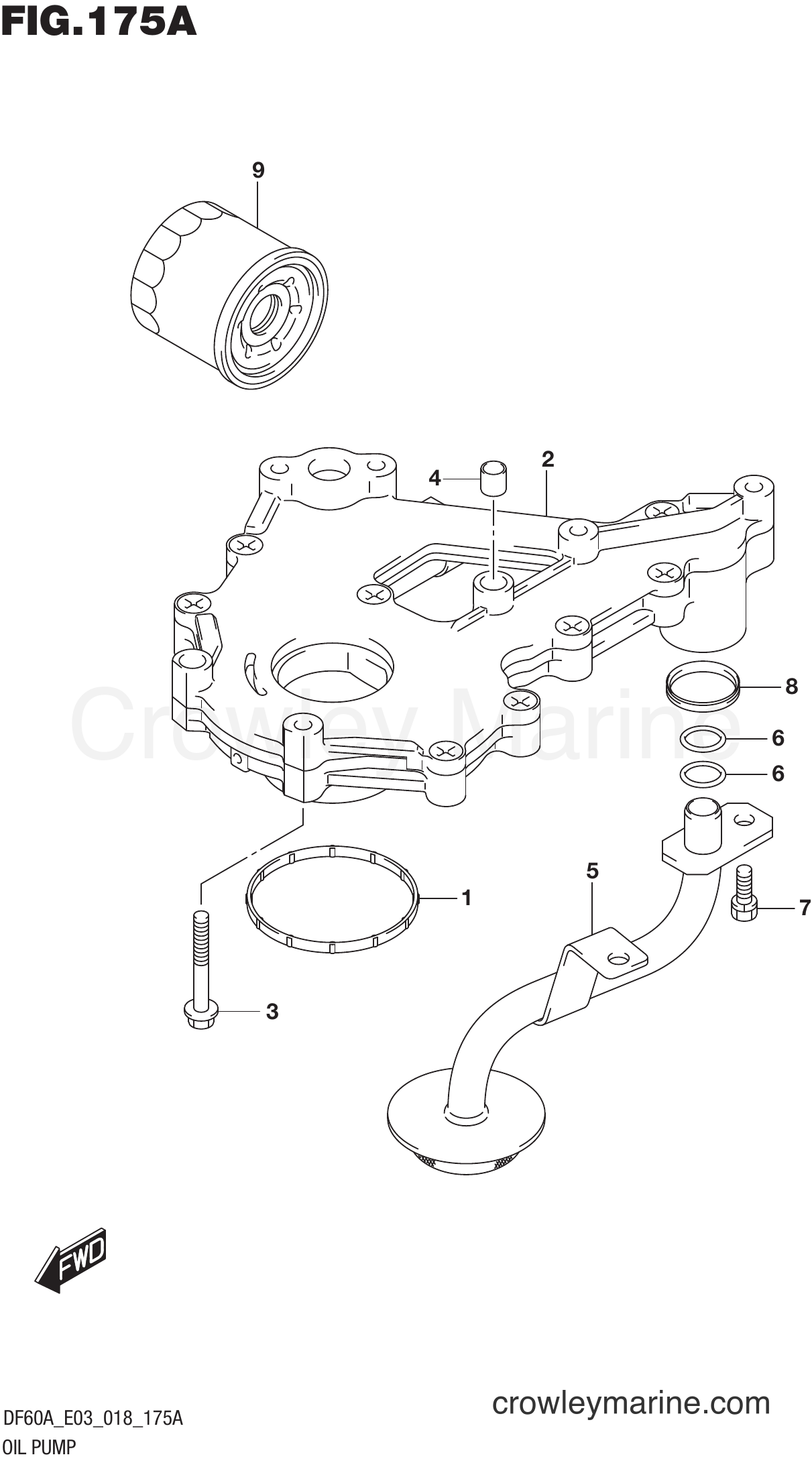

Serial Range Four-Stroke Outboard 40 - DF40A 810001~ OIL PUMP diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

Change View:

Suzuki Marine

GASKET,UNDER OI11433-88L00

Required: 1

GASKET, UNDER OIL SEAL

~~$12.98~~

$11.03

You save $1.95

More details

Suzuki Marine

PUMP ASSY,OIL16400-88L00

Required: 1

PUMP ASSY, OIL

~~$287.99~~

$244.79

You save $43.20

BOLT

~~$2.79~~

$2.37

You save $0.42

~~$1.99~~

$1.69

You save $0.30

More details

Suzuki Marine

Oil Strainer16520-88L00

Required: 1

STRAINER, OIL PUMP

~~$46.74~~

$39.73

You save $7.01

More details

Suzuki Marine

O RING,CYLINDER09280-12008

Required: 2

O RING (D:2.4,ID:12.3)

~~$3.36~~

$2.86

You save $0.50

BOLT

~~$2.72~~

$2.31

You save $0.41

More details

Suzuki Marine

SEAL,ENGINE HOL16519-87L00

Required: 1

SEAL, ENGINE HOLDER

~~$6.17~~

$5.24

You save $0.93

More details

Suzuki Marine

FILTER ASSY,OIL16510-87J02

Required: 1

FILTER ASSY, OIL

Supersedes: 16510-87J00

In stock

Only 2 remaining

~~$15.49~~

$13.17

You save $2.32

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

Flat $9.95 Shipping on ALL parts orders

Serial Range Four-Stroke Outboard 40 - DF40A 810001~ OIL PUMP diagram
