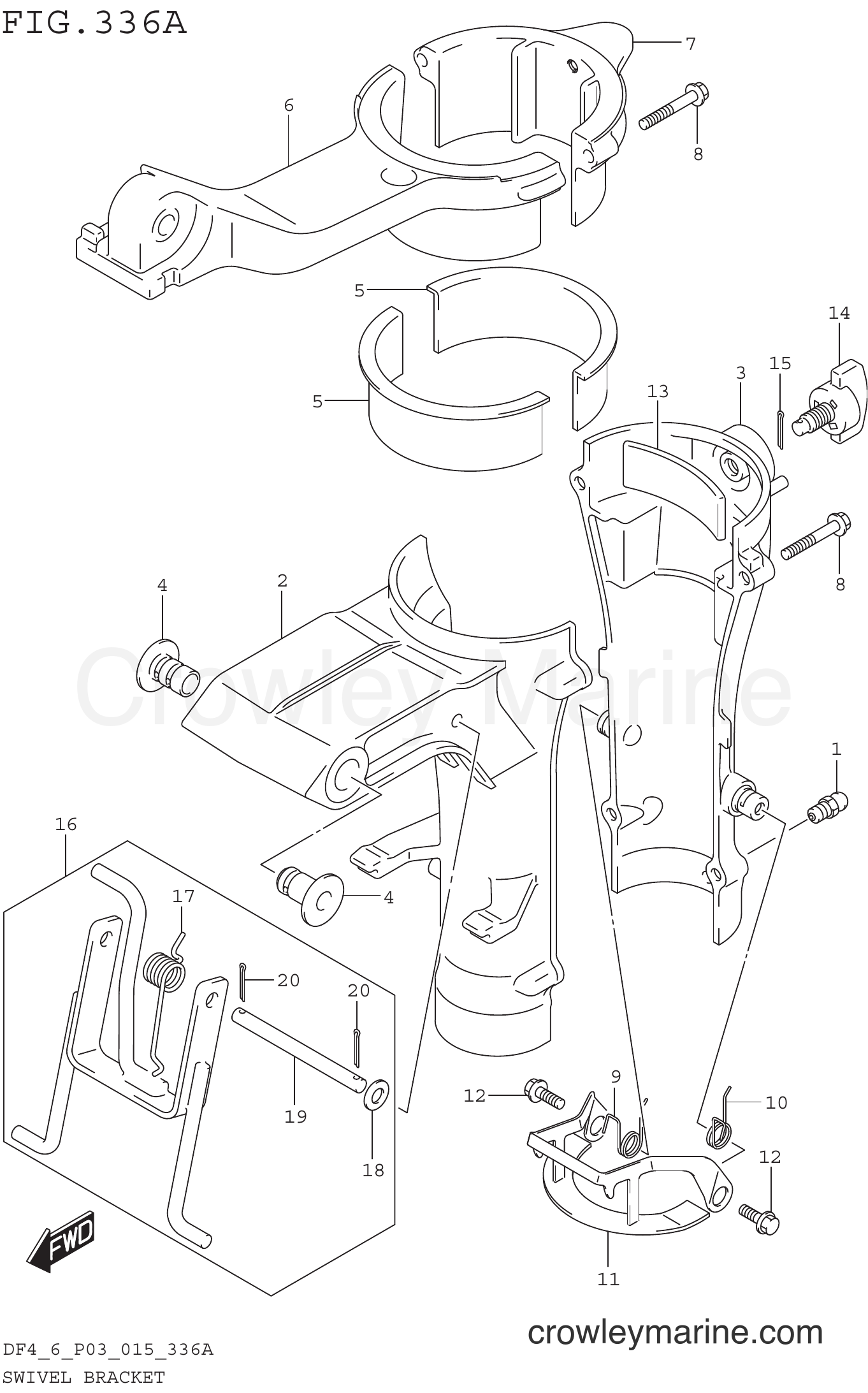

Serial Range Four-Stroke Outboard 6 - DF6 510001~ SWIVEL BRACKET diagram
1
Suzuki Marine
Grease Nipple22511-99011
Required: 1
NIPPLE, GREASE
In stock
5+ in stock
$3.17
You save $0.56
2
Suzuki Marine
Swivel Bracket43111-91J20-0EP
Required: 1
BRACKET, SWIVEL (BLACK)
In stock
Only 1 remaining
$236.73
You save $41.78
3
Suzuki Marine
COVER,SWIVEL BR43121-91J31-0EP
Required: 1
COVER, SWIVEL BRACKET (BLACK)
$176.61
You save $31.17
4
Suzuki Marine
BUSH,CLAMP BRAC43211-91J00
Required: 2
BUSH, CLAMP BRKT BOLT
$8.07
You save $1.43
5
Suzuki Marine
BUSH,STEERING U43711-91J01
Required: 2
BUSH, STEERING UPPER
$16.74
You save $2.95
6
Suzuki Marine
BRACKET,STEERIN43751-91J20-0EP
Required: 1
BRACKET, STEERING (BLACK)
$190.49
You save $33.62
7
Suzuki Marine
STEERING COVER43752-91J20-0EP
Required: 1
COVER, STEERING BRKT (BLACK)
$24.11
You save $4.26
$2.80
You save $0.49
9
Suzuki Marine
SPRING,REVERSE45211-98602
Required: 1
SPRING, REVERSE LOCK ARM STBD
$2.60
You save $0.46
10
Suzuki Marine
SPRING,REVERSE45212-98602
Required: 1
SPRING, REVERSE LOCK ARM PORT
$3.13
You save $0.55
11
Suzuki Marine
ARM,REVERSE LOC45230-91JL0
Required: 1
ARM, REVERSE LOCK
$21.50
You save $3.80
$2.62
You save $0.46
13
Suzuki Marine
ADJUSTER,STEERI43411-91J10
Required: 1
ADJUSTER, STEERING
$11.64
You save $2.05
14
Suzuki Marine
KNOB,STEERING A43410-91J21
Required: 1
KNOB, STEERING ADJUSTER
Supersedes: 43410-91J20
$13.55
You save $2.39
In stock
Only 4 remaining
$1.61
You save $0.28
16
Suzuki Marine
ARM ASSY,SHALLO45700-91JL0
Required: 1
ARM ASSY, SHALLOW WATER DRIVE
$63.02
You save $11.12
17
Suzuki Marine
SPRING,SHALLOW45722-91J00
Required: 1
.SPRING, SHALLOW WATER DRIVE
$5.77
You save $1.02
18
Suzuki Marine
WASHER09160-08082
Required: 1
.WASHER (8.5X16X1.2)
$1.68
You save $0.30
$4.00
You save $0.71
In stock
Only 4 remaining
$1.61
You save $0.28
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
