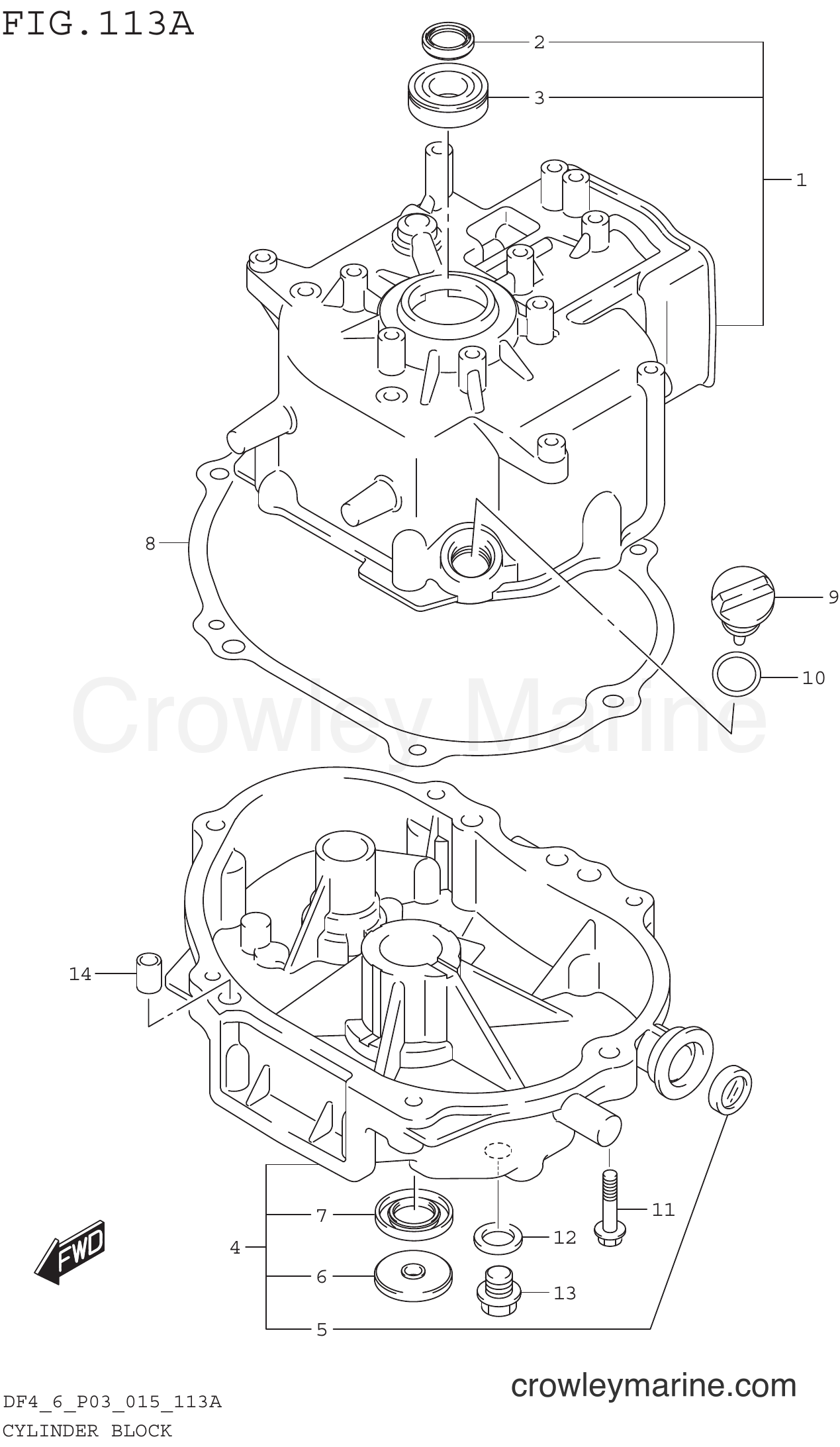

Serial Range Four-Stroke Outboard 4 - DF4 510001~ CYLINDER BLOCK diagram
1
Suzuki Marine
BLOCK ASSY,CYLI11200-91J20
Required: 1
BLOCK ASSY, CYLINDER
$453.54
You save $80.04
2
Suzuki Marine
SEAL,DRIVE SHAF09283-25098
Required: 1
.OIL SEAL (25X35X5)
$7.29
You save $1.29
3
Suzuki Marine
B1 25X52X15 BEA09262-25003
Required: 1
.BEARING (25X52X15)
$25.70
You save $4.53
4
Suzuki Marine
CASE ASSY,CRANK11300-91J20
Required: 1
CASE ASSY, CRANKSHAFT
$295.10
You save $52.08
5
Suzuki Marine
LENS,OIL LEVEL11971-91J02
Required: 1
.LENS, OIL LEVEL FILTER
Supersedes: 11971-91J01
$11.05
You save $1.95
6
Suzuki Marine
Oil Seal09283-10009
Required: 1
.OIL SEAL (10X45X5)
$6.05
You save $1.07
7
Suzuki Marine
Oil Seal09283-25076
Required: 1
.OIL SEAL (25X45X5)
In stock
Only 1 remaining
$10.70
You save $1.89
8
Suzuki Marine
GASKET,CRANKCAS11351-91J00
Required: 1
GASKET, CRANKCASE
$11.41
You save $2.01
9
Suzuki Marine
GAUGE,ENGINE OI11381-91J10
Required: 1
GAUGE, OIL LEVEL (YELLOW)
$8.93
You save $1.58
10
Suzuki Marine
O-RING D:2.4 ID09280-15007
Required: 1
O RING (D:2.4,ID:15.8)
In stock
Only 2 remaining
$1.76
You save $0.31
$2.79
You save $0.49
12
Suzuki Marine
GASKET, DRAIN P09168-10022
Required: 1
GASKET (10X17X1.5)
In stock
5+ in stock
$1.50
You save $0.27
13
Suzuki Marine
PLUG,DRAIN,10X709248-10008
Required: 1
PLUG (10X7.5)
In stock
Only 3 remaining
$6.71
You save $1.19
$1.69
You save $0.30
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
