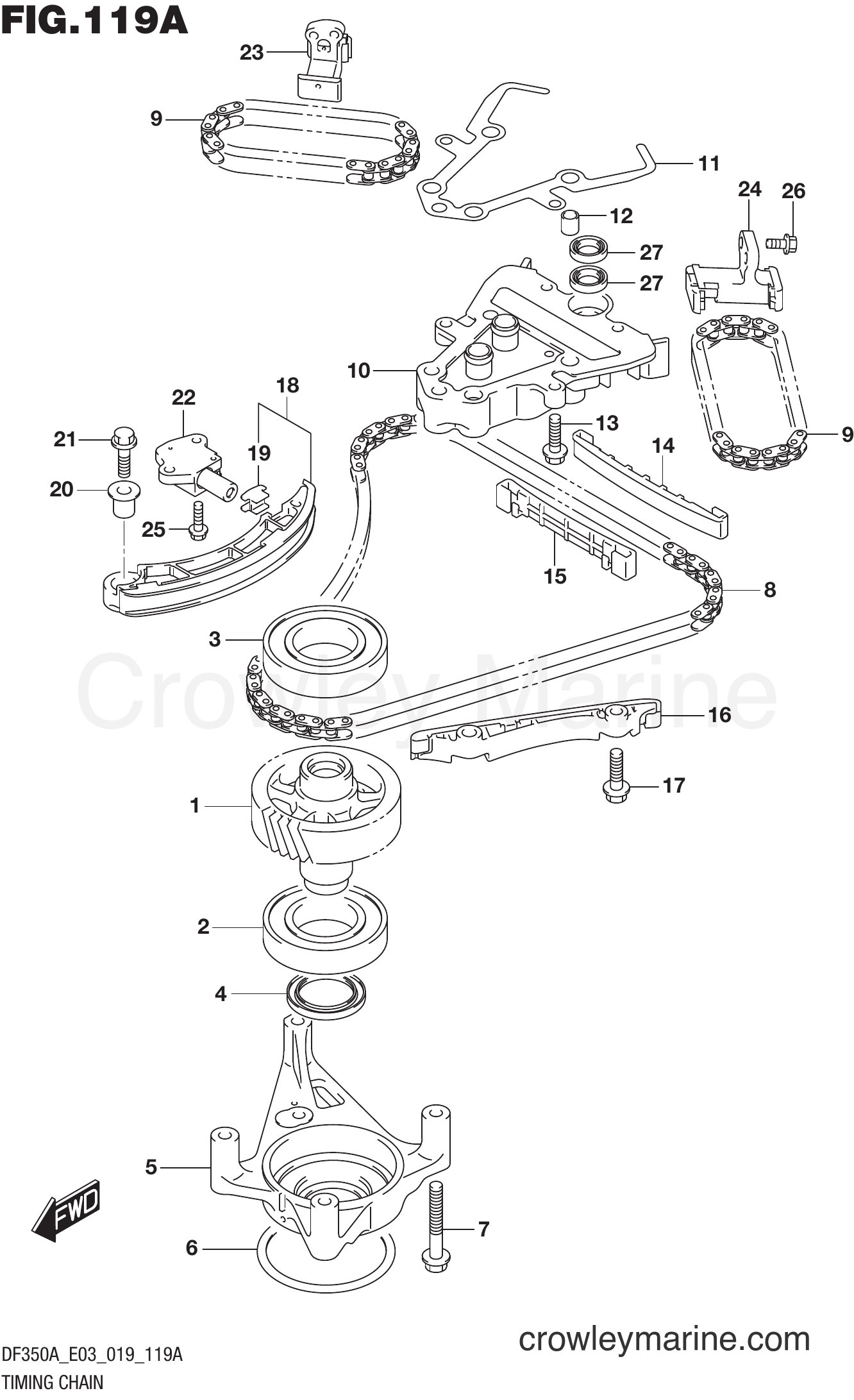

Serial Range Four-Stroke Outboard 350 - DF350A 910001~ TIMING CHAIN diagram
1
Suzuki Marine
Driven Gear12730-98J02
Required: 1
GEAR, DRIVEN (NT:40)
$221.95
You save $56.02
2
Suzuki Marine
BEARING,40X80X109262-40021
Required: 1
BEARING (40X80X18)
Supersedes: 09262-40018
$106.95
You save $18.74
3
Suzuki Marine
BEARING,40X80X109262-40017
Required: 1
BEARING (40X80X18)
$100.68
You save $17.77
4
Suzuki Marine
Oil Seal09283-32044
Required: 1
OIL SEAL (32X47X6)
In stock
Only 1 remaining
$18.42
You save $4.60
5
Suzuki Marine
HOLDER,DRIVEN G12734-98L00
Required: 1
HOLDER, DRIVEN GEAR
$70.23
You save $12.39
6
Suzuki Marine
O-RING,HOLDER(I09280-70012
Required: 1
O RING (D:5.7,ID:69.6)
$17.38
You save $3.07
$3.20
You save $0.57
8
Suzuki Marine
CHAIN COMP,TIMI12761-98L00
Required: 1
CHAIN, TIMING 1ST
$98.28
You save $17.34
9
Suzuki Marine
CHAIN COMP,TIMI12762-93J00
Required: 2
CHAIN, TIMING 2ND
$40.07
You save $7.07
10
Suzuki Marine
BASE,TIMING CHA12770-98L00
Required: 1
BASE, TIMING CHAIN GUIDE NO.1
$115.94
You save $20.46
11
Suzuki Marine
GASKET,TIMING C12778-98L00
Required: 1
GASKET, GUIDE BASE
$11.57
You save $2.04
$2.37
You save $0.42
$3.15
You save $0.56
-50%
14
Suzuki Marine
SHOE,TIMING CHA12771-93J00
Required: 1
SHOE, TIMING CHAIN UPPER
In stock
Only 1 remaining
$12.83
You save $12.83
-50%
15
Suzuki Marine
SHOE,TIMING CHA12775-93J00
Required: 1
SHOE, TIMING CHAIN LOWER
In stock
Only 1 remaining
$12.83
You save $12.83
16
Suzuki Marine
GUIDE,TIMING CH12772-98L00
Required: 1
GUIDE, TIMING CHAIN NO.2
$59.67
You save $10.53
$3.15
You save $0.56
-50%
18
Suzuki Marine
TENSIONER ASSY,12810-93J00
Required: 1
TENSIONER ASSY, TIMING CHAIN
In stock
Only 1 remaining
$39.96
You save $39.96
19
Suzuki Marine
ROD,TIMING CHAI12813-73G00
Required: 1
.PAD, TIMING CHAIN TENSIONER
$3.87
You save $0.68
20
Suzuki Marine
SPACER,TIMING C12812-90J00
Required: 1
SPACER, TIMING CHAIN TENSIONE
$6.71
You save $1.19
$3.15
You save $0.56
22
Suzuki Marine
ADJUSTER ASSY,T12831-93J01
Required: 1
ADJUSTER ASSY, TENSIONER
$95.07
You save $16.78
23
Suzuki Marine
TENSIONER ASSY,12832-93J00
Required: 1
TENSIONER ASSY, STBD
$133.12
You save $23.49
24
Suzuki Marine
TENSIONER ASSY,12833-93J00
Required: 1
TENSIONER ASSY, PORT
$137.62
You save $24.28
$2.01
You save $0.36
$2.01
You save $0.36
27
Suzuki Marine
SEAL,OIL(16.5X209282-17013
Required: 2
SEAL (16.5X28X6)
Supersedes: 09282-17011
$7.06
You save $1.25
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
