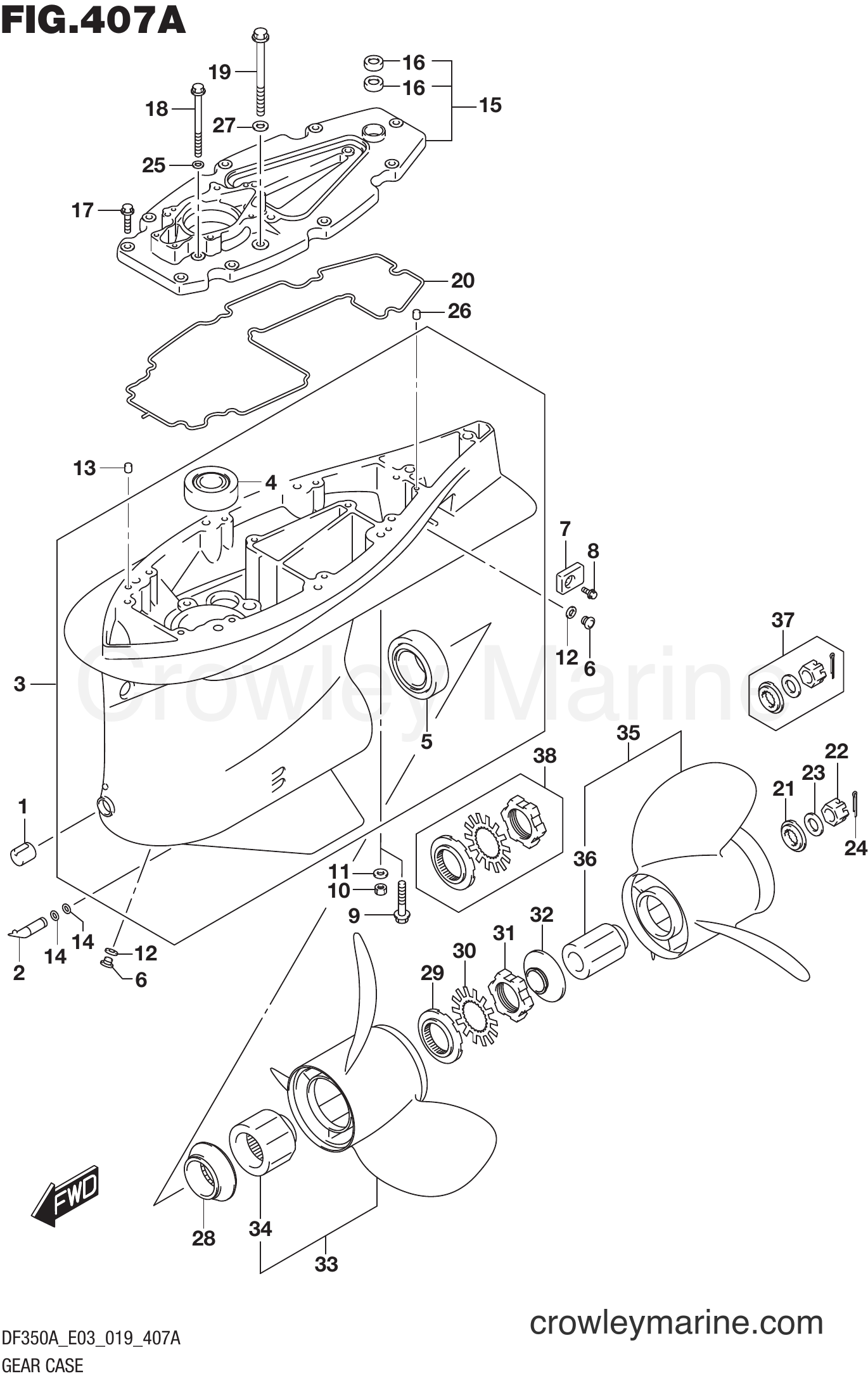

Serial Range Four-Stroke Outboard 350 - DF350A 910001~ GEAR CASE diagram
-50%
1
Suzuki Marine
WATER FILTER17631-98L03
Required: 1
FILTER, WATER
Supersedes: 17631-98L02
In stock
Only 1 remaining
$7.09
You save $7.09
-50%
2
Suzuki Marine
FILTER,SUB WATE17635-98L01
Required: 2
FILTER, SUB WATER
Supersedes: 17635-98L00
In stock
Only 1 remaining
$10.73
You save $10.73
3
Suzuki Marine
CASE SET,GEAR55100-98851-YAY
Required: 1
CASE SET, GEAR (BLACK)
Supersedes: 55100-98850-YAY
$1183.96
You save $208.93
3
Suzuki Marine
CASE SET,GEAR55100-98851-Y5S
Required: 1
CASE SET, GEAR (WHITE)
Supersedes: 55100-98850-Y5S
$1183.96
You save $208.93
4
Suzuki Marine
BEARING ASSY,C57710-98L00
Required: 1
.BEARING ASSY, CONTRA PINION
$72.53
You save $12.80
5
Suzuki Marine
RT 50X90X32 BEA09265-50001
Required: 1
.BEARING (50X90X32)
$143.07
You save $25.25
In stock
Only 3 remaining
$11.53
You save $2.88
7
Suzuki Marine
ANODE,PROTECTIO55321-93J50
Required: 2
ANODE, PROTECTION
Supersedes: 55321-93J01
In stock
Only 4 remaining
$7.54
You save $1.88
In stock
Only 2 remaining
$1.58
You save $0.40
9
Suzuki Marine
BOLT,10X5509116-10150
Required: 6
BOLT (10X55)
In stock
Only 3 remaining
$15.27
You save $3.82
$1.96
You save $0.49
11
Suzuki Marine
WASHER,10.5X19X09160-10141
Required: 6
WASHER (10.5X19X2)
$3.49
You save $0.62
12
Suzuki Marine
GASKET,DRAIN PL09168-10038
Required: 3
GASKET (9.5X16.5X2)
Supersedes: 09168-10034
In stock
5+ in stock
$2.14
You save $0.54
13
Suzuki Marine
PIN09202-08006
Required: 2
PIN (8X12)
$2.61
You save $0.46
-50%
14
Suzuki Marine
O RING D:1.5 ID09280-10012
Required: 2
O RING (D:1.5,ID:10)
In stock
Only 2 remaining
$1.20
You save $1.20
15
Suzuki Marine
HOUSING COMP,DR56130-98L12
Required: 1
HOUSING, DRIVE SFT BRG
$385.36
You save $68.01
16
Suzuki Marine
Oil Seal09282-15010
Required: 2
.OIL SEAL (14.7X25X6.5)
$4.87
You save $0.86
17
Suzuki Marine
BOLT29116-93J10
Required: 11
BOLT, DRIVE SHAFT BRG HOUSIN
$2.58
You save $0.64
18
Suzuki Marine
BOLT(8X105)09103-08552
Required: 2
BOLT (8X105)
$12.13
You save $2.14
19
Suzuki Marine
BOLT(10X107)09103-10461
Required: 3
BOLT (10X107)
$18.98
You save $3.35
20
Suzuki Marine
SEAL,DRIVE SHAF55122-98L00
Required: 1
SEAL, DRIVE SHAFT BRG HSG
$55.61
You save $9.81
21
Suzuki Marine
SPACER,REAR PRO58641-98L10
Required: 1
SPACER, REAR PROPELLER NUT
Supersedes: 58641-98L00
$23.40
You save $4.13
$9.18
You save $2.29
23
Suzuki Marine
WASHER 18.5X32X09160-18019
Required: 1
WASHER (18.5X32X2.5)
$2.13
You save $0.38
In stock
Only 3 remaining
$2.34
You save $0.58
$3.86
You save $0.68
26
Suzuki Marine
PIN09202-06031
Required: 1
PIN (6X12)
$1.84
You save $0.46
$5.92
You save $1.05
-50%
28
Suzuki Marine
STOPPER,FRONT P58531-98L00
Required: 1
STOPPER, FRONT PROPELLER BUSH
In stock
Only 1 remaining
$33.36
You save $33.36
-50%
29
Suzuki Marine
SPACER,FRONT PR58541-98L10
Required: 1
SPACER, FRONT PROPELLER NUT
Supersedes: 58541-98L00
In stock
Only 1 remaining
$29.16
You save $29.16
30
Suzuki Marine
STOPPER,FRONT P58551-98L00
Required: 1
STOPPER, FRONT PROPELLER NUT
$6.05
You save $1.51
31
Suzuki Marine
NUT,FRONT PROPE58561-98L01
Required: 1
NUT, FRONT PROPELLER
Supersedes: 58561-98L00
$120.33
You save $21.23
32
Suzuki Marine
STOPPER,REAR PR58631-98L00
Required: 1
STOPPER, REAR PROPELLER BUSH
$41.71
You save $7.36
33
Required: 1
PROPELLER, FR (3X15-1/2X21)
Price unavailable
33
Required: 1
PROPELLER, FR (3X15-1/2X18)
Price unavailable
33
Required: 1
PROPELLER, FR (3X15-1/2X12)
Price unavailable
33
Required: 1
PROPELLER, FR (3X15-1/2X15)
Price unavailable
33
Required: 1
PROPELLER, FR (3X15-1/2X16.5)
Price unavailable
33
Required: 1
PROPELLER, FR (3X15-1/2X22.5)
Price unavailable
33
Required: 1
PROPELLER, FR (3X15-1/2X24)
Price unavailable
33
Required: 1
PROPELLER, FR (3X15-1/2X25.5)
Price unavailable
33
Required: 1
PROPELLER, FR (3X15-1/2X27)
Price unavailable
33
Required: 1
PROPELLER, FR (3X15-1/2X28.5)
Price unavailable
33
Required: 1
PROPELLER, FR (3X15-1/2X19.5)
Price unavailable
33
Required: 1
PROPELLER, FR (3X15-1/2X30)
Price unavailable
33
Required: 1
PROPELLER, FR (3X15-1/2X31.5)
Price unavailable
34
Suzuki Marine
BUSH COMP,FRONT58520-98L00
Required: 1
.BUSH, FRONT PROPELLER
$205.25
You save $36.22
35
Required: 1
PROPELLER, RR (3X15-1/2X21)
Price unavailable
35
Required: 1
PROPELLER, RR (3X15-1/2X18)
Price unavailable
35
Required: 1
PROPELLER, RR (3X15-1/2X12)
Price unavailable
35
Required: 1
PROPELLER, RR (3X15-1/2X15)
Price unavailable
35
Required: 1
PROPELLER, RR (3X15-1/2X16.5)
Price unavailable
35
Required: 1
PROPELLER, RR (3X15-1/2X22.5)
Price unavailable
35
Required: 1
PROPELLER, RR (3X15-1/2X24)
Price unavailable
35
Required: 1
PROPELLER, RR (3X15-1/2X25.5)
Price unavailable
35
Required: 1
PROPELLER, RR (3X15-1/2X27)
Price unavailable
35
Required: 1
PROPELLER, RR (3X15-1/2X28.5)
Price unavailable
35
Required: 1
PROPELLER, RR (3X15-1/2X19.5)
Price unavailable
35
Required: 1
PROPELLER, RR (3X15-1/2X30)
Price unavailable
35
Required: 1
PROPELLER, RR (3X15-1/2X31.5)
Price unavailable
36
Suzuki Marine
BUSH COMP,REAR58620-98L00
Required: 1
.BUSH, REAR PROPELLER
$184.73
You save $32.60
37
Suzuki Marine
KIT,REAR PROPEL58640-98L10
Required: 1
KIT, REAR PROPELLER NUT
Supersedes: 58640-98L00
$26.33
You save $4.65
38
Suzuki Marine
KIT,FRONT PROPE58540-98L01
Required: 1
KIT, FRONT PROPELLER NUT
Supersedes: 58540-98L00
$117.50
You save $20.74
39
Suzuki Marine
KIT,GEAR CASE S25700-98L01
Required: 1
KIT, GEAR CASE SEALING
$73.24
You save $12.93
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
