All diagrams for this model

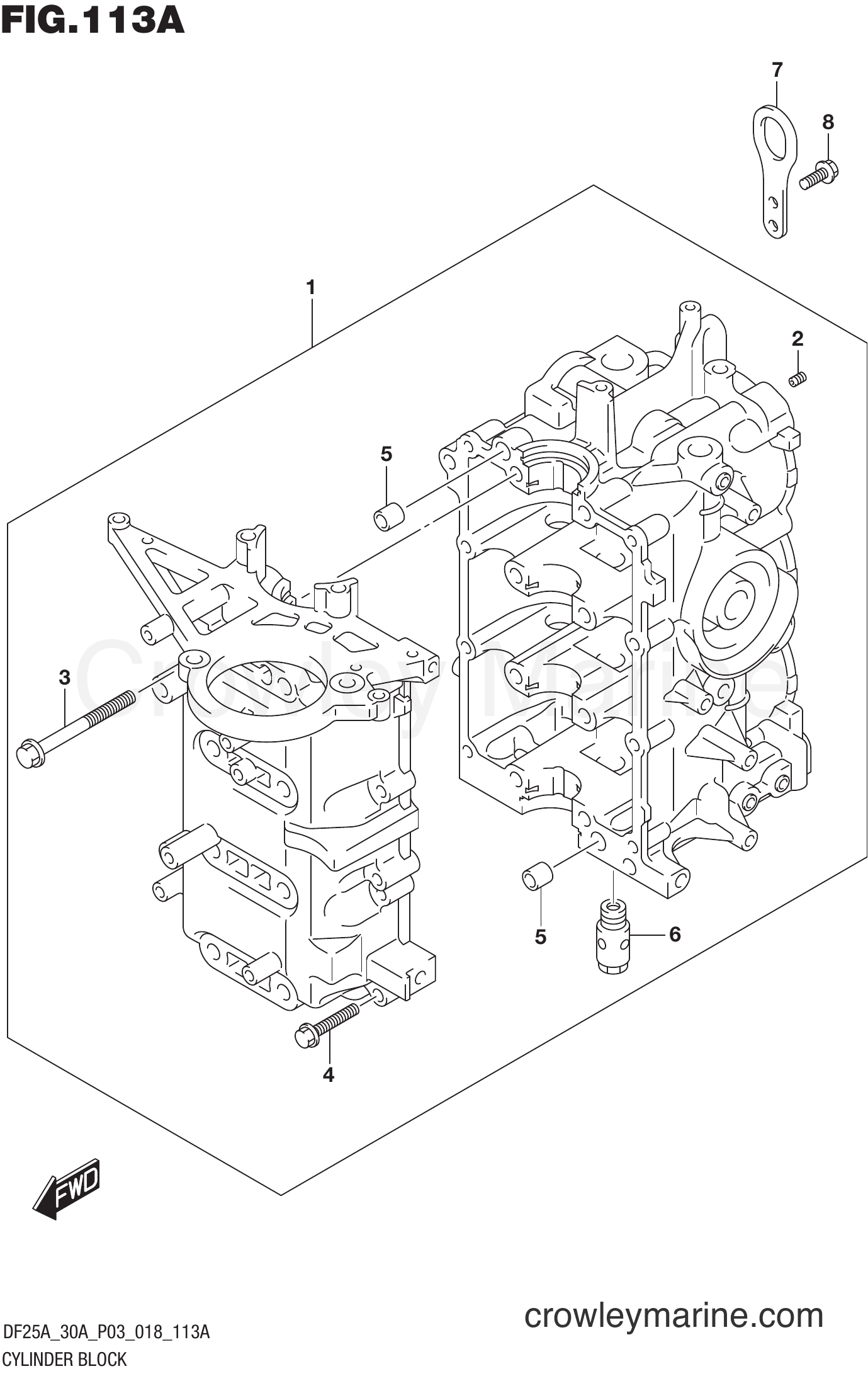

Serial Range Four-Stroke Outboard 25 - DF25ATH 810001~ CYLINDER BLOCK diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Suzuki Marine DF25ATH 810001~ - CYLINDER BLOCK
Change View:
BLOCK SET,CYLIN
1
Suzuki Marine
BLOCK SET,CYLIN11301-94L20
Required: 1
BLOCK SET, CYLINDER
Supersedes: 11301-94L00
Cross Ship
Leaves in 2-5 days
$1811.24
$1539.55
You save $271.69
More details
PLUG,OIL VENTUR
2
Suzuki Marine
PLUG,OIL VENTUR11112-84400
Required: 1
.PLUG, OIL VENTURI
Cross Ship
Leaves in 2-5 days
$4.02
$3.42
You save $0.60
More details
BOLT, 8 X 77
3
Suzuki Marine
BOLT, 8 X 7709119-08L01
Required: 8
.BOLT (8X77)
Cross Ship
Leaves in 2-5 days
$6.37
$5.41
You save $0.96
More details
BOLT
4
Suzuki Marine
BOLT01550-06357
Required: 8
.BOLT
Cross Ship
Leaves in 2-5 days
$3.43
$2.92
You save $0.51
More details
11 X 12 DOWEL P
5
Suzuki Marine
11 X 12 DOWEL P04211-11129
Required: 2
.PIN
Cross Ship
Leaves in 2-5 days
$2.15
$1.83
You save $0.32
More details
REGULATOR ASSY,
6
Suzuki Marine
REGULATOR ASSY,16440-11D00
Required: 1
.REGULATOR, ENGINE OIL (6.5K)
Cross Ship
Leaves in 2-5 days
$63.81
$54.24
You save $9.57
More details
HOOK,ENGINE
7
Suzuki Marine
HOOK,ENGINE11291-94L00
Required: 1
HOOK, ENGINE
Cross Ship
Leaves in 2-5 days
$10.74
$9.13
You save $1.61
More details
BOLT
8
Suzuki Marine
BOLT01550-0820C
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$2.04
$1.73
You save $0.31
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
