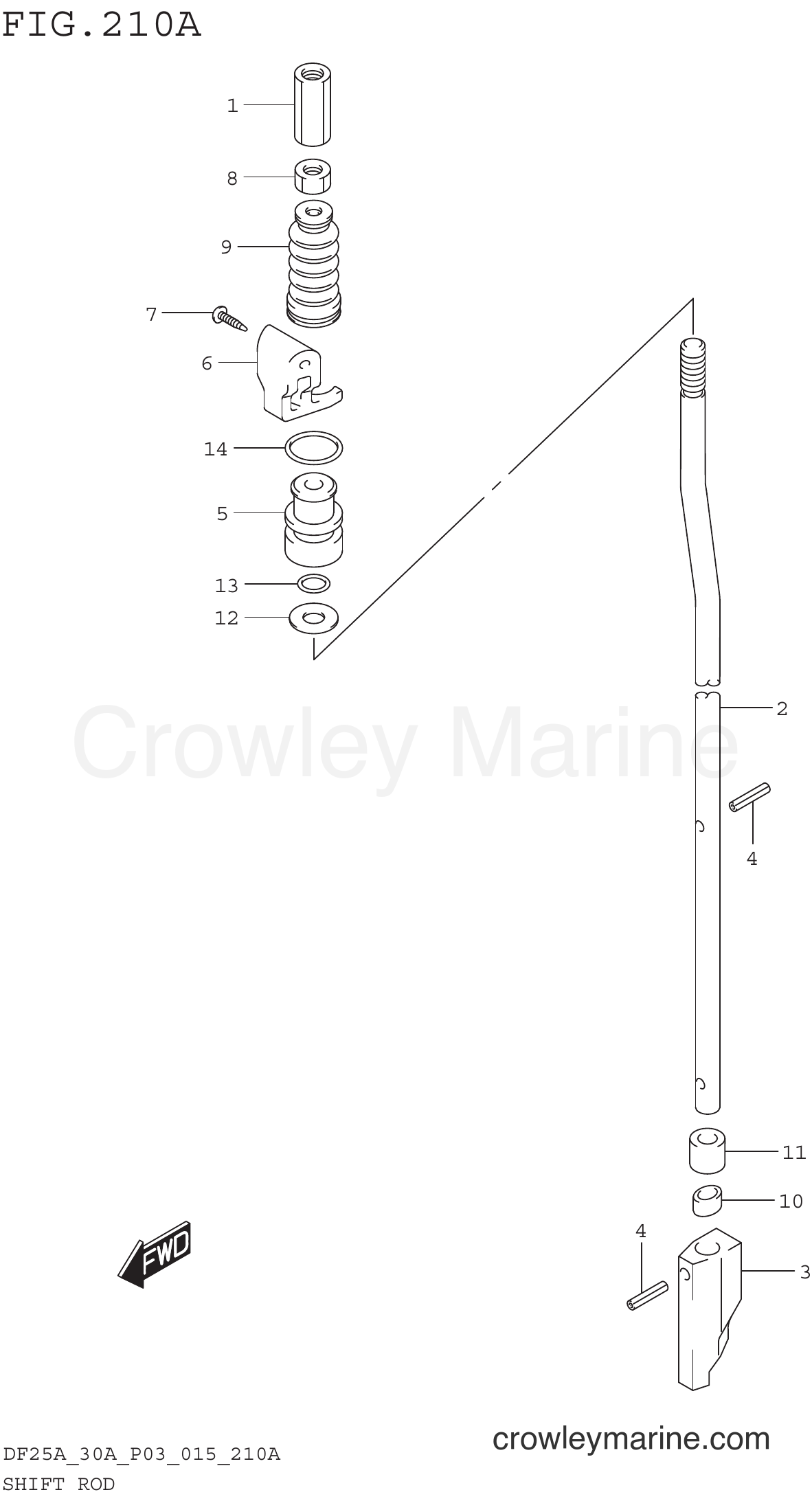

Serial Range Four-Stroke Outboard 25 - DF25AQH 510001~ SHIFT ROD diagram
1
Suzuki Marine
CONNECTOR,CLUTC23311-95J00
Required: 1
CONNECTOR, CLUTCH ROD
In stock
Only 1 remaining
$6.70
You save $1.18
2
Suzuki Marine
ROD,SHIFT(S&L)25111-94L00
Required: 1
ROD, SHIFT(S&L)
$11.18
You save $1.97
$18.69
You save $3.30
4
Suzuki Marine
PIN09205-02004
Required: 2
SPRING PIN (2.5X12)
In stock
Only 1 remaining
$0.87
You save $0.15
5
Suzuki Marine
GUIDE,SHIFT ROD25211-94L00
Required: 1
GUIDE, SHIFT ROD
$9.21
You save $1.62
6
Suzuki Marine
STOPPER,SHIFT R25215-94L00
Required: 1
STOPPER, SHIFT ROD GUIDE
$6.10
You save $1.08
7
Required: 2
SCREW
Price unavailable
In stock
Only 4 remaining
$1.69
You save $0.30
9
Suzuki Marine
BOOT,SHIFT ROD25222-94L00
Required: 1
BOOT, SHIFT ROD
$11.94
You save $2.11
10
Suzuki Marine
Obsolete Suzuki Part25231-96301
Required: 1
HOLDER, MAGNETO
$1.01
You save $0.18
11
Suzuki Marine
MAGNET,GEAR CAS25232-96302
Required: 1
MAGNETO, GEAR CASE
$5.51
You save $0.97
12
Suzuki Marine
WASHER09160-06082
Required: 1
WASHER (6.5X13X1.0)
In stock
Only 2 remaining
$1.47
You save $0.26
13
Suzuki Marine
O RING,D:1.7,ID09280-06012
Required: 1
O RING (D:1.7,ID:5.8)
$2.06
You save $0.36
14
Suzuki Marine
"O"-Ring/Seal (Swivel Bracket)09280-13005
Required: 1
O RING (D:3.5,ID:12.8)
$1.75
You save $0.31
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
