All diagrams for this model

Serial Range Four-Stroke Outboard 200 - DF200AP 710001~ RECTIFIER/IGNITION COIL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

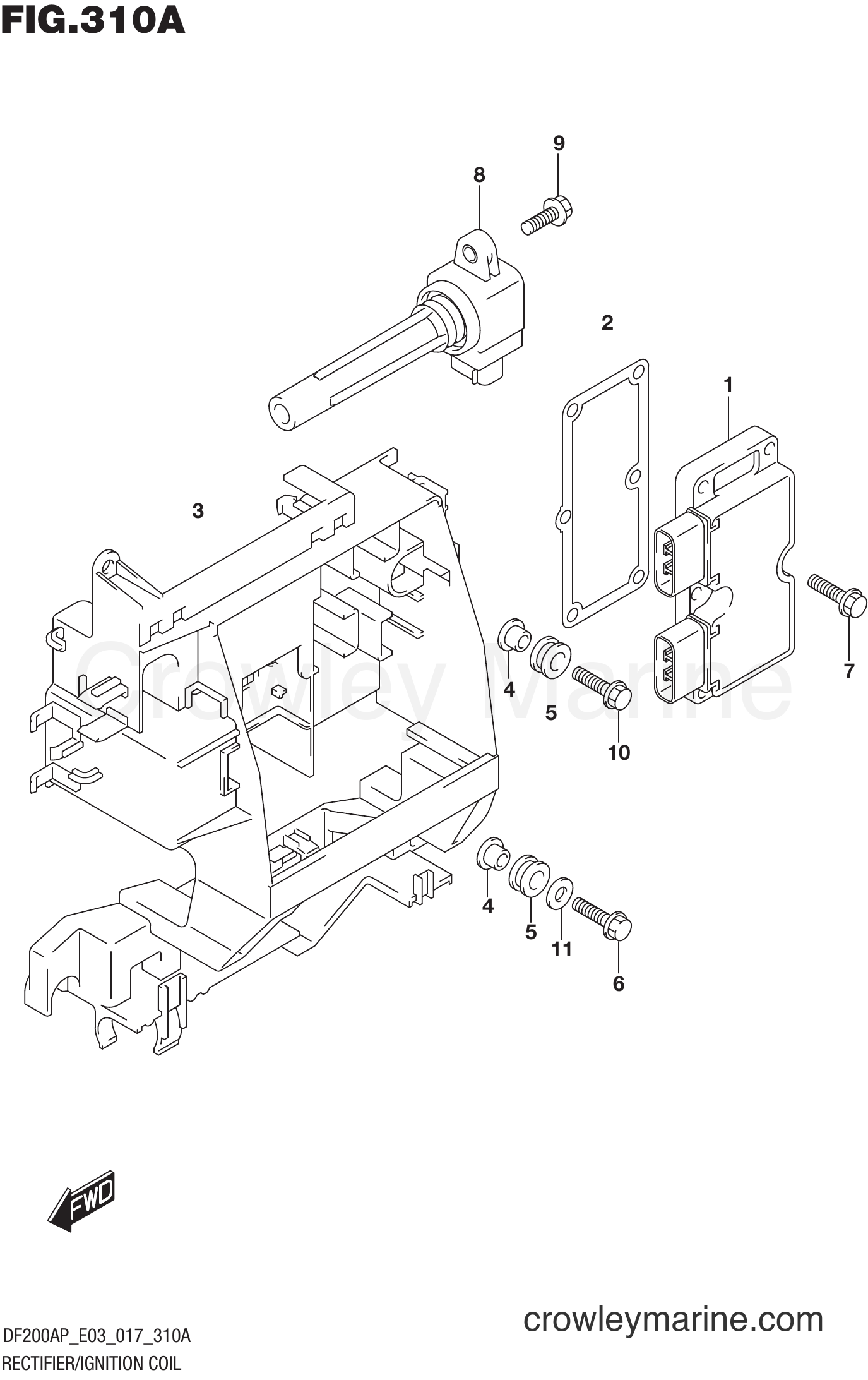

Suzuki Marine DF200AP 710001~ - RECTIFIER/IGNITION COIL
Change View:
RECTIFIER & REG
1
Suzuki Marine
RECTIFIER & REG32800-96J00
Required: 1
RECTIFIER & REGULATOR ASSY
Cross Ship
Leaves in 2-5 days
$312.69
$265.79
You save $46.90
More details
GASKET,RECT & R
2
Suzuki Marine
GASKET,RECT & R32805-96J00
Required: 1
GASKET, RECTIFIER & REGULATOR
Cross Ship
Leaves in 2-5 days
$4.92
$4.18
You save $0.74
More details
HOLDER,ELECTRIC
3
Suzuki Marine
HOLDER,ELECTRIC32890-96J20
Required: 1
HOLDER, ELECTRIC PARTS
Cross Ship
Leaves in 2-5 days
$33.38
$28.37
You save $5.01
More details
WASHER,THROTTLE
4
Suzuki Marine
WASHER,THROTTLE09169-06062
Required: 2
WASHER
Cross Ship
Leaves in 2-5 days
$3.02
$2.57
You save $0.45
More details
Cushion
5
Suzuki Marine
Cushion09320-09016
Required: 4
CUSHION
Cross Ship
Leaves in 2-5 days
$2.37
$2.01
You save $0.36
More details
COIL ASSY,IGNIT
8
Suzuki Marine
COIL ASSY,IGNIT33410-99L00
Required: 4
COIL ASSY, IGNITION
Supersedes: 33410-96L00
Cross Ship
Leaves in 2-5 days
$103.30
$87.80
You save $15.50
More details
BOLT,VAPOR SEPA
10
Suzuki Marine
BOLT,VAPOR SEPA09116-06202
Required: 1
BOLT (6X25)
Cross Ship
Leaves in 2-5 days
$4.31
$3.66
You save $0.65
More details
WASHER 6.5X18X1
11
Suzuki Marine
WASHER 6.5X18X109160-06084
Required: 1
WASHER (6.5X18X1.6)
Cross Ship
Leaves in 2-5 days
$2.15
$1.83
You save $0.32
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
