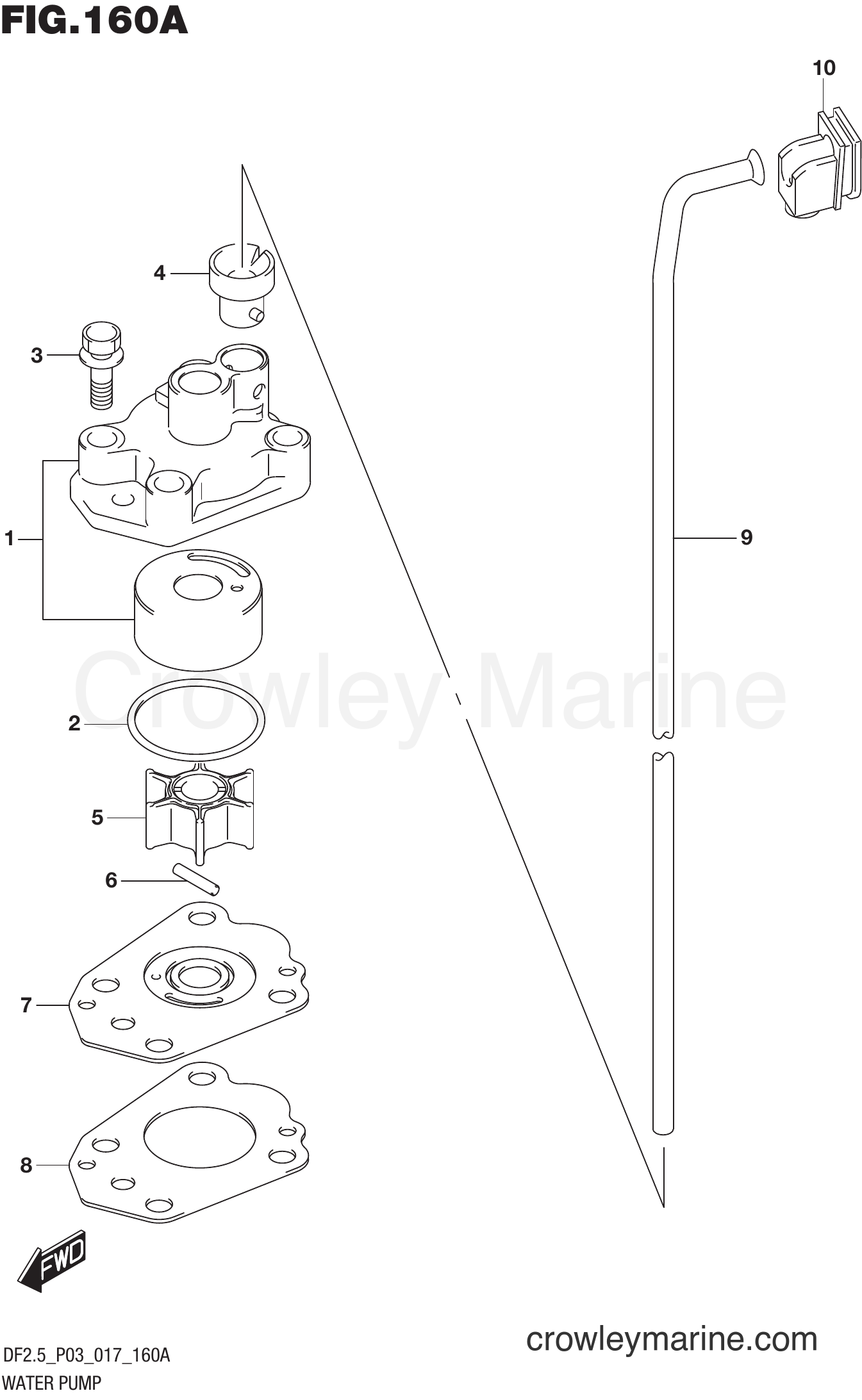

Serial Range Four-Stroke Outboard 2.5 - DF2.5 00252F-710001~ WATER PUMP diagram
1
Suzuki Marine
CASE,WATER PUMP17410-97JL1
Required: 1
CASE, WATER PUMP
In stock
Only 1 remaining
$12.65
You save $2.23
2
Suzuki Marine
O-RING D:1.9,1D09280-33005
Required: 1
O RING (D:1.9,ID:32.7)
In stock
Only 5 remaining
$2.73
You save $0.48
$2.47
You save $0.44
4
Suzuki Marine
GROMMET,WATER P17415-97J00
Required: 1
GROMMET, WATER PUMP CASE
In stock
Only 2 remaining
$3.98
You save $0.70
5
Suzuki Marine
IMPELLER,WATER17461-97JM0
Required: 1
IMPELLER, WATER PUMP
In stock
Only 5 remaining
$17.76
You save $3.14
6
Suzuki Marine
PIN09202-02006
Required: 1
PIN (2.9X14)
In stock
Only 3 remaining
$1.22
You save $0.22
7
Suzuki Marine
PANEL,PUMP CASE17471-97JL0
Required: 1
PANEL, PUMP CASE UNDER
$7.34
You save $1.29
8
Suzuki Marine
GASKET,PUMP CAS17472-97JL0
Required: 1
GASKET, PUMP CASE PANEL
In stock
Only 2 remaining
$4.55
You save $0.80
9
Suzuki Marine
TUBE,WATER(S)17561-97JM0
Required: 1
TUBE, WATER (S)
$14.97
You save $2.64
9
Suzuki Marine
TUBE,WATER(L)17561-97JN0
Required: 1
TUBE, WATER (L)
$11.49
You save $2.03
10
Suzuki Marine
GROMMET,WATER T17563-97J10
Required: 1
GROMMET, WATER TUBE UPPER
$5.84
You save $1.03
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
