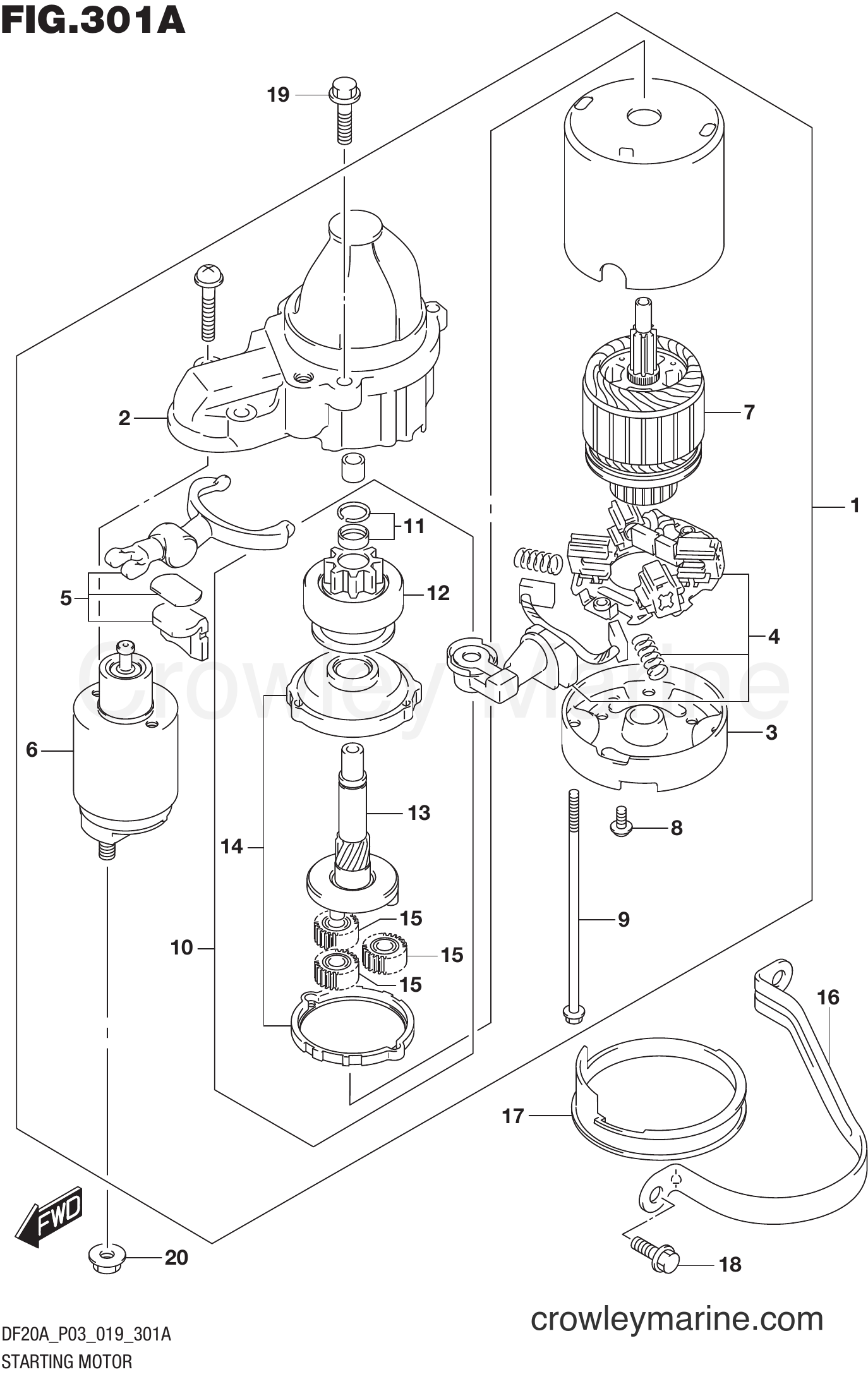

Serial Range Four-Stroke Outboard 15 - DF15ATH 910001~ STARTING MOTOR diagram
1
Suzuki Marine
MOTOR ASSY,STAR31100-89L00
Required: 1
STARTING MOTOR
$832.55
You save $146.92
$135.94
You save $23.99
3
Required: 1
.HOUSING, REAR
Price unavailable
4
Suzuki Marine
HOLDER ASSY,BRU31173-98L00
Required: 1
.HOLDER ASSY, BRUSH
$100.12
You save $17.67
5
Required: 1
.LEVER ASSY
Price unavailable
6
Required: 1
.SWITCH ASSY
Price unavailable
7
Required: 1
.ARMATURE
Price unavailable
8
Required: 1
.SCREW SET
Price unavailable
9
Required: 2
.BOLT, THROUGH
Price unavailable
10
Required: 1
.CLUTCH SET, STARTER
Price unavailable
11
Required: 1
..STOPPER SET
Price unavailable
12
Required: 1
..PINION
Price unavailable
13
Required: 1
..SHAFT, PINION
Price unavailable
14
Required: 1
..INTERNAL GEAR
Price unavailable
15
Required: 3
..GEAR ASSY
Price unavailable
16
Suzuki Marine
BAND,STARTER MO31912-89L00
Required: 1
BAND, STARTING MOTOR
$8.66
You save $1.53
17
Suzuki Marine
DAMPER,LOWER31918-92J01
Required: 1
DAMPER, LOWER
In stock
Only 1 remaining
$7.29
You save $1.29
In stock
5+ in stock
$2.79
You save $0.49
$3.71
You save $0.66
$2.31
You save $0.41
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
