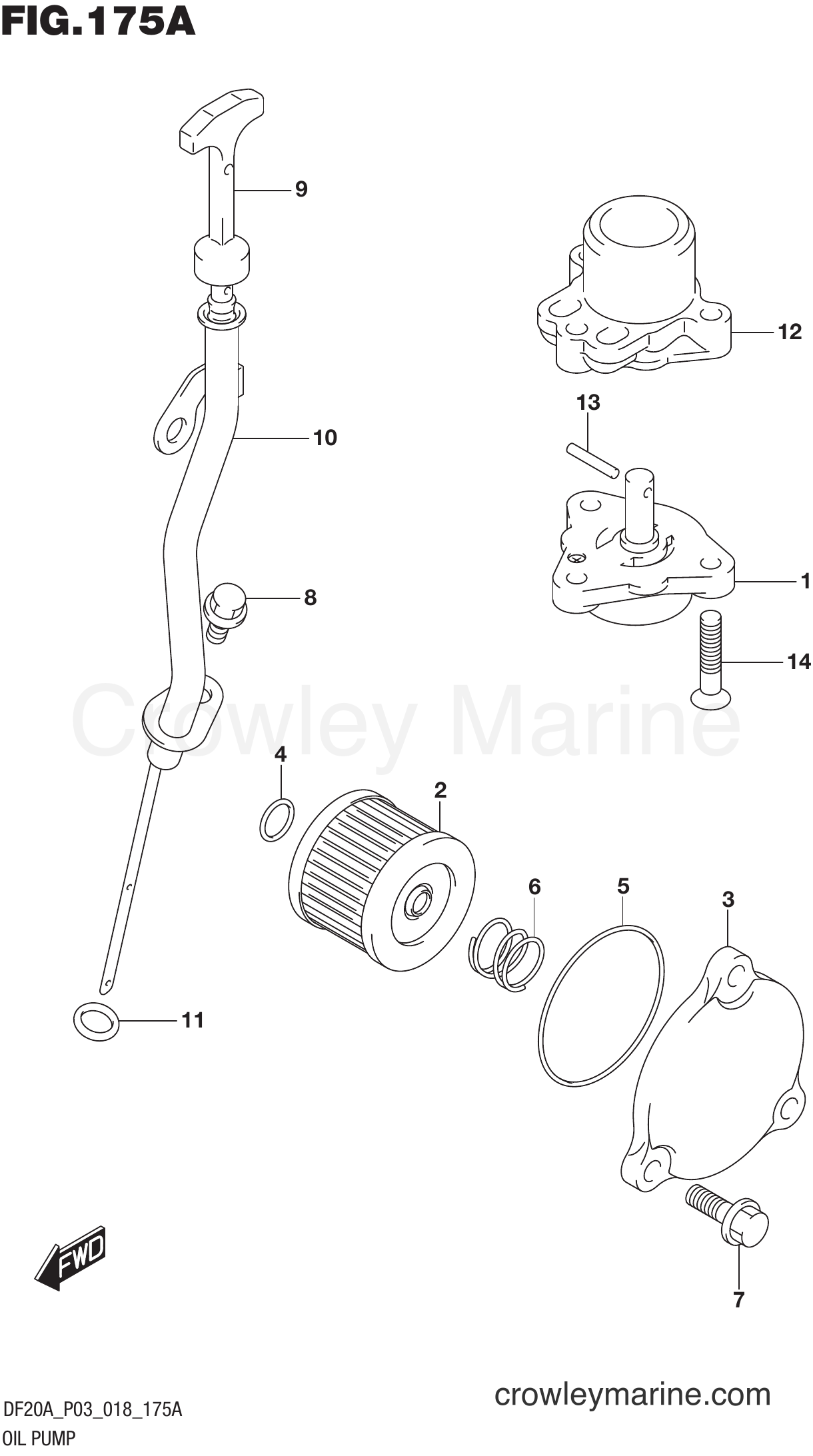

Serial Range Four-Stroke Outboard 15 - DF15ATH 810001~ OIL PUMP diagram
1
Suzuki Marine
PUMP ASSY,OIL16400-89L00
Required: 1
PUMP ASSY, OIL
$154.84
You save $27.32
2
Suzuki Marine
FILTER,ENGINE16510-45H10
Required: 1
FILTER, ENGINE OIL
In stock
Only 1 remaining
$8.90
You save $1.57
3
Suzuki Marine
CAP,OIL FILTER16512-99J00
Required: 1
CAP, OIL FILTER
$22.59
You save $3.99
4
Suzuki Marine
ENG OIL PUMP O09280-13004
Required: 1
O RING (D:1.9,ID:13)
$2.24
You save $0.40
5
Suzuki Marine
O-RING, OIL FLT09280-54001
Required: 1
O RING (D:2.4,ID:52.6)
In stock
5+ in stock
$3.88
You save $0.69
In stock
5+ in stock
$1.13
You save $0.20
7
Required: 3
BOLT
Price unavailable
$1.78
You save $0.32
9
Suzuki Marine
GUAGE,OIL LEVEL16910-89L01
Required: 1
GAUGE, OIL LEVEL
$8.19
You save $1.45
10
Suzuki Marine
GUIDE COMP,OIL16930-89L02
Required: 1
GUIDE, OIL LEVEL GAUGE
Supersedes: 16930-89L01
In stock
Only 1 remaining
$12.29
You save $2.17
11
Suzuki Marine
"O"-Ring/Seal (Swivel Bracket)09280-09008
Required: 1
O RING (D:2.1,ID:8.8)
$3.21
You save $0.57
12
Suzuki Marine
BLOCK,OIL GALLE16431-89L00
Required: 1
BLOCK, OIL GALLERY
$48.59
You save $8.57
13
Suzuki Marine
PIN,OIL PUMP59262-94J00
Required: 1
PIN, OIL PUMP
$1.43
You save $0.25
$1.80
You save $0.32
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
