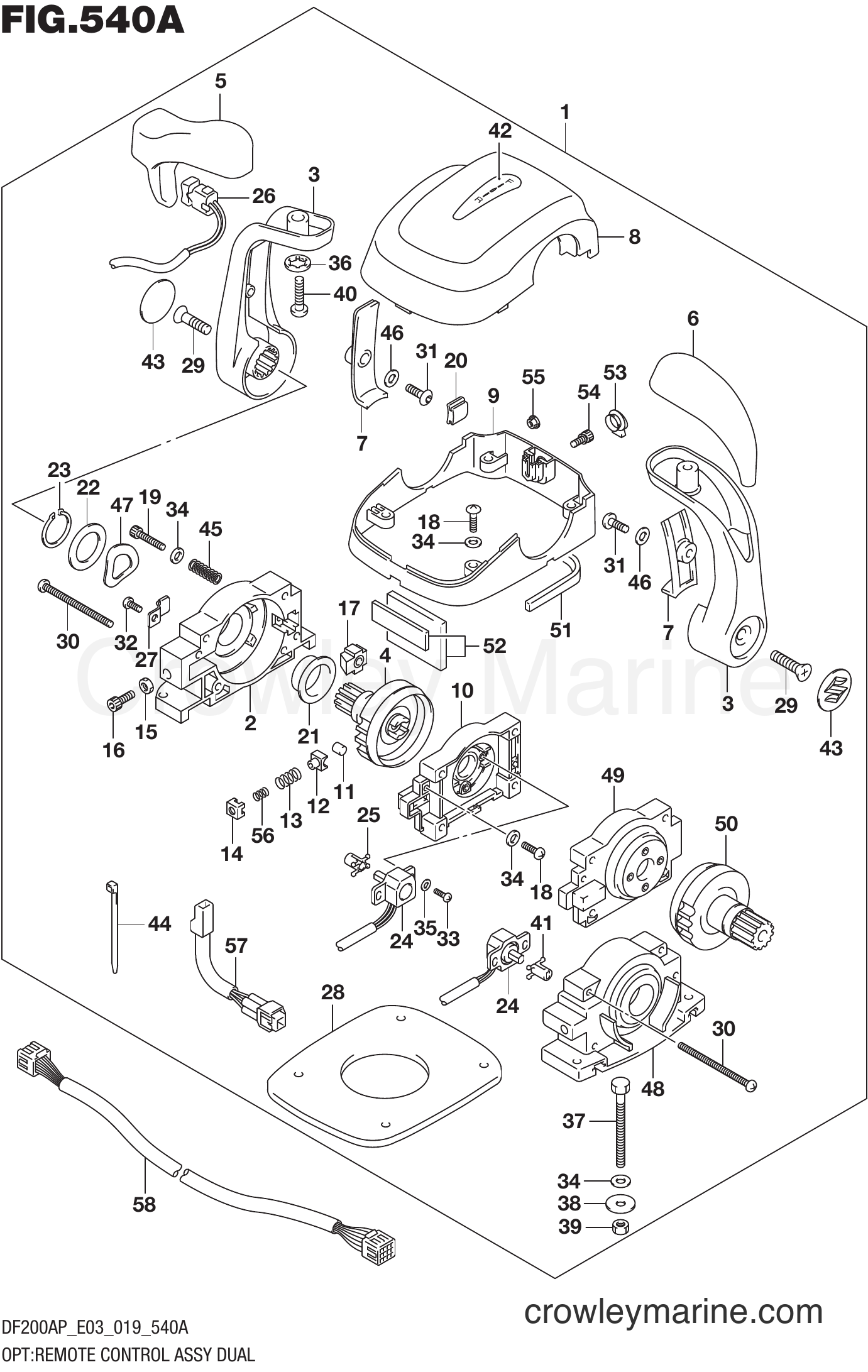

Serial Range Four-Stroke Outboard 200 - DF200AP 910001~ OPT:REMOTE CONTROL ASSY DUAL diagram
1
Suzuki Marine
MULTI REMOTE CO67200-98J14
Required: 1
REMOTE CONTROL ASSY
$1008.88
You save $178.04
$93.90
You save $16.57
3
Suzuki Marine
LEVER,HANDLE67251-98J00
Required: 2
.LEVER, HANDLE
$160.24
You save $28.28
4
Suzuki Marine
Obsolete Suzuki Part67246-98J10
Required: 1
.SHAFT, DRIVE (L)
$83.42
You save $14.72
$12.44
You save $2.19
$8.31
You save $1.47
$29.65
You save $5.23
8
Suzuki Marine
COVER,REMOCON U67212-98J30
Required: 1
.COVER, UPPER
$139.95
You save $24.70
9
Suzuki Marine
COVER,REMOCON B67271-98J40
Required: 1
.COVER, BOTTOM
$41.11
You save $7.26
10
Suzuki Marine
Obsolete Suzuki Part67222-98J10
Required: 1
.PANEL ASSY, BACK (L)
$39.91
You save $7.04
11
Suzuki Marine
Obsolete Suzuki Part67236-98J10
Required: 2
.ROOLER, DETENT
$7.34
You save $1.29
12
Suzuki Marine
Obsolete Suzuki Part67235-98J10
Required: 2
.GUIDE, DETENT ROOLER
$14.13
You save $2.49
13
Suzuki Marine
Obsolete Suzuki Part67237-98J40
Required: 2
.SPRING, DETENT
$12.44
You save $2.19
14
Suzuki Marine
Obsolete Suzuki Part67233-98J10
Required: 2
.HOLDER, DETENT SPRING
$12.82
You save $2.26
$2.26
You save $0.40
16
Suzuki Marine
Obsolete Suzuki Part67239-98J00
Required: 2
.SCREW, DETENT ADJUST
$6.38
You save $1.13
$7.99
You save $1.41
$2.19
You save $0.39
$3.80
You save $0.67
20
Suzuki Marine
GROMMET,REMOCON67272-98J10
Required: 2
.GROMMET, COVER
$7.66
You save $1.35
21
Suzuki Marine
BUSH,DRIVE SHAF67252-98J10
Required: 2
.BUSH, DRIVE SHAFT
$20.59
You save $3.63
$4.35
You save $0.77
$5.51
You save $0.97
24
Suzuki Marine
Potentiometer15980-98J00
Required: 2
.POTENTIOMETER
$338.44
You save $59.72
25
Suzuki Marine
LEVER,POTENTIOM67227-98J10
Required: 1
.LEVER, POTENTIOMETER NO.2
$3.68
You save $0.65
26
Suzuki Marine
SWITCH ASSY,PTT37850-98J03
Required: 1
.SWITCH ASSY, PTT
Supersedes: 37850-98J02
$68.36
You save $12.06
$4.52
You save $0.80
$5.63
You save $0.99
29
Suzuki Marine
SCREW,8X3067296-98J60
Required: 2
.SCREW (8X30)
$4.02
You save $0.71
$5.96
You save $1.05
31
Suzuki Marine
SCREW(5X14)67296-98JG0
Required: 2
.SCREW (5X14)
$4.05
You save $0.71
$1.93
You save $0.34
33
Suzuki Marine
SCREW, REMO-CON67296-94300
Required: 4
.SCREW (4X10)
$1.23
You save $0.22
$2.08
You save $0.37
$1.61
You save $0.28
$2.35
You save $0.41
37
Suzuki Marine
BOLT67226-98J00
Required: 4
.BOLT (5X50)
$4.01
You save $0.71
38
Suzuki Marine
SPEEDOMETER WAS09160-05024
Required: 4
.WASHER (5.5X16X1.5)
$1.61
You save $0.28
$2.26
You save $0.40
$2.03
You save $0.36
41
Suzuki Marine
LEVER,POTENTIOM67227-98J00
Required: 1
.LEVER, POTENTIOMETER NO.1
$3.95
You save $0.70
42
Suzuki Marine
MARK(F-N-R)67284-98J10
Required: 1
.MARK (F-N-R)
$26.44
You save $4.66
43
Suzuki Marine
MARK,LEVER(S)67257-98J00
Required: 2
.MARK, LEVER (S)
$16.30
You save $2.88
$3.31
You save $0.58
45
Suzuki Marine
Obsolete Suzuki Part67288-98J10
Required: 16
.WASHER, SPRING
$3.43
You save $0.61
$3.09
You save $0.54
$3.51
You save $0.62
$144.00
You save $25.41
49
Suzuki Marine
PANEL ASSY,BACK67222-98J20
Required: 1
.PANEL ASSY, BACK (R)
$54.86
You save $9.68
50
Suzuki Marine
SHAFT,DRIVE REM67246-98J20
Required: 1
.SHAFT, DRIVE (R)
$114.66
You save $20.23
51
Suzuki Marine
Obsolete Suzuki Part67273-98J10
Required: 1
.PACKING (FRONT)
$15.78
You save $2.78
52
Suzuki Marine
Obsolete Suzuki Part67273-98J30
Required: 1
.PACKING (REAR)
$9.67
You save $1.71
$11.40
You save $2.01
$5.58
You save $0.98
$3.13
You save $0.55
56
Suzuki Marine
Obsolete Suzuki Part67237-98J50
Required: 2
.SPRING, DETENT
$4.26
You save $0.75
57
Suzuki Marine
CONDENSER,ADAPT36890-98J00
Required: 1
.HARNESS, CONDENSER ADAPTER
$105.97
You save $18.70
58
Suzuki Marine
SPC MAIN HARNES36620-98J33
Required: 1
WIRE ASSY, REMOTE CONTROL
Supersedes: 36620-98J31
$228.50
You save $40.32
58
Suzuki Marine
SPC MAIN HARNES36620-98J43
Required: 1
WIRE ASSY, REMOTE CONTROL
Supersedes: 36620-98J41
$306.43
You save $54.07
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
