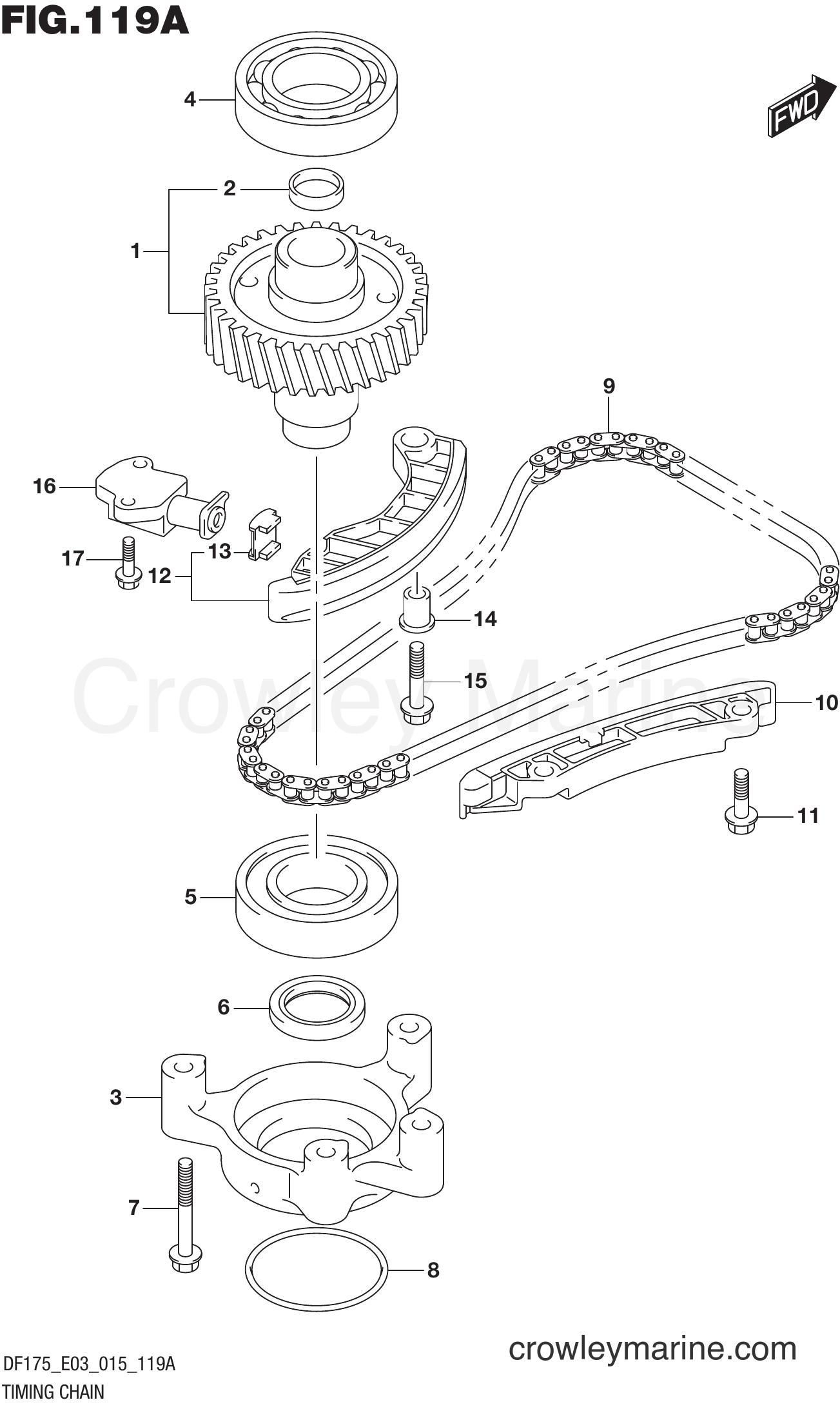

Serial Range Four-Stroke Outboard 175 - DF175 51001~ TIMING CHAIN diagram
1
Suzuki Marine
GEAR COMP,DRIVE12730-96J01
Required: 1
GEAR, DRIVEN (NT:36)
$246.13
You save $43.43
2
Suzuki Marine
PLUG,ENG MTG,HO09241-25005
Required: 1
.PLUG (OD:25)
$4.05
You save $0.71
3
Suzuki Marine
HOLDER,DRIVEN G12734-96J01
Required: 1
HOLDER, DRIVEN GEAR
Supersedes: 12734-96J00
$65.38
You save $11.54
$38.02
You save $6.71
5
Suzuki Marine
BEARING,40X80X109262-40021
Required: 1
BEARING (40X80X18)
Supersedes: 09262-40018
$106.84
You save $18.85
6
Suzuki Marine
Oil Seal09283-32044
Required: 1
OIL SEAL (32X47X6)
In stock
Only 1 remaining
$19.57
You save $3.45
$3.66
You save $0.65
8
Suzuki Marine
O-RING,HOLDER(I09280-70012
Required: 1
O RING (D:5.7,ID:69.6)
$17.38
You save $3.07
9
Suzuki Marine
CHAIN COMP,TIMI12761-96J00
Required: 1
CHAIN, TIMING
$95.97
You save $16.94
10
Suzuki Marine
GUIDE,TIMING CH12772-96J00
Required: 1
GUIDE, TIMING CHAIN
$75.70
You save $13.36
$2.37
You save $0.42
12
Suzuki Marine
TENSIONER ASSY,12810-96J00
Required: 1
TENSIONER ASSY, TIMING CHAIN
$82.59
You save $14.57
13
Suzuki Marine
ROD,TIMING CHAI12813-73G00
Required: 1
.PAD, TIMING CHAIN TENSIONER
$3.87
You save $0.68
14
Suzuki Marine
SPACER,TIMING C12812-90J00
Required: 1
SPACER, TIMING CHAIN TENSIONE
$6.71
You save $1.19
$3.15
You save $0.56
16
Suzuki Marine
ADJUSTER ASSY,T12831-93J01
Required: 1
ADJUSTER ASSY, TENSIONER
$95.07
You save $16.78
$2.01
You save $0.36
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
