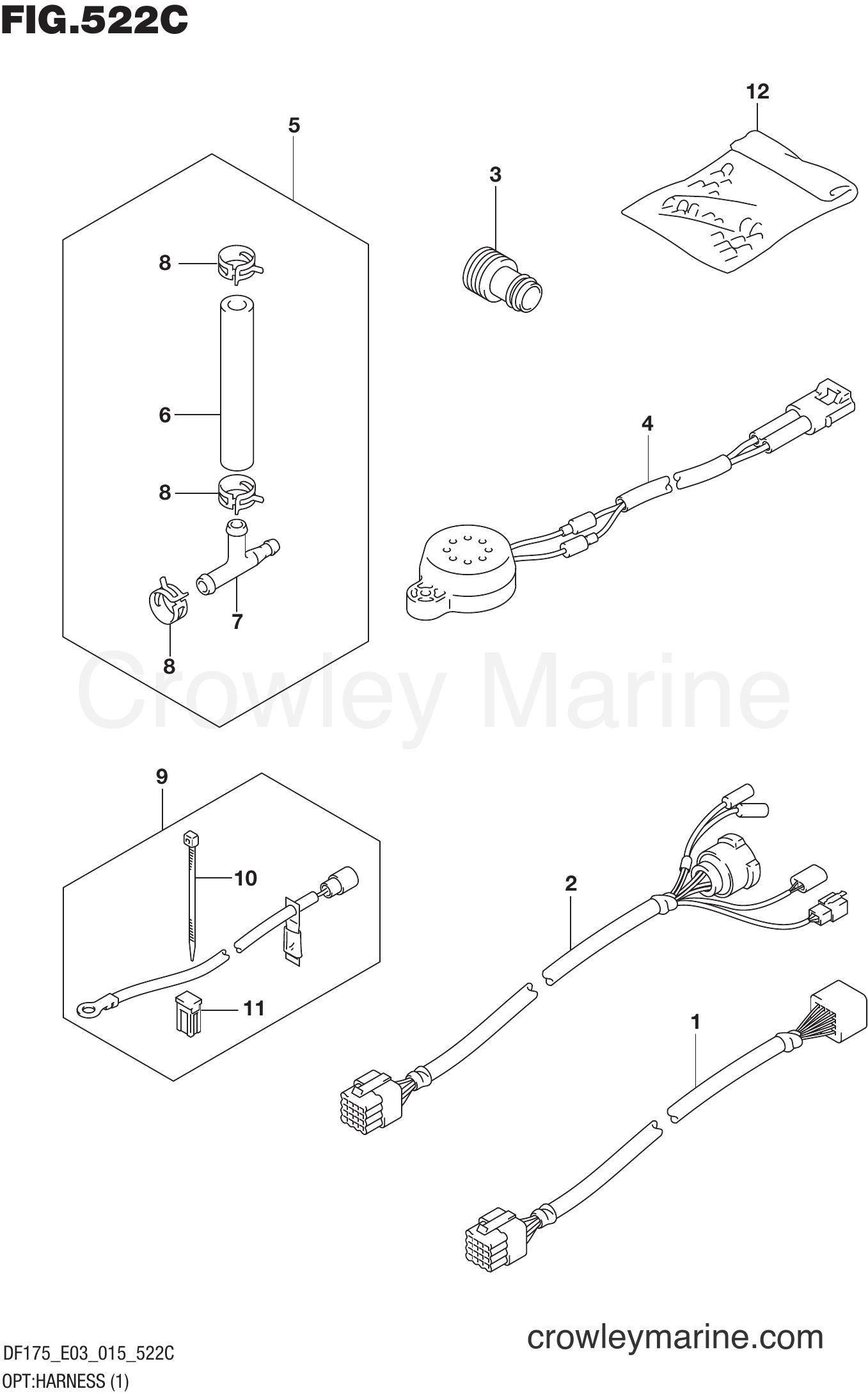

Serial Range Four-Stroke Outboard 175 - DF175Z 51001~ OPT:HARNESS (1) (DF150Z E03) diagram
1
Suzuki Marine
MAIN HARNESS EX36620-93J12
Required: 1
WIRE ASSY, REMOCON EXTENSION
Supersedes: 36620-93J10
In stock
Only 1 remaining
$74.27
You save $13.11
1
Suzuki Marine
HARNESS EXT 10'36620-93J42
Required: 1
WIRE ASSY, REMOCON EXTENSION
Supersedes: 36620-93J40
$102.16
You save $18.03
2
Suzuki Marine
HARNESS ADAPTER36620-93J32
Required: 1
WIRE ASSY, REMOCON ADAPTER NO.2
Supersedes: 36620-93J30
$94.19
You save $16.62
3
Suzuki Marine
CONNECTOR, FLUS17917-87L00
Required: 1
CONNECTOR, FLUSH WATER
In stock
Only 1 remaining
$9.52
You save $1.68
4
Suzuki Marine
BUZZER,WARNING38500-93J90
Required: 1
BUZZER ASSY, WARNING
Supersedes: 38500-93J00
In stock
Only 2 remaining
$34.57
You save $6.10
5
Suzuki Marine
SUB KIT WATER P34660-96J01
Required: 1
KIT, WATER PRESS GAUGE
Supersedes: 34660-96J00
$15.46
You save $2.73
6
Suzuki Marine
HOSE, 5X9X60009352-50006-600
Required: 1
.HOSE (5X9X600)
Supersedes: 09352-50903-600
In stock
Only 2 remaining
$7.74
You save $1.37
$4.22
You save $0.75
In stock
5+ in stock
$1.97
You save $0.35
9
Suzuki Marine
SET,BATTERY ISO33830-98J11
Required: 1
SET, BATTERY ISOLATOR LEAD
Supersedes: 33830-98J10
$131.14
You save $23.14
10
Suzuki Marine
Clamp09407-10404
Required: 2
.CLAMP (L:100)
$2.60
You save $0.46
$6.54
You save $1.16
12
Suzuki Marine
TERMINAL&SLEEVE36990-87D00
Required: 1
TERMINAL SET, WITH SLEEVE
$17.46
You save $3.08
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
