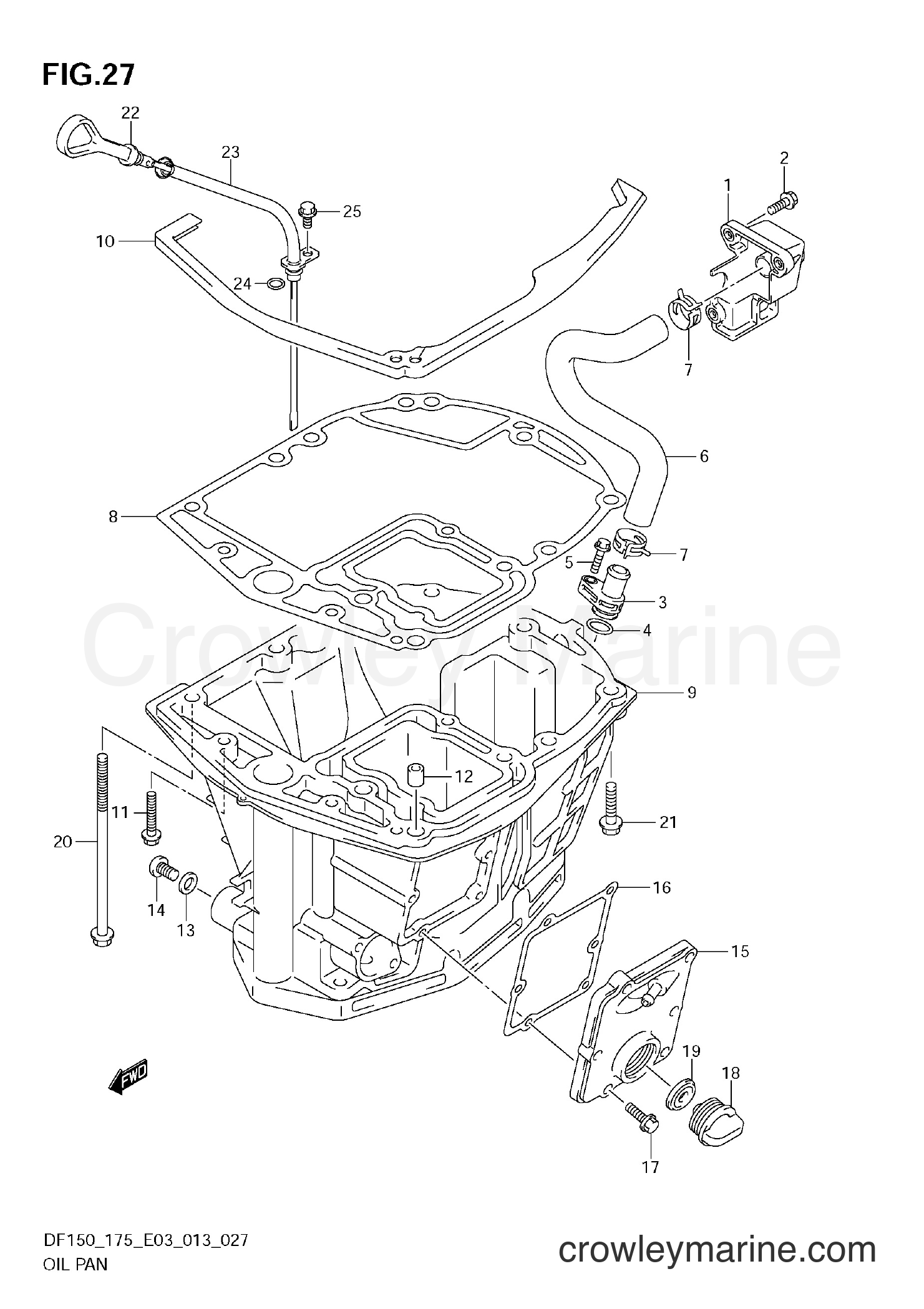

Serial Range Four-Stroke Outboard 175 - DF175 310001~ OIL PAN diagram
1
Suzuki Marine
PIPE COMP,EXHAU11430-96J01
Required: 1
PIPE, EXHAUST RELEASE
$18.97
You save $3.35
2
Suzuki Marine
BOLT29116-93J00
Required: 3
BOLT, EXH RELEASE PIPE (6X20)
$2.26
You save $0.57
3
Suzuki Marine
PIPE COMP,EXHAU11540-96J01
Required: 1
PIPE, EXHAUST
$10.08
You save $1.78
4
Suzuki Marine
OIL STRAINER O09280-16005
Required: 1
O RING (D:2.4,ID:15.8)
$2.18
You save $0.54
5
Suzuki Marine
BOLT29116-93J00
Required: 1
BOLT, EXHAUST PIPE (6X20)
$2.26
You save $0.57
-50%
6
Suzuki Marine
Exhaust Hose11543-96J01
Required: 1
HOSE, EXHAUST
Supersedes: 11543-96J00
In stock
Only 1 remaining
$10.61
You save $10.61
$3.48
You save $0.87
8
Suzuki Marine
Oil Pan Gasket11489-96J01
Required: 1
GASKET, OIL PAN
$38.31
You save $6.76
9
Suzuki Marine
Oil Pan11501-96J03-0EP
Required: 1
PAN, OIL (BLACK)
Supersedes: 11501-96J02-0EP
$689.49
You save $121.67
10
Suzuki Marine
SEAL,OIL PAN UP11544-96J01
Required: 1
SEAL, OIL PAN UPPER
Supersedes: 11544-96J00
$39.51
You save $6.97
$3.88
You save $0.69
12
Suzuki Marine
PIN09202-08006
Required: 2
PIN (8X12)
$2.61
You save $0.46
13
Suzuki Marine
GASKET 12.5X20X09168-12012
Required: 1
GASKET (12.5X20X2.5)
In stock
5+ in stock
$1.78
You save $0.44
14
Suzuki Marine
PLUG,OIL DRAIN09248-12009
Required: 1
PLUG (12X18.65)
In stock
Only 1 remaining
$5.22
You save $1.31
15
Suzuki Marine
COVER COMP,WTR11550-96J00-0EP
Required: 1
COVER, WTR JACKET OIL PAN (BLACK)
$70.74
You save $12.48
16
Suzuki Marine
Oil Pan Gasket11552-96J00
Required: 1
GASKET, WTR JACKET COVER
$9.30
You save $2.32
$0.93
You save $0.16
In stock
5+ in stock
$4.06
You save $1.01
19
Suzuki Marine
GASKET,WATER PL17914-93J01
Required: 1
GASKET, WATER PLUG
Supersedes: 17914-93J00
In stock
Only 1 remaining
$2.02
You save $0.50
20
Suzuki Marine
BOLT,10X19509116-10146
Required: 8
BOLT (10X195)
$30.09
You save $5.31
21
Suzuki Marine
BOLT,10X4409116-10176
Required: 1
BOLT (10X44)
$6.62
You save $1.66
22
Suzuki Marine
GAUGE COMP,OIL16910-96J01
Required: 1
GAUGE, OIL LEVEL
In stock
Only 1 remaining
$17.77
You save $3.13
23
Suzuki Marine
GUIDE,OIL LEVEL16930-96J01
Required: 1
GUIDE, OIL LEVEL GAUGE
Supersedes: 16930-96J00
In stock
Only 1 remaining
$10.85
You save $1.92
24
Suzuki Marine
"O"-Ring/Seal (Swivel Bracket)09280-09008
Required: 1
O RING (D:2.1,ID:8.8)
$3.02
You save $0.76
In stock
5+ in stock
$2.23
You save $0.56
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
