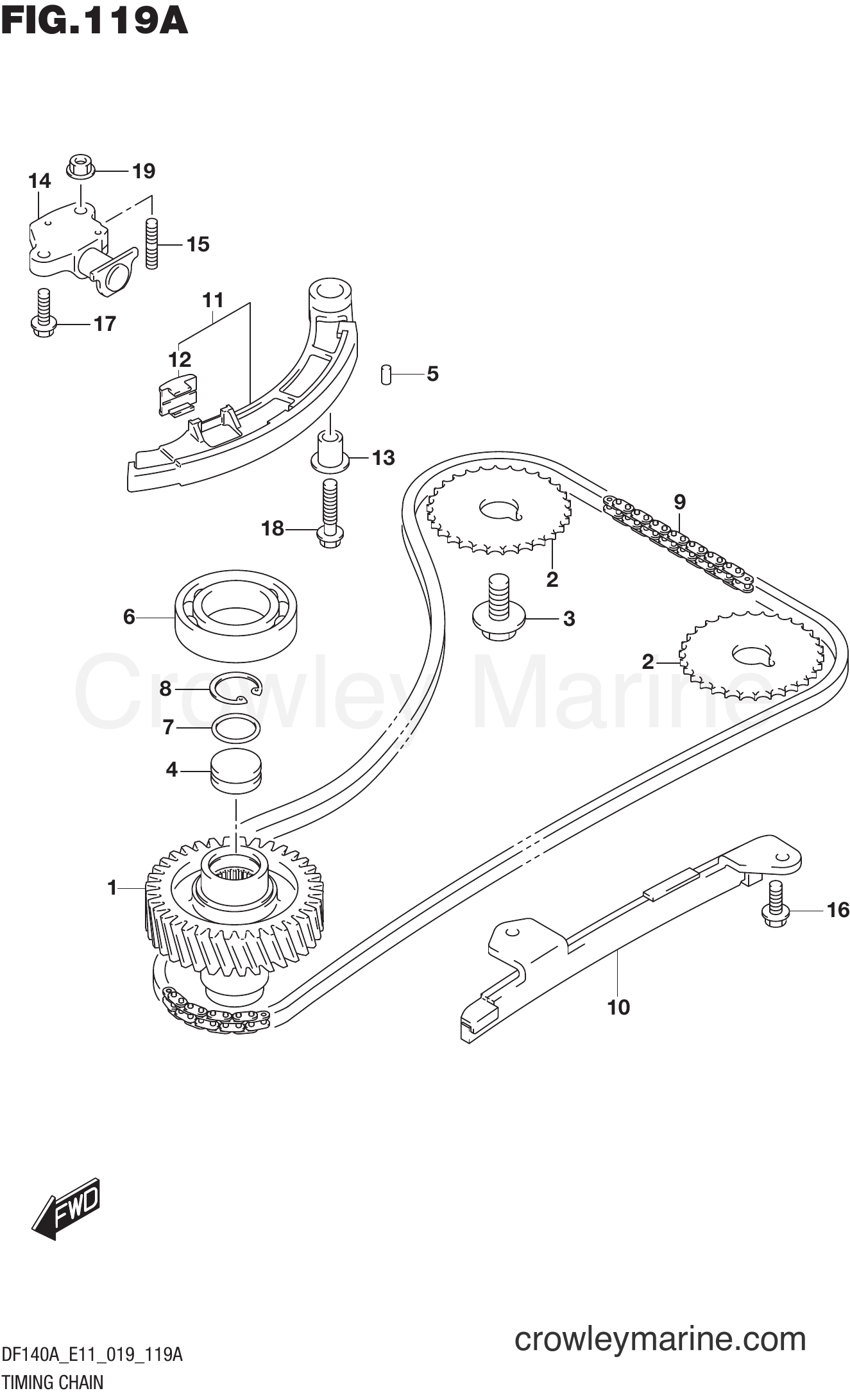

Serial Range Four-Stroke Outboard 115 - DF115AZ 910001~ TIMING CHAIN diagram
1
Suzuki Marine
Driven Gear12732-90J01
Required: 1
GEAR, DRIVEN (NT:18)
Supersedes: 12732-90J00
$159.15
You save $28.08
2
Suzuki Marine
SPROCKET,CAMSHA12741-90J01
Required: 2
SPROCKET, CAM SHAFT TIMING (NT:29)
$20.65
You save $3.64
3
Suzuki Marine
BOLT,12X2509103-12049
Required: 2
BOLT (12X25)
$4.40
You save $0.78
4
Suzuki Marine
PLUG,DRIVEN GEA12733-90J00
Required: 1
PLUG, DRIVEN GEAR
$7.58
You save $1.34
$1.54
You save $0.27
6
Suzuki Marine
BALL BRNG 35X6209262-35068
Required: 1
BEARING (35X62X14)
$57.70
You save $10.18
7
Suzuki Marine
"O"-Ring/Seal (Swivel Bracket)09280-22022
Required: 1
O RING (D:1.9,ID:21.8)
$5.07
You save $0.90
$2.46
You save $0.43
9
Suzuki Marine
CHAIN COMP,TIMI12761-90J10
Required: 1
CHAIN, TIMING
Supersedes: 12761-90J00
$61.76
You save $10.90
10
Suzuki Marine
GUIDE,TIMING CH12771-90J00
Required: 1
GUIDE, TIMING CHAIN
$51.62
You save $9.11
11
Suzuki Marine
TENSIONER,TIMIN12810-90J00
Required: 1
TENSIONER, TIMING CHAIN
$74.00
You save $13.06
12
Suzuki Marine
ROD,TIMING CHAI12813-73G00
Required: 1
.PAD, TIMING CHAIN TENSIONER
$3.87
You save $0.68
13
Suzuki Marine
SPACER,TIMING C12812-90J00
Required: 1
SPACER, TIMING CHAIN TENSIONE
$6.71
You save $1.19
14
Suzuki Marine
ADJUSTER ASSY,T12831-90J02
Required: 1
ADJUSTER, TENSIONER
$103.00
You save $18.18
$1.96
You save $0.35
$2.01
You save $0.36
$2.01
You save $0.36
$3.15
You save $0.56
$2.24
You save $0.40
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
