All diagrams for this model

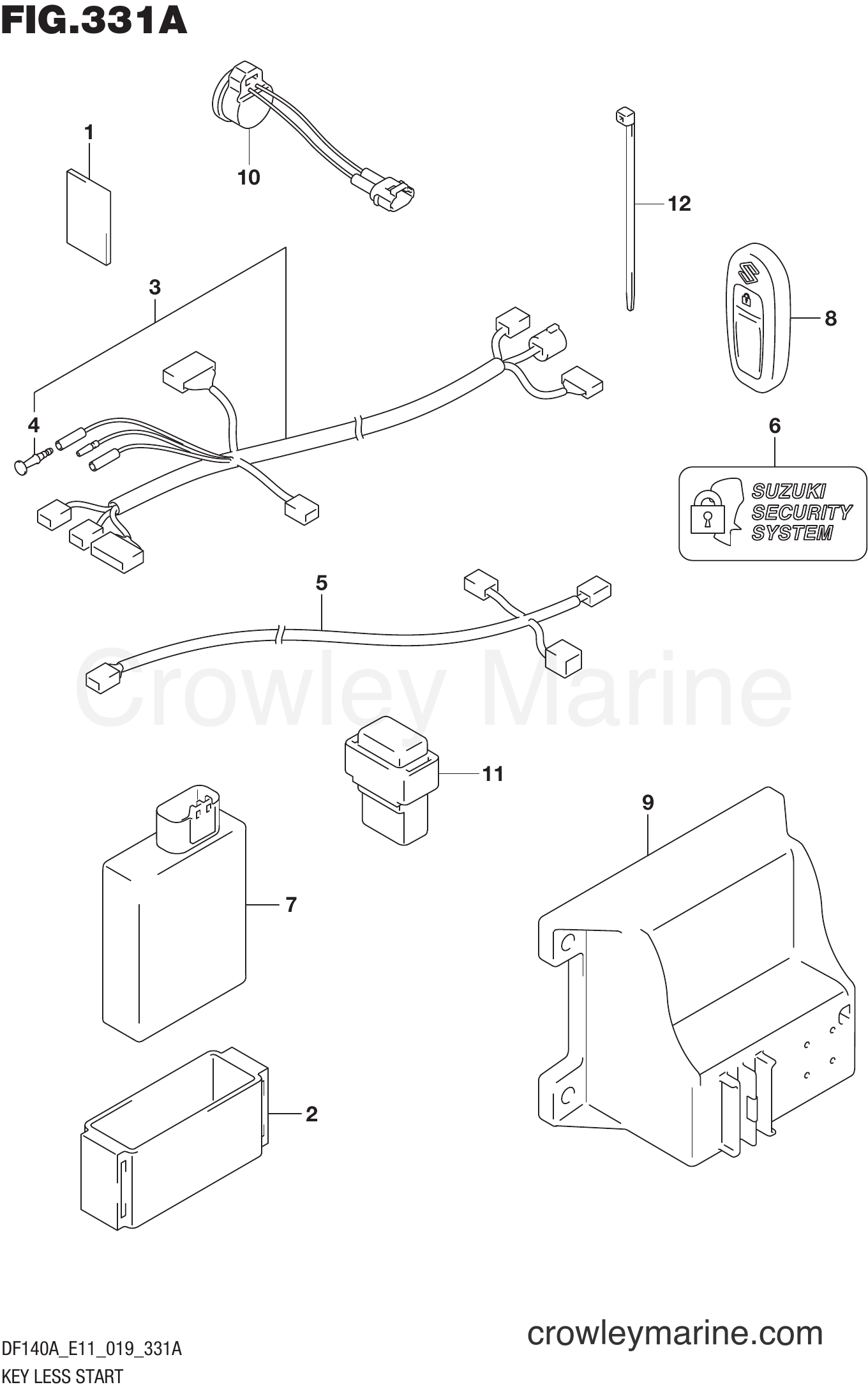

Serial Range Four-Stroke Outboard 100 - DF100AT 910001~ KEY LESS START (DF100AT E11)(DF115AT E11)(DF140AT E11) diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Suzuki Marine DF100AT 910001~ - KEY LESS START (DF100AT E11)(DF115AT E11)(DF140AT E11)
Change View:
CUSHION,LEAD WI
1
Suzuki Marine
CUSHION,LEAD WI32851-93J00
Required: 1
CUSHION, KLS CONTROLLER
Cross Ship
Leaves in 2-5 days
$3.47
$2.95
You save $0.52
More details
2
Required: 1
HOLDER, KLS CONTROLLER
Price unavailable
WIRE ASSY,REMOT
3
Suzuki Marine
WIRE ASSY,REMOT36623-96L11
Required: 1
HARNESS ASSY, KLS CONT
Supersedes: 36623-96L10
Cross Ship
Leaves in 2-5 days
$228.46
$194.19
You save $34.27
More details
Terminal (Block)
4
Suzuki Marine
Terminal (Block)36615-96300
Required: 1
.TERMINAL
Cross Ship
Leaves in 2-5 days
$1.45
$1.23
You save $0.22
More details
HARNESS ASSY,KL
5
Suzuki Marine
HARNESS ASSY,KL36662-96L10
Required: 1
HARNESSASSY, KLS CAN
Cross Ship
Leaves in 2-5 days
$150.21
$127.68
You save $22.53
More details
6
Required: 2
DECAL, KLS
Price unavailable
7
Required: 1
CONTROLLER ASSY, KLS 433MHZ
Price unavailable
7
Required: 1
CONTROLLER ASSY, KLS 315MHZ
Price unavailable
8
Required: 2
REMOCON ASSY, KLS 433MHZ
Price unavailable
8
Required: 2
REMOCON ASSY, KLS 315MHZ
Price unavailable
9
Required: 1
HOLDER, KLS PARTS
Price unavailable
11
Required: 1
RELAY ASSY, KLS
Price unavailable
Clamp
12
Suzuki Marine
Clamp09407-14407
Required: 1
CLAMP (L:145)
Cross Ship
Leaves in 2-5 days
$3.70
$3.15
You save $0.56
More details
13
Required: 1
NOTE: USE FREQUENCY ASSIGNED ON YOUR MARKET. FOR DETAILES, PLEASE MAKE SURE OF SUZUKI DEALERS. DF100AT E11 DF115AT E11 DF140AT E11
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
