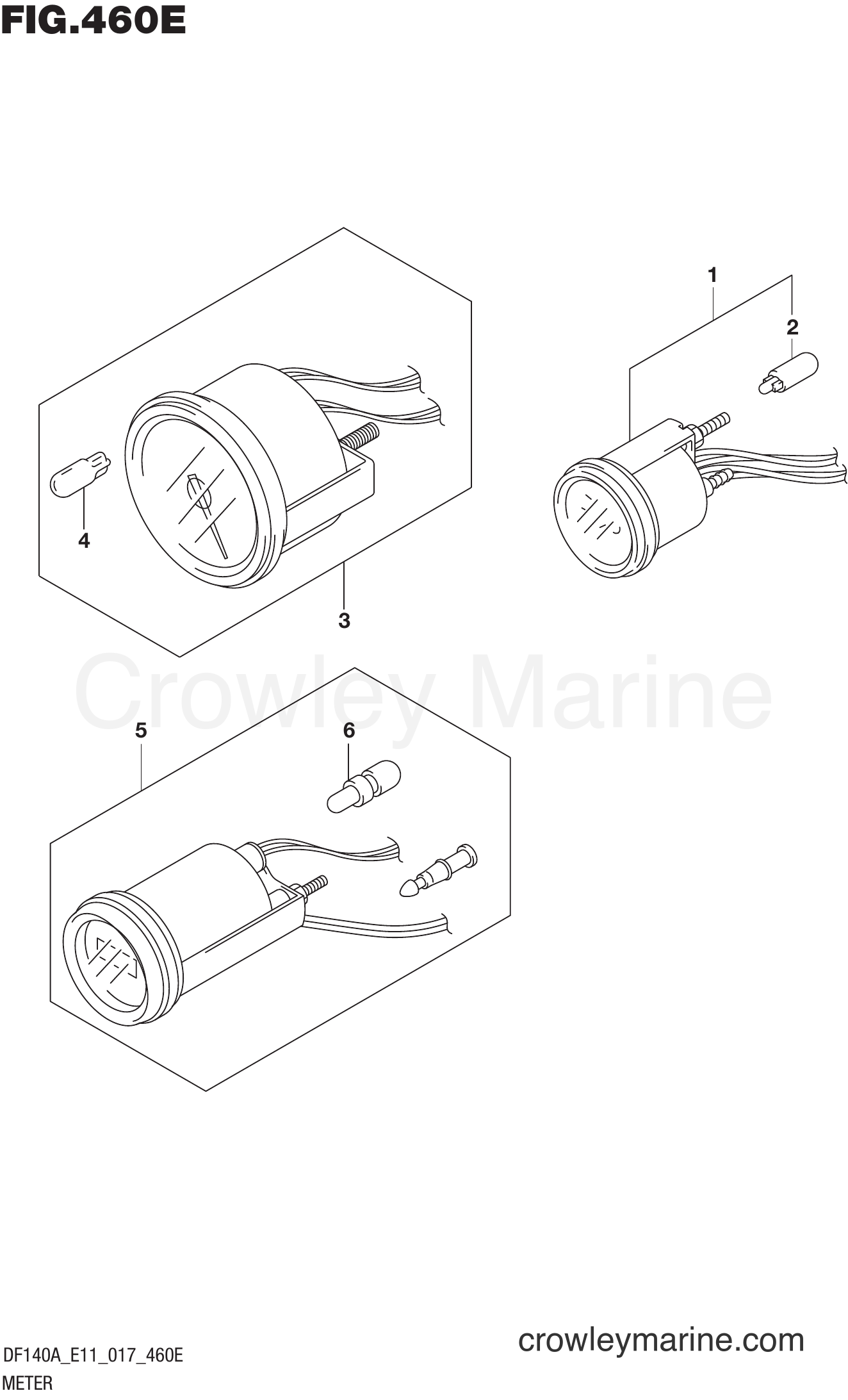

Serial Range Four-Stroke Outboard 140 - DF140AZ 710001~ METER (DF115AZ E40) diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Suzuki Marine DF140AZ 710001~ - METER (DF115AZ E40)
Change View:
WHITE TRIM METE
1
Suzuki Marine
WHITE TRIM METE34800-93J13
Required: 1
METER ASSY, TRIM
Supersedes: 34800-93J11
Cross Ship
Leaves in 2-5 days
$105.53
$89.70
You save $15.83
More details
BULB 12V1.7W
2
Suzuki Marine
BULB 12V1.7W09471-12108
Required: 1
.BULB (12V,1.7W)
Cross Ship
Leaves in 2-5 days
$4.16
$3.54
You save $0.62
More details
BLACK TACH W/MO
3
Suzuki Marine
BLACK TACH W/MO34200-93J02
Required: 1
TACHOMETER ASSY, WITH MONITOR
Supersedes: 34200-93J00
Cross Ship
Leaves in 2-5 days
$209.12
$177.75
You save $31.37
More details
Bulb
4
Suzuki Marine
Bulb09471-12077
Required: 1
.BULB (12V,1.7W)
Cross Ship
Leaves in 2-5 days
$4.39
$3.73
You save $0.66
More details
BLACK HOUR METE
5
Suzuki Marine
BLACK HOUR METE34500-93J02
Required: 1
METER ASSY, HOUR
Supersedes: 34500-93J00
Cross Ship
Leaves in 2-5 days
$164.44
$139.77
You save $24.67
More details
WHITE HOUR METE
5
Suzuki Marine
WHITE HOUR METE34500-93J13
Required: 1
METER ASSY, HOUR
Supersedes: 34500-93J11
Cross Ship
Leaves in 2-5 days
$164.44
$139.77
You save $24.67
More details
BULB 12V3W
6
Suzuki Marine
BULB 12V3W09471-12103
Required: 1
.BULB (12V3W,T6.5)
Cross Ship
Leaves in 2-5 days
$4.67
$3.97
You save $0.70
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
