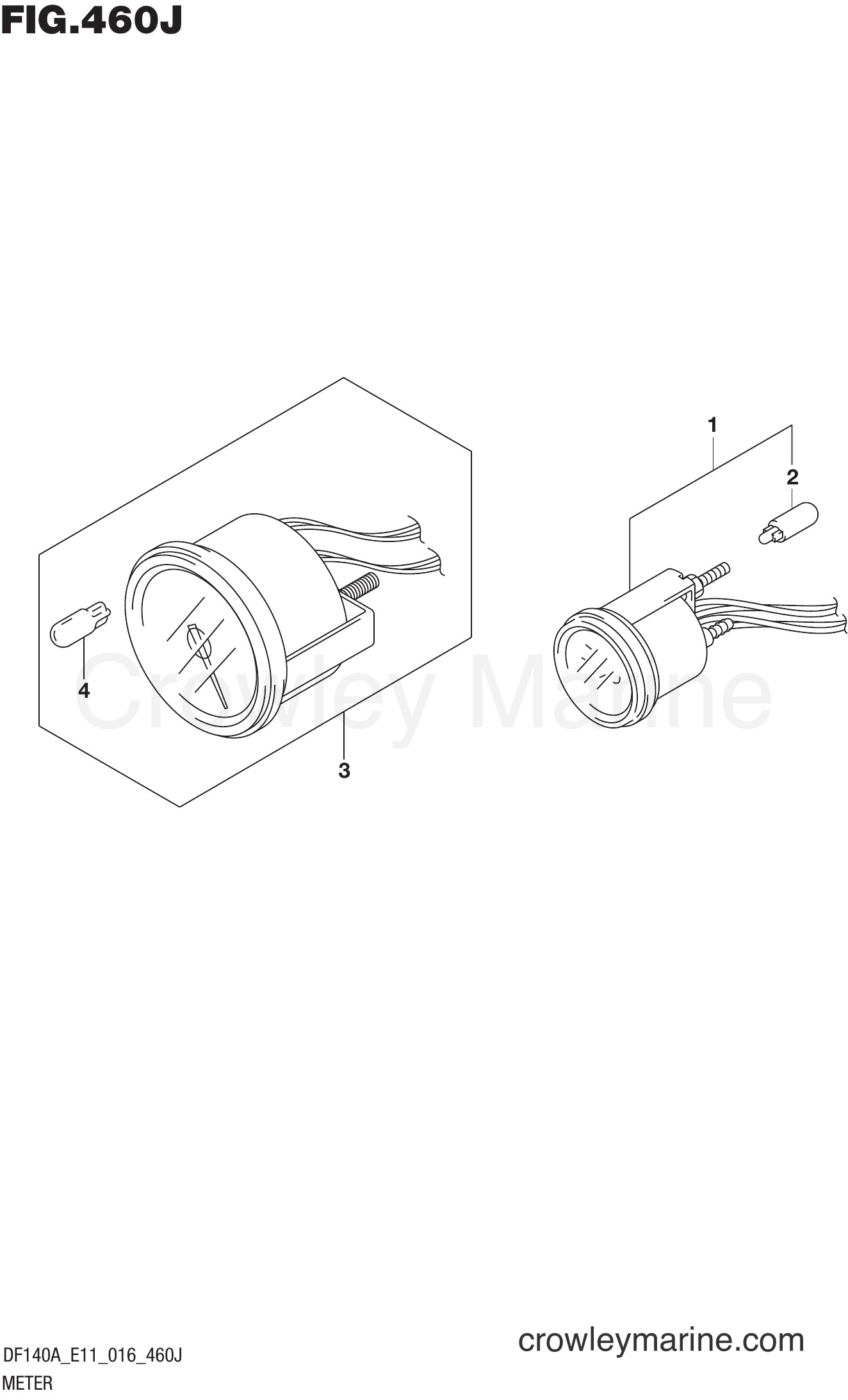

Suzuki Marine DF115AZ 610001~ - METER (DF140AZ E40)
Change View:
1
Required: 1
METER ASSY, TRIM
Price unavailable
1
Required: 1
METER ASSY, TRIM
Price unavailable
BULB 12V1.7W
2
Suzuki Marine
BULB 12V1.7W09471-12108
Required: 1
.BULB (12V,1.7W)
Cross Ship
Leaves in 2-5 days
$4.16
$3.54
You save $0.62
More details
3
Required: 1
TACHOMETER ASSY, WITH MONITOR
Price unavailable
3
Required: 1
TACHOMETER ASSY, WITH MONITOR
Price unavailable
Bulb
4
Suzuki Marine
Bulb09471-12077
Required: 1
.BULB (12V,1.7W)
Cross Ship
Leaves in 2-5 days
$4.39
$3.73
You save $0.66
More details
