Serial Range Four-Stroke Outboard 115 - DF115AST 610001~ KEY LESS START (DF140AT E11) diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

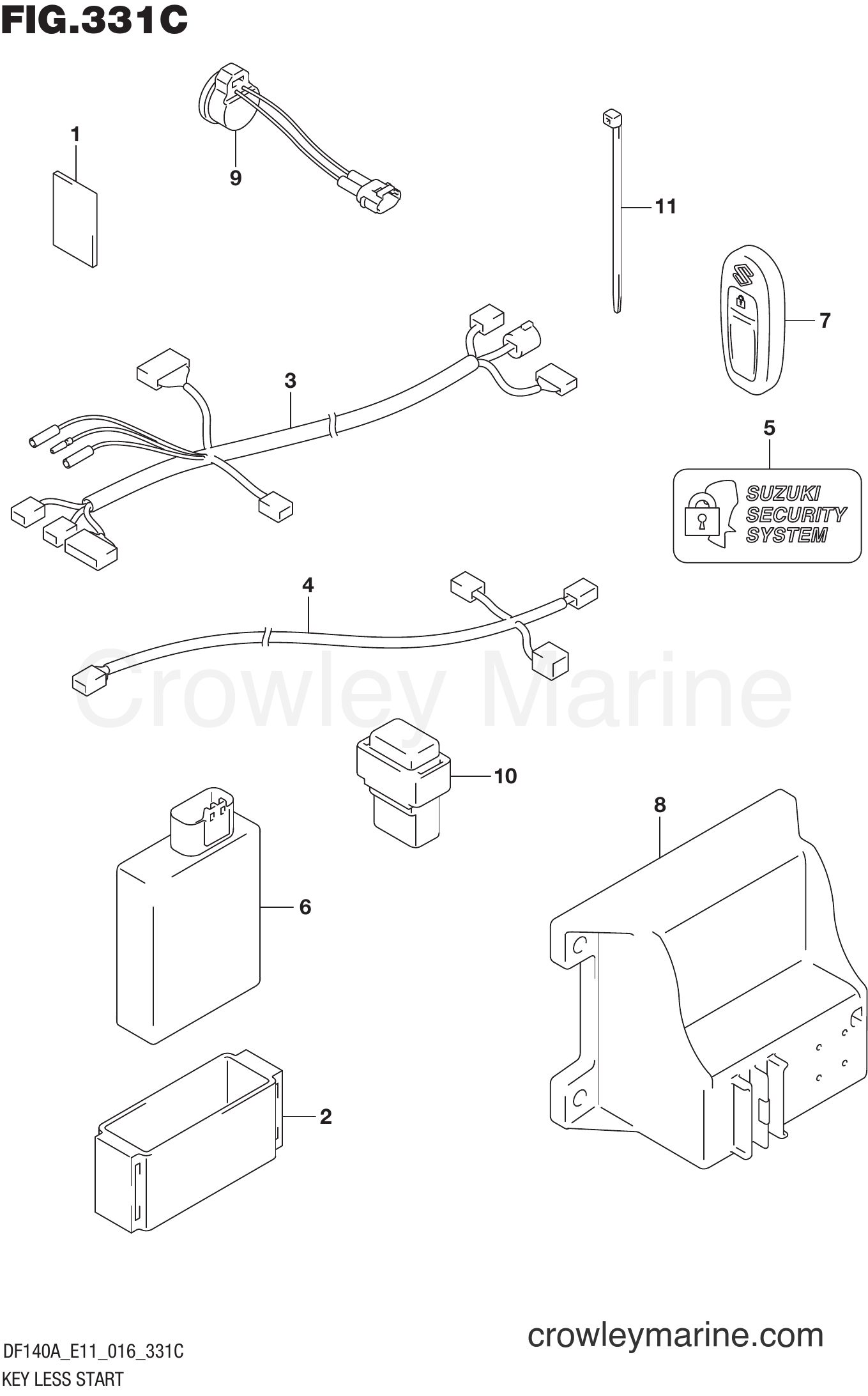

Suzuki Marine DF115AST 610001~ - KEY LESS START (DF140AT E11)
Change View:
CUSHION,LEAD WI
1
Suzuki Marine
CUSHION,LEAD WI32851-93J00
Required: 2
CUSHION, KLS CONTROLLER
Cross Ship
Leaves in 2-5 days
$3.47
$2.95
You save $0.52
More details
2
Required: 1
HOLDER, KLS CONTROLLER
Price unavailable
WIRE ASSY,REMOT
3
Suzuki Marine
WIRE ASSY,REMOT36623-96L11
Required: 1
HARNESS ASSY, KLS CONT
Supersedes: 36623-96L10
Cross Ship
Leaves in 2-5 days
$228.46
$194.19
You save $34.27
More details
HARNESS ASSY,KL
4
Suzuki Marine
HARNESS ASSY,KL36662-96L10
Required: 1
HARNESSASSY, KLS CAN
Cross Ship
Leaves in 2-5 days
$150.21
$127.68
You save $22.53
More details
5
Required: 2
DECAL, KLS
Price unavailable
6
Required: 1
CONTROLLER ASSY, KLS 433MHZ
Price unavailable
6
Required: 1
CONTROLLER ASSY, KLS 315MHZ
Price unavailable
7
Required: 2
REMOCON ASSY, KLS 433MHZ
Price unavailable
7
Required: 2
REMOCON ASSY, KLS 315MHZ
Price unavailable
8
Required: 1
HOLDER, KLS PARTS
Price unavailable
10
Required: 1
RELAY ASSY, KLS
Price unavailable
Clamp
11
Suzuki Marine
Clamp09407-14407
Required: 1
CLAMP (L:145)
Cross Ship
Leaves in 2-5 days
$3.70
$3.15
You save $0.56
More details
12
Required: 1
NOTE: USE FREQUENCY ASSIGNED ON YOUR MARKET. FOR DETAILES, PLEASE MAKE SURE OF SUZUKI DEALERS.
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
