All diagrams for this model

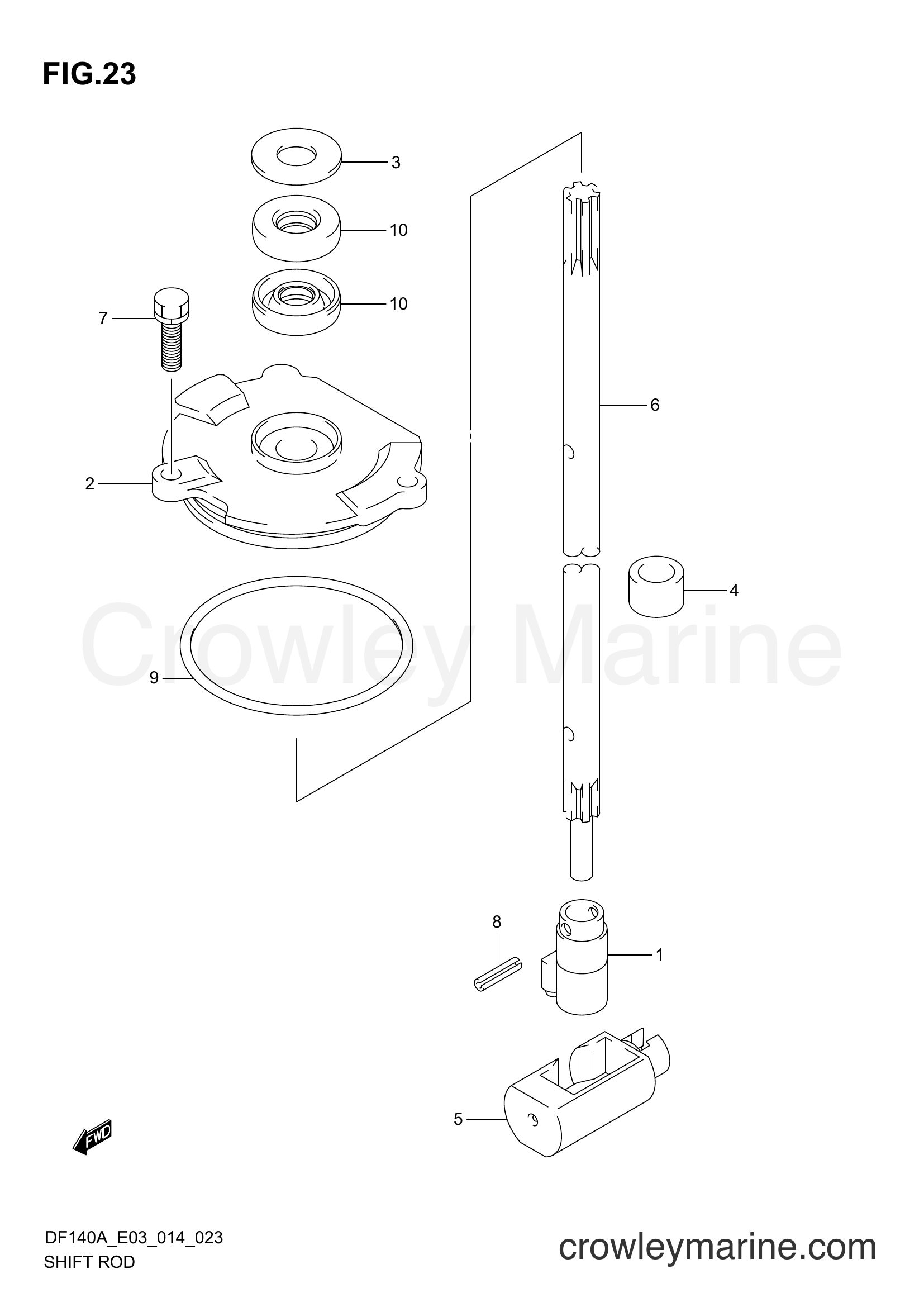

Serial Range Four-Stroke Outboard 140 - DF140AT 410001~ SHIFT ROD (DF115AT E03) diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Suzuki Marine DF140AT 410001~ - SHIFT ROD (DF115AT E03)
Change View:
YOKE,SHIFTER
1
Suzuki Marine
YOKE,SHIFTER25131-92J01
Required: 1
YOKE, SHIFTER
Supersedes: 25131-92J00
Cross Ship
Leaves in 2-5 days
$46.83
$39.81
You save $7.02
More details
HOUSING,SHIFT R
2
Suzuki Marine
HOUSING,SHIFT R25141-92J01
Required: 1
HOUSING, SHIFT ROD GUIDE
Cross Ship
Leaves in 2-5 days
$43.40
$36.89
You save $6.51
More details
SLIDER,SHIFT
5
Suzuki Marine
SLIDER,SHIFT25321-92J10
Required: 1
SLIDER, SHIFT HORIZONTAL
Cross Ship
Leaves in 2-5 days
$114.07
$96.96
You save $17.11
More details
ROD,SHIFT (L)
6
Suzuki Marine
ROD,SHIFT (L)25111-92J00
Required: 1
ROD ASSY, SHIFT (L)
Cross Ship
Leaves in 2-5 days
$116.89
$99.36
You save $17.53
More details
ROD,SHIFT (X)
6
Suzuki Marine
ROD,SHIFT (X)25111-92J10
Required: 1
ROD ASSY, SHIFT (X)
Cross Ship
Leaves in 2-5 days
$118.08
$100.37
You save $17.71
More details
BOLT
7
Suzuki Marine
BOLT29116-93J00
Required: 2
BOLT (6X20)
Cross Ship
Leaves in 2-5 days
$2.83
$2.41
You save $0.42
More details
PIN
8
Suzuki Marine
PIN09205-04014
Required: 2
SPRING PIN (4X14)
Cross Ship
Leaves in 2-5 days
$2.00
$1.70
You save $0.30
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
