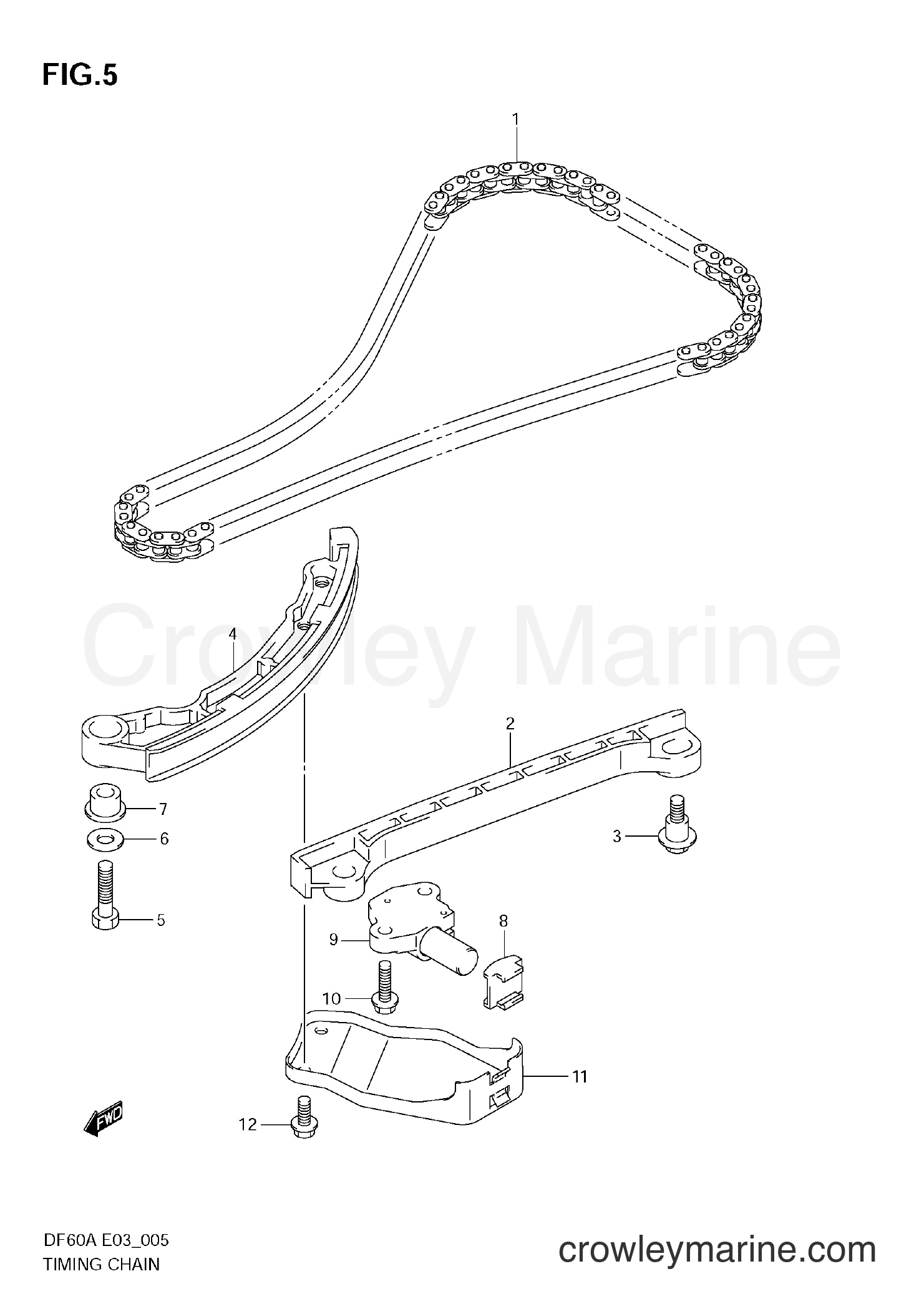

2011 Four-Stroke Outboard 60 - DF60A TIMING CHAIN diagram
1
Suzuki Marine
CHAIN,TIMING12761-88L00
Required: 1
CHAIN, TIMING
$95.63
You save $16.88
2
Suzuki Marine
GUIDE,TIMING CH12771-87J00
Required: 1
GUIDE, TIMING CHAIN NO.1
$20.60
You save $3.64
3
Suzuki Marine
BOLT,TIMING CHA12776-85FA0
Required: 2
BOLT, TIMING CHAIN GUIDE
$4.38
You save $0.77
4
Suzuki Marine
TENSIONER,TIMIN12811-88L00
Required: 1
TENSIONER, TIMING CHAIN
$69.43
You save $12.25
5
Suzuki Marine
BOLT 8X3009100-08260
Required: 1
BOLT, TIMING CHAIN TENSIONER (8X30)
$2.10
You save $0.37
6
Suzuki Marine
WASHER,8.5X20X109160-08123
Required: 1
WASHER (8.5X20X1.2)
$2.08
You save $0.37
7
Suzuki Marine
SPACER,TIMING C12812-73G10
Required: 1
SPACER, TIMING CHAIN TENSIONE
$6.06
You save $1.07
8
Suzuki Marine
ROD,TIMING CHAI12813-73G00
Required: 1
PAD, TIMING CHAIN TENSIONER
$3.87
You save $0.68
9
Suzuki Marine
ADJUSTER ASSY,T12831-90J02
Required: 1
ADJUSTER ASSY, TENSIONER
$103.00
You save $18.18
10
Suzuki Marine
BOLT01550-0620A
Required: 2
BOLT, TENSIONER ADJUSTER
$2.01
You save $0.36
11
Suzuki Marine
Obsolete Suzuki Part12821-88L00
Required: 1
LINK, TIMING CHAIN TENSIONER
$7.18
You save $1.27
12
Suzuki Marine
BOLT01550-0612A
Required: 2
BOLT, TENSIONER LINK
$2.01
You save $0.36
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
