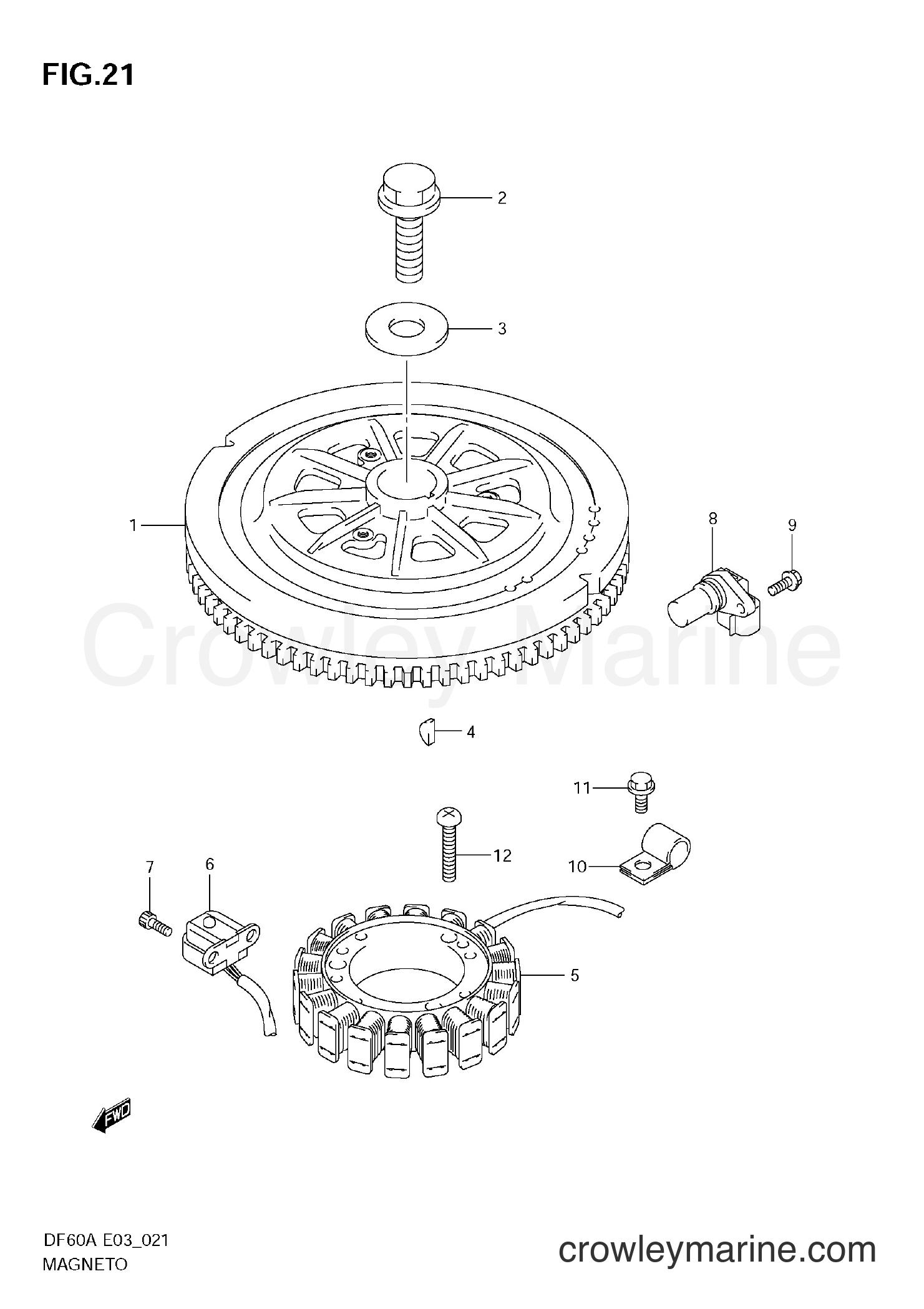

2011 Four-Stroke Outboard 50 - DF50A MAGNETO diagram
1
Suzuki Marine
FLYWHEEL,MAGNET32102-88L01
Required: 1
FLYWHEEL
Supersedes: 32102-88L00
$488.72
You save $86.25
2
Suzuki Marine
BOLT,MAGNETO FL09103-14024
Required: 1
BOLT, FLYWHEEL (14X50)
$9.72
You save $1.72
3
Suzuki Marine
WASHER,MAGNETO09160-14065
Required: 1
WASHER, FLYWHEEL (14.5X36X4.5
$3.18
You save $0.56
$3.54
You save $0.62
5
Suzuki Marine
COIL,BATTERY CH32120-88L00
Required: 1
COIL, BATTERY CHARGING
$420.46
You save $74.20
6
Suzuki Marine
Ignition timing Coil32160-88L01
Required: 1
COIL, IGNITION TIMING
Supersedes: 32160-88L00
$91.56
You save $16.16
7
Suzuki Marine
BOLT (5X10)09106-05030
Required: 2
BOLT, IGNITION TIMING COIL
$2.72
You save $0.48
8
Suzuki Marine
POSITION SENSOR33220-64L10
Required: 1
SENSOR ASSY, CAM POSITION
Supersedes: 33220-58J20
$103.56
You save $18.28
9
Suzuki Marine
BOLT 6X1601547-06167
Required: 1
BOLT, CAM POSITION SENSOR
$1.69
You save $0.30
10
Suzuki Marine
Clamp09403-13413
Required: 2
CLAMP, STATOR LEAD WIRE
Supersedes: 09403-13408
In stock
Only 1 remaining
$5.45
You save $0.96
11
Suzuki Marine
BOLT01550-06127
Required: 1
BOLT, STATOR LEAD WIRE CLAMP
In stock
Only 2 remaining
$2.37
You save $0.42
12
Suzuki Marine
SCREW, 6X30 CRO02112-06307
Required: 3
SCREW, BATTERY CHARGE COIL
$2.05
You save $0.36
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
