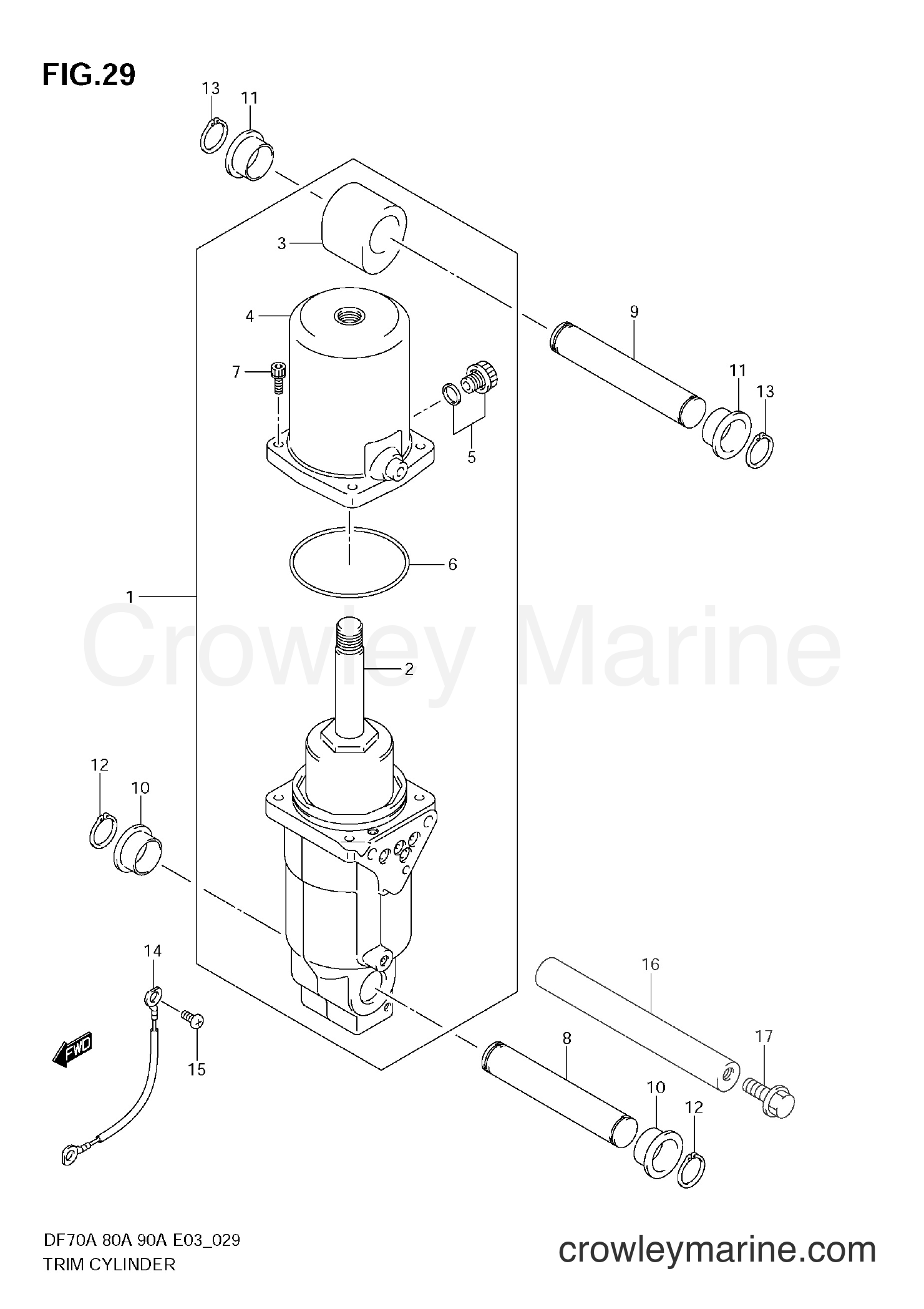

2009 Four-Stroke Outboard 90 - DF90A TRIM CYLINDER diagram
1
Suzuki Marine
Obsolete Suzuki Part48000-87L01
Required: 1
TRIM ASSY, POWER WITH TILT
Supersedes: 48000-87L00
$1595.87
You save $281.62
2
Suzuki Marine
Manifold Assembly48400-87L03
Required: 1
.MANIFOLD ASSY
Supersedes: 48400-87L00
$725.76
You save $128.08
$182.49
You save $32.21
4
Suzuki Marine
Supersedes to 48571-87L0148571-87L00
Required: 1
.TANK, RESERVOIR
$139.43
You save $24.61
$20.43
You save $3.60
In stock
Only 1 remaining
$21.18
You save $3.74
7
Suzuki Marine
BOLT,RESERVOIR48862-87J20
Required: 4
.BOLT, TANK
Supersedes: 48862-87J10
In stock
Only 1 remaining
$14.67
You save $2.59
8
Suzuki Marine
SHAFT,TILT CYL48321-90J00
Required: 1
SHAFT, TILT CYL LOWER
In stock
Only 1 remaining
$49.32
You save $8.70
9
Suzuki Marine
SHAFT,TILT CYL48321-90J00
Required: 1
SHAFT, TILT CYL UPPER
In stock
Only 1 remaining
$49.32
You save $8.70
10
Suzuki Marine
BUSH,TILT CYL L48325-87L00
Required: 2
BUSH, TILT CYL LOWER
$3.60
You save $0.63
11
Suzuki Marine
BUSH,TILT CYL L48325-87L00
Required: 2
BUSH, TILT CYL UPPER
$3.60
You save $0.63
12
Suzuki Marine
Circle Clip09380-22015
Required: 2
CIRCLIP, TILT CYL LWR SHAFT
$4.09
You save $0.72
13
Suzuki Marine
Circle Clip09380-22015
Required: 2
CIRCLIP, TILT CYL UPR SHAFT
$4.09
You save $0.72
14
Suzuki Marine
LEAD,CLAMP TO S36894-87D00
Required: 1
LEAD, PTT TO ANODE
$11.97
You save $2.11
15
Suzuki Marine
SCREW 6X10 (SUS09125-06063
Required: 1
SCREW, PTT TO ANODE (6X10)
$2.00
You save $0.35
16
Suzuki Marine
SHAFT,TILT CYL48121-90J00
Required: 1
SHAFT, TILT CYL LOWER
$76.85
You save $13.56
17
Suzuki Marine
BOLT (10X35)09116-10179
Required: 1
BOLT, TILT CYL LWR SHAFT
Supersedes: 09116-10131
$10.41
You save $1.84
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
