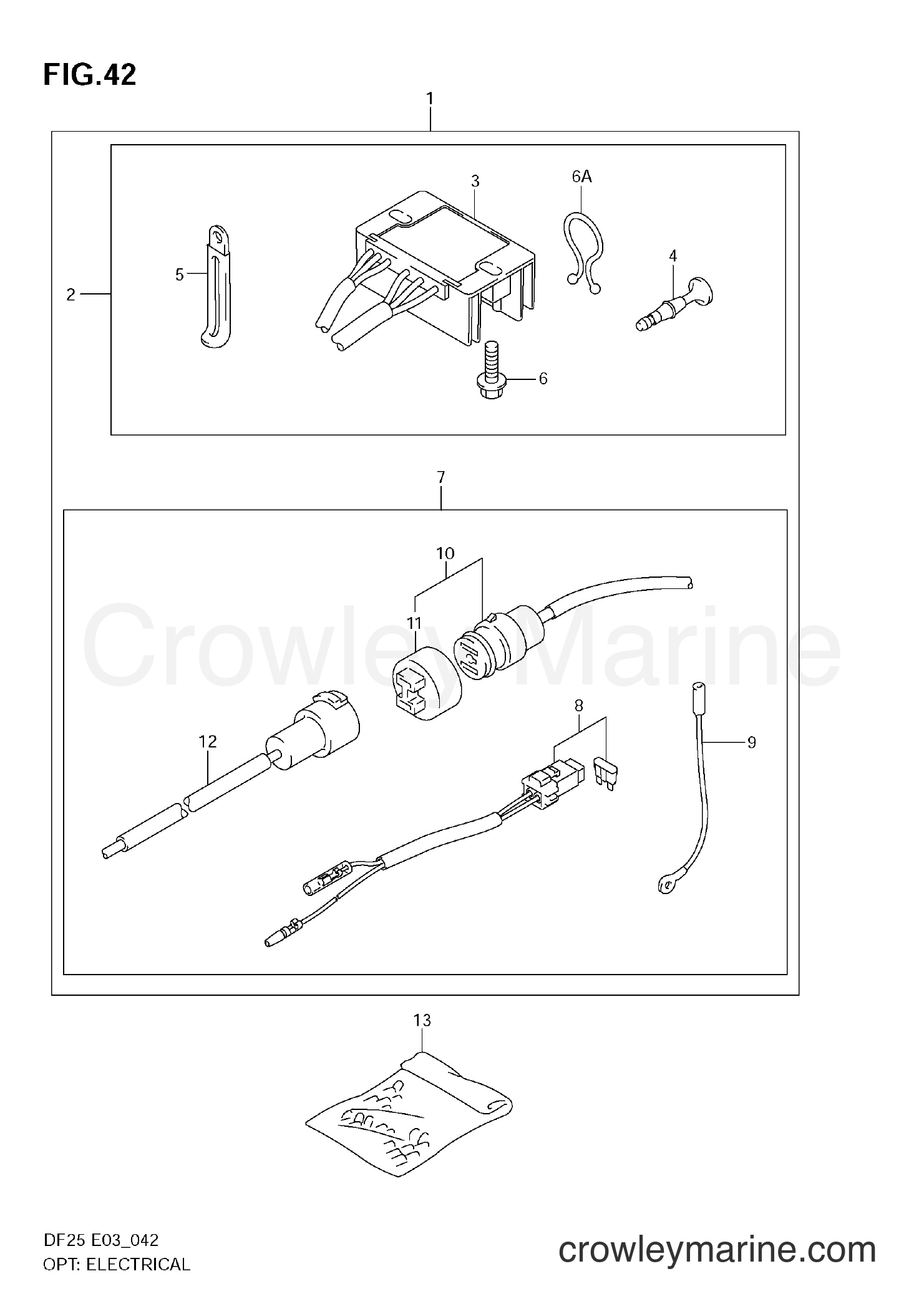

2006 Four-Stroke Outboard 25 - DF25 OPT:ELECTRICAL diagram
1
Suzuki Marine
KIT,BATTERY CHA32000-95J02
Required: 1
KIT, BATTERY CHARGING
Supersedes: 32000-95J01
$146.28
You save $25.81
2
Suzuki Marine
Obsolete Suzuki Part32801-95J00
Required: 1
.RECTIFIER / REGULATOR SET
$125.26
You save $22.10
2
Required: 1
.RECTIFIER / REGULATOR SET
Price unavailable
3
Suzuki Marine
RECTIFIER & REG32800-95J01
Required: 1
..RECTIFIER / REGULATOR ASSY
$210.16
You save $37.09
4
Suzuki Marine
Terminal (Block)36615-96300
Required: 2
..TERMINAL, RESIN
$1.23
You save $0.22
5
Suzuki Marine
Clamp29404-93J11
Required: 1
..CLAMP, RECT / RGLTR LEAD
Supersedes: 29404-93J10
$1.48
You save $0.26
6
Suzuki Marine
BOLT01550-06257
Required: 2
..BOLT, RECTIFIER
In stock
Only 3 remaining
$2.37
You save $0.42
6
Suzuki Marine
CLAMP FUEL HOSE09408-00024
Required: 1
..CLAMP, HARNESS
In stock
Only 2 remaining
$1.57
You save $0.28
7
Suzuki Marine
RECEPTACLE SET39600-95J01
Required: 1
.RECEPTACLE SET
$65.75
You save $11.60
8
Suzuki Marine
Obsolete Suzuki Part36740-95J00
Required: 1
..CASE ASSY, FUSE
$38.34
You save $6.77
9
Suzuki Marine
Obsolete Suzuki Part37801-98300
Required: 1
..LEAD, RECEPTACLE GROUND
$3.10
You save $0.55
10
Suzuki Marine
Receptacle39601-95D01
Required: 1
..RECEPTACLE ASSY, LIGHTING
Supersedes: 39601-95D00
$36.56
You save $6.45
$4.39
You save $0.78
12
Suzuki Marine
PLUG ASSY LAMP39602-93900
Required: 1
..PLUG ASSY, LIGHTING
$35.05
You save $6.18
13
Suzuki Marine
TERMINAL&SLEEVE36990-87D00
Required: 1
TERMINAL & SLEEVE SET
$17.46
You save $3.08
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
