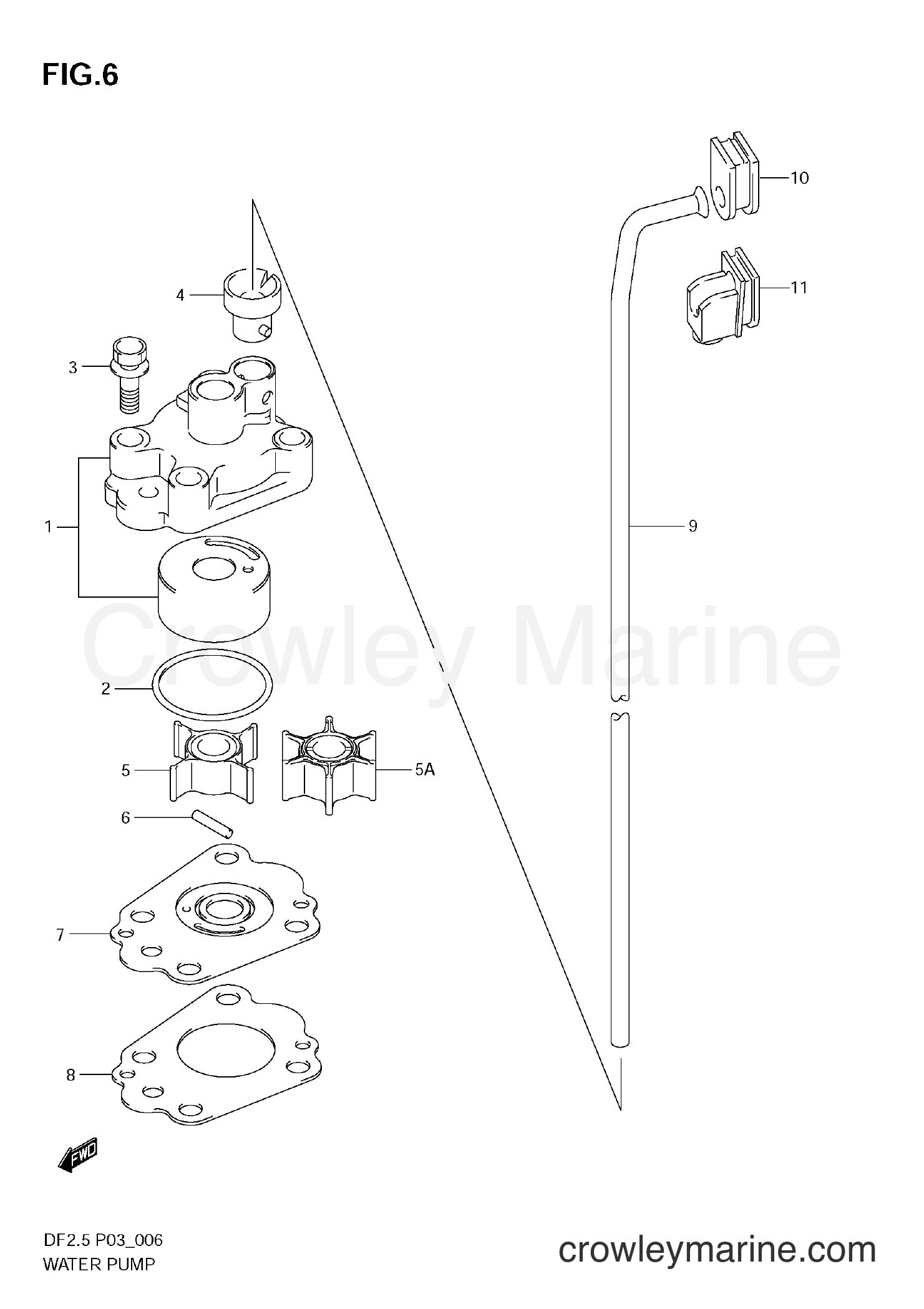

2011 Four-Stroke Outboard 2.5 - DF2.5 WATER PUMP diagram
1
Suzuki Marine
CASE COMP,WATER17410-97J00
Required: 1
CASE, WATER PUMP
$48.79
You save $8.61
2
Suzuki Marine
O-RING D:1.9,1D09280-33005
Required: 1
SEAL, WATER PUMP CASE
In stock
Only 5 remaining
$2.73
You save $0.48
3
Suzuki Marine
BOLT(6X30)09116-06232
Required: 4
BOLT (6X30)
Supersedes: 09116-06207
$2.47
You save $0.44
4
Suzuki Marine
GROMMET,WATER P17415-97J00
Required: 1
GROMMET, WATER PUMP CASE
In stock
Only 2 remaining
$3.98
You save $0.70
5
Suzuki Marine
IMPELLER,WATER17461-97JM0
Required: 1
IMPELLER, WATER PUMP
Supersedes: 17461-97J00
In stock
Only 5 remaining
$17.76
You save $3.14
5
Suzuki Marine
IMPELLER,WATER17461-97JM0
Required: 1
IMPELLER, WATER PUMP
Supersedes: 17461-97J10
In stock
Only 5 remaining
$17.76
You save $3.14
5
Suzuki Marine
IMPELLER,WATER17461-97JM0
Required: 1
IMPELLER, WATER PUMP
Supersedes: 17461-97JL0
In stock
Only 5 remaining
$17.76
You save $3.14
6
Suzuki Marine
PIN09202-02006
Required: 1
PIN, PUMP CASE IMPELLER
In stock
Only 3 remaining
$1.22
You save $0.22
7
Suzuki Marine
PANEL,PUMP CASE17471-97J00
Required: 1
PANEL, PUMP CASE UNDER
$7.34
You save $1.29
8
Suzuki Marine
GASKET,PUMP CAS17472-97J00
Required: 1
GASKET, PUMP CASE PANEL
$4.71
You save $0.83
9
Suzuki Marine
TUBE,WATER(S)17561-97J00
Required: 1
TUBE, WATER (S)
$15.03
You save $2.65
9
Suzuki Marine
TUBE,WATER(S)17561-97JM0
Required: 1
TUBE, WATER (S)
Supersedes: 17561-97J10
$14.97
You save $2.64
10
Suzuki Marine
GROMMET,WATER T17563-97J00
Required: 1
GROMMET, WATER TUBE UPPER
$3.73
You save $0.66
11
Suzuki Marine
GROMMET,WATER T17563-97J10
Required: 1
GROMMET, WATER TUBE UPPER
$5.84
You save $1.03
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
