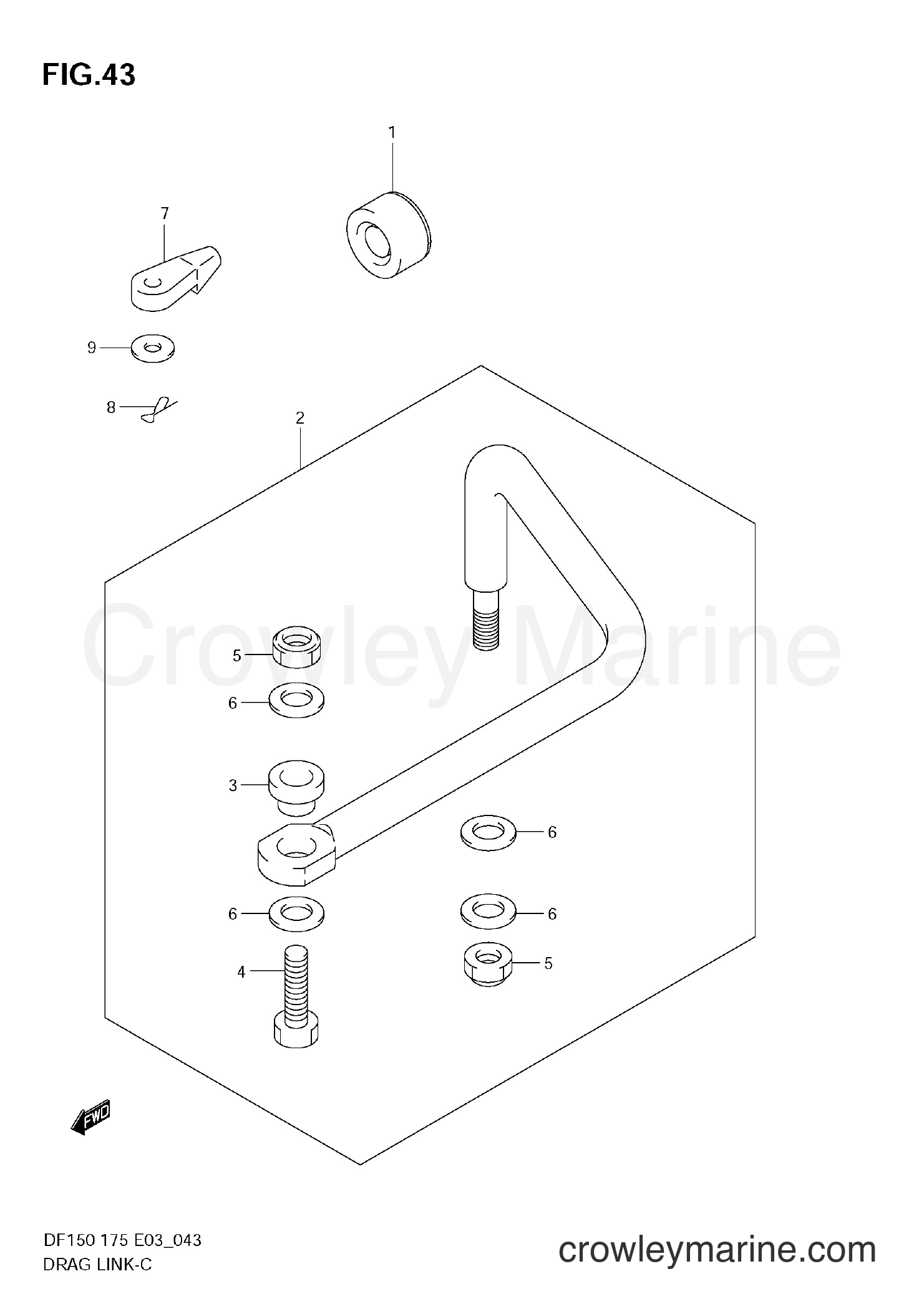

2010 Four-Stroke Outboard 175 - DF175T DRAG LINK diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

Change View:

Suzuki Marine

SEAL STRG CABLE41161-94400

Required: 1

SEAL, STEERING CABLE

~~$14.01~~

$11.91

You save $2.10

More details

Suzuki Marine

LINK DRAG DF15067701-96J00

Required: 1

LINK ASSY, DRAG

~~$69.27~~

$58.88

You save $10.39

More details

Suzuki Marine

Obsolete Suzuki Part67721-96J00

Required: 1

.SPACER

~~$13.38~~

$11.37

You save $2.01

More details

Suzuki Marine

BOLT,DRAG LINK67725-96J00

Required: 1

.BOLT, DRAG LINK

~~$11.36~~

$9.66

You save $1.70

.NUT

~~$9.16~~

$7.79

You save $1.37

.WASHER

~~$2.95~~

$2.51

You save $0.44

More details

Suzuki Marine

SHIFT SHAFT CONNECTOR67467-89J01

Required: 2

CONNECTOR, REMOCON CABLE

In stock

Only 4 remaining

~~$8.61~~

$7.32

You save $1.29

CLIP, R/CON CA CONNECTOR

In stock

Only 1 remaining

~~$2.30~~

$1.96

You save $0.35

WASHER, R/CON CA CONNECTOR (7X12X1.0)

~~$1.89~~

$1.61

You save $0.28

More details

Suzuki Marine

LINK SET,DRAG67700-96J00

Required: 1

LINK SET, DRAG

~~$101.22~~

$86.04

You save $15.18

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
