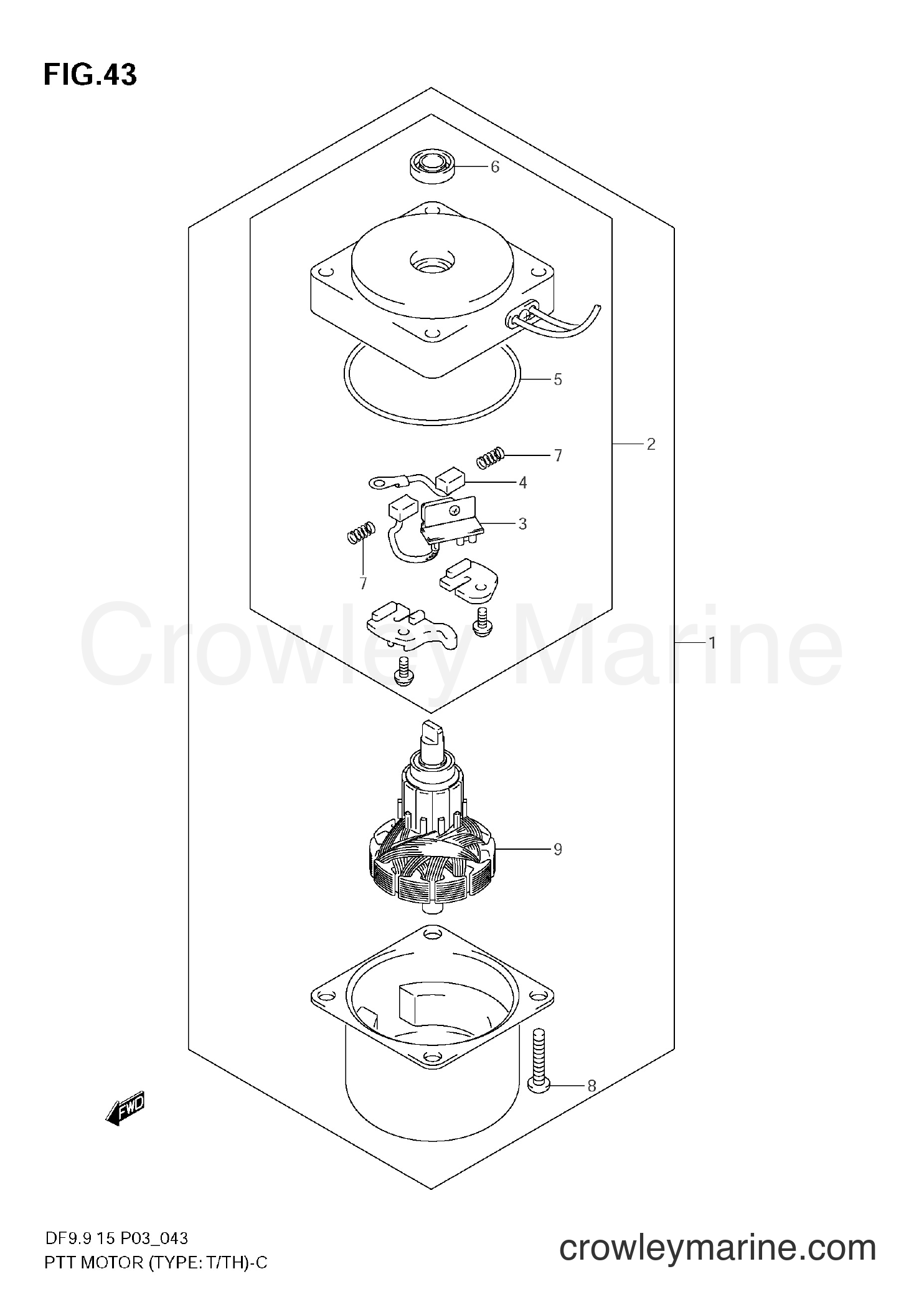

2006 Four-Stroke Outboard 15 - DF15 PTT MOTOR (TYPE:T/TH) diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Suzuki Marine DF15 - PTT MOTOR (TYPE:T/TH)
Change View:
MOTOR ASSY,PT
1
Suzuki Marine
MOTOR ASSY,PT38100-94J01
Required: 1
MOTOR ASSY, PT
Supersedes: 38100-94J00
Cross Ship
Leaves in 2-5 days
$1006.65
$855.65
You save $151.00
More details
BRACKET COMP
2
Suzuki Marine
BRACKET COMP31174-94J00
Required: 1
.BRACKET
Cross Ship
Leaves in 2-5 days
$462.85
$393.42
You save $69.43
More details
BRUSH(+)
4
Suzuki Marine
BRUSH(+)31133-94910
Required: 1
..BRUSH
Supersedes: 31133-94900
Cross Ship
Leaves in 2-5 days
$13.97
$11.18
You save $2.79
More details
"O"-Ring/Seal (Swivel Bracket)
5
Suzuki Marine
"O"-Ring/Seal (Swivel Bracket)31123-94J01
Required: 1
..O RING
Supersedes: 31123-94J00
Cross Ship
Leaves in 2-5 days
$15.41
$13.10
You save $2.31
More details
Oil Seal
6
Suzuki Marine
Oil Seal33799-97E00
Required: 1
..SEAL, OIL
Cross Ship
Leaves in 2-5 days
$25.89
$22.01
You save $3.88
More details
Spring
7
Suzuki Marine
Spring31135-94900
Required: 2
..SPRING
Cross Ship
Leaves in 2-5 days
$5.58
$4.46
You save $1.12
More details
Screw (M8 X 40)
8
Suzuki Marine
Screw (M8 X 40)09136-05041
Required: 2
.SCREW
Cross Ship
Leaves in 2-5 days
$2.41
$1.93
You save $0.48
More details
Obsolete Suzuki Part
9
Suzuki Marine
Obsolete Suzuki Part31311-94J00
Required: 1
.ARMATURE
Cross Ship
Leaves in 2-5 days
$417.00
$354.45
You save $62.55
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
