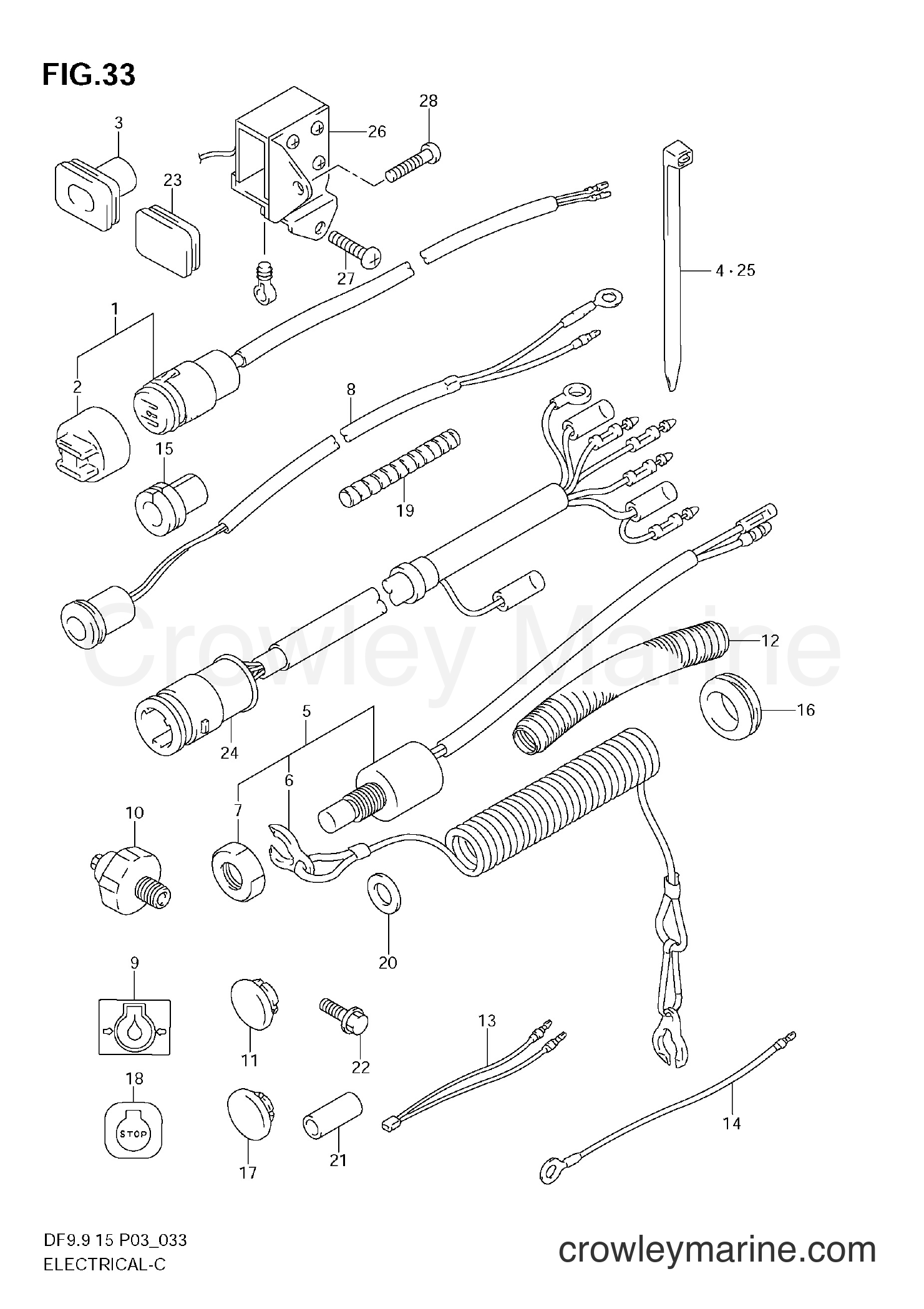

2004 Four-Stroke Outboard 15 - DF15 ELECTRICAL diagram
1
Suzuki Marine
Receptacle39601-95D01
Required: 1
RECEPTACLE ASSY, LIGHTING
Supersedes: 39601-95D00
$36.56
You save $6.45
$4.39
You save $0.78
3
Suzuki Marine
Obsolete Suzuki Part39603-94400
Required: 1
GROMMET, RECEPTACLE CABLE
$5.72
You save $1.01
4
Suzuki Marine
Clamp09407-14403
Required: 1
CLAMP (L:125)
$2.31
You save $0.41
4
Suzuki Marine
Clamp09407-25402
Required: 1
CLAMP (L:248)
$4.81
You save $0.85
5
Suzuki Marine
SWITCH ASSY,EME37830-93E04
Required: 1
SWITCH ASSY, EMERGENCY/STOP
Supersedes: 37830-93E01
$45.67
You save $8.06
6
Suzuki Marine
REPLACEMENT LAN37823-92E02
Required: 1
.PLATE
Supersedes: 37823-92E01
In stock
Only 2 remaining
$17.32
You save $3.06
$5.45
You save $0.96
8
Suzuki Marine
INDICATOR,OIL L36360-89E10
Required: 1
INDICATOR, OIL LEVEL
$50.51
You save $8.91
8
Suzuki Marine
Obsolete Suzuki Part36360-93E00
Required: 1
INDICATOR, OIL LEVEL
$26.96
You save $4.76
9
Suzuki Marine
Obsolete Suzuki Part36367-93E00-019
Required: 1
LABEL, OIL LEVEL
Supersedes: 36367-94J00
$1.73
You save $0.30
10
Suzuki Marine
SWITCH,OIL PRES37820-93E11
Required: 1
SWITCH, PRESSURE
Supersedes: 37820-93E10
$23.57
You save $4.16
11
Suzuki Marine
Obsolete Suzuki Part09250-13005
Required: 1
CAP, EMERGENCY/STOP
$1.73
You save $0.30
12
Suzuki Marine
TUBE,SW LEAD(L:16919-94J10-180
Required: 1
TUBE, SWITCH LEAD
$2.18
You save $0.38
13
Suzuki Marine
Obsolete Suzuki Part36810-93E20
Required: 1
LEAD, NEUTRAL LIMIT
$5.07
You save $0.89
14
Suzuki Marine
Obsolete Suzuki Part36810-93E30
Required: 1
LEAD, NEUTRAL LIMIT
$2.02
You save $0.36
$6.61
You save $1.17
16
Required: 1
GROMMET, SWITCH LEADS
Price unavailable
17
Suzuki Marine
CAP(OD:20)09250-12016
Required: 1
PLUG
Supersedes: 09250-12006
$1.72
You save $0.30
18
Suzuki Marine
LABEL,STOP37835-91J00-YAY
Required: 1
LABEL, STOP
Supersedes: 37835-95D00
In stock
Only 1 remaining
$1.13
You save $0.20
$6.74
You save $1.19
20
Suzuki Marine
WASHER09160-12067
Required: 1
WASHER, EMERGENCY SWITCH
$2.95
You save $0.52
$1.52
You save $0.27
In stock
Only 1 remaining
$2.92
You save $0.51
23
Suzuki Marine
PLUG,LOWER COVE39669-94400
Required: 1
PLUG
Supersedes: 39669-94J00
$4.08
You save $0.72
24
Suzuki Marine
HARNESS ASSY,WI36630-89E02
Required: 1
HARNESS, WIRING
$97.52
You save $17.21
25
Suzuki Marine
Clamp09407-14407
Required: 1
CLAMP, EMERGENCY & STOP SWITC LEAD WIRE
$3.15
You save $0.56
26
Suzuki Marine
SOLENOID ASSY,C38610-93E00
Required: 1
SOLENOID ASSY, CHOKE
$112.36
You save $19.83
$2.42
You save $0.43
In stock
Only 3 remaining
$2.31
You save $0.41
29
Required: 1
REFER TO FIG.34(E-12) FOR MODEL:05~
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
