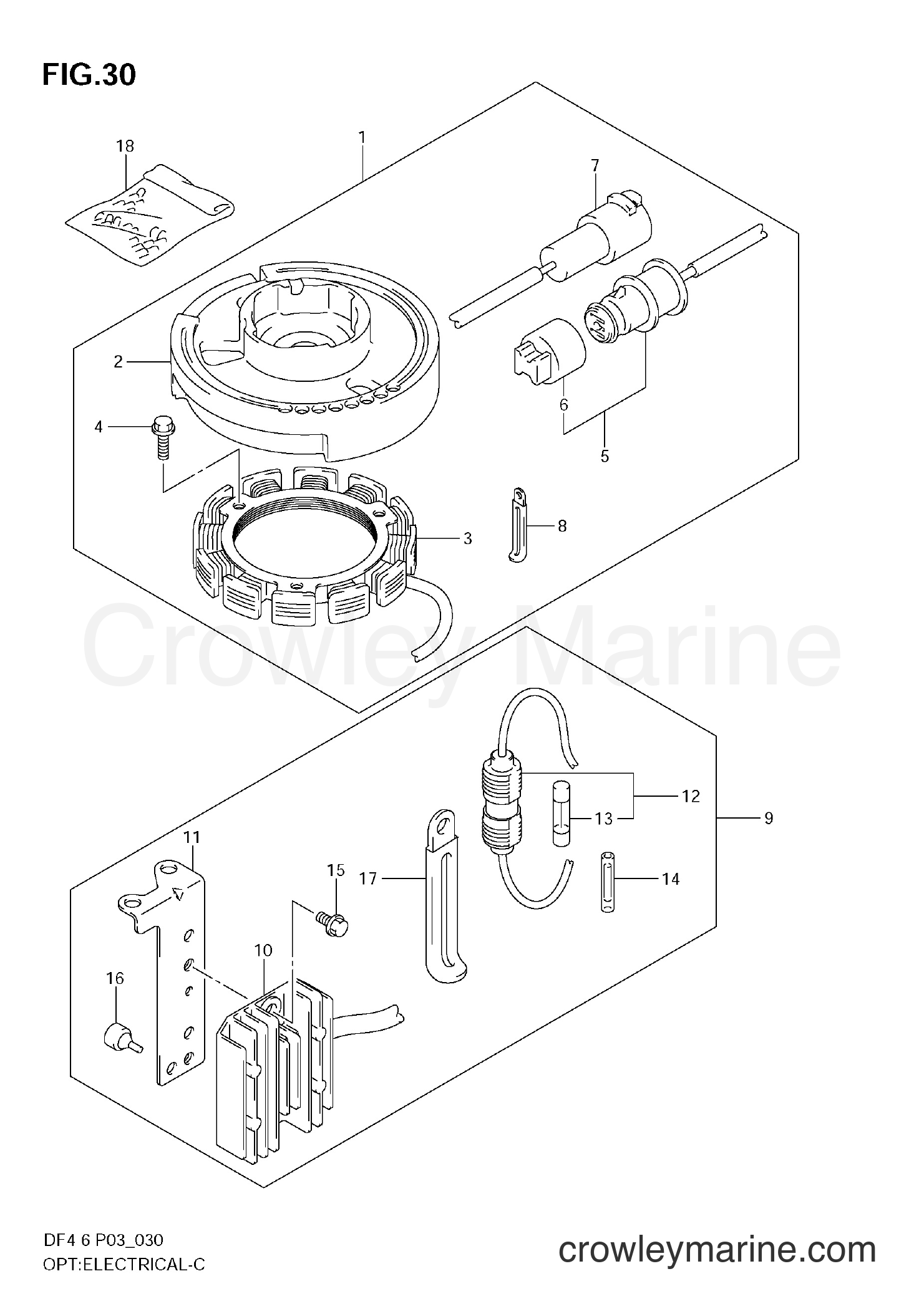

2011 Four-Stroke Outboard 4 - DF4 OPT : ELECTRICAL diagram
1
Suzuki Marine
RECEPTACLE SET,39600-91J00
Required: 1
RECEPTACLE SET, LIGHTING
$241.77
You save $42.67
2
Suzuki Marine
Obsolete Suzuki Part32102-91J10
Required: 1
.FLYWHEEL, MAGNETO
$155.54
You save $27.45
3
Suzuki Marine
Obsolete Suzuki Part32120-91J00
Required: 1
.COIL, LIGHTING
$52.46
You save $9.26
$0.90
You save $0.16
5
Suzuki Marine
Receptacle39601-95D01
Required: 1
.RECEPTACLE, LIGHTING
Supersedes: 39601-95D00
$36.56
You save $6.45
6
Suzuki Marine
CAP,LIGHT CONCE36634-93910
Required: 1
..CAP, LIGHTING RECEPTACLE
$4.39
You save $0.78
7
Suzuki Marine
PLUG ASSY LAMP39602-93900
Required: 1
.PLUG, LIGHTING
$35.05
You save $6.18
8
Suzuki Marine
Clamp09404-06429
Required: 1
.CLAMP, COIL LEAD WIRE
$1.87
You save $0.33
9
Suzuki Marine
RECTIFIER SET32801-91J01
Required: 1
RECTIFIER SET
Supersedes: 32801-91J00
$153.82
You save $27.14
10
Suzuki Marine
RECTIFIER & REG32800-94620
Required: 1
.RECTIFIER / REGULATOR ASSY
$126.51
You save $22.32
11
Suzuki Marine
Obsolete Suzuki Part32890-91J00
Required: 1
.BRACKET, RECTIFIER
$10.07
You save $1.78
12
Suzuki Marine
CASE, ASSY FUSE36740-95253
Required: 1
.CASE ASSY, FUSE
In stock
Only 1 remaining
$16.24
You save $2.87
13
Suzuki Marine
FUSE 20A09481-20001
Required: 1
..FUSE (20A)
$2.62
You save $0.46
14
Suzuki Marine
LEAD WIRE CONNE37132-93700
Required: 2
.CONNECTOR, LEAD WIRE
$1.89
You save $0.33
15
Suzuki Marine
BOLT01550-06127
Required: 2
.BOLT, RECTIFIER
In stock
Only 2 remaining
$2.37
You save $0.42
$2.58
You save $0.46
$3.29
You save $0.58
$17.46
You save $3.08
19
Suzuki Marine
KIT,BATTERY CHA32000-91J03
Required: 1
KIT, BATTERY CHARGING
Supersedes: 32000-91J00
In stock
Only 1 remaining
$299.08
You save $52.78
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
