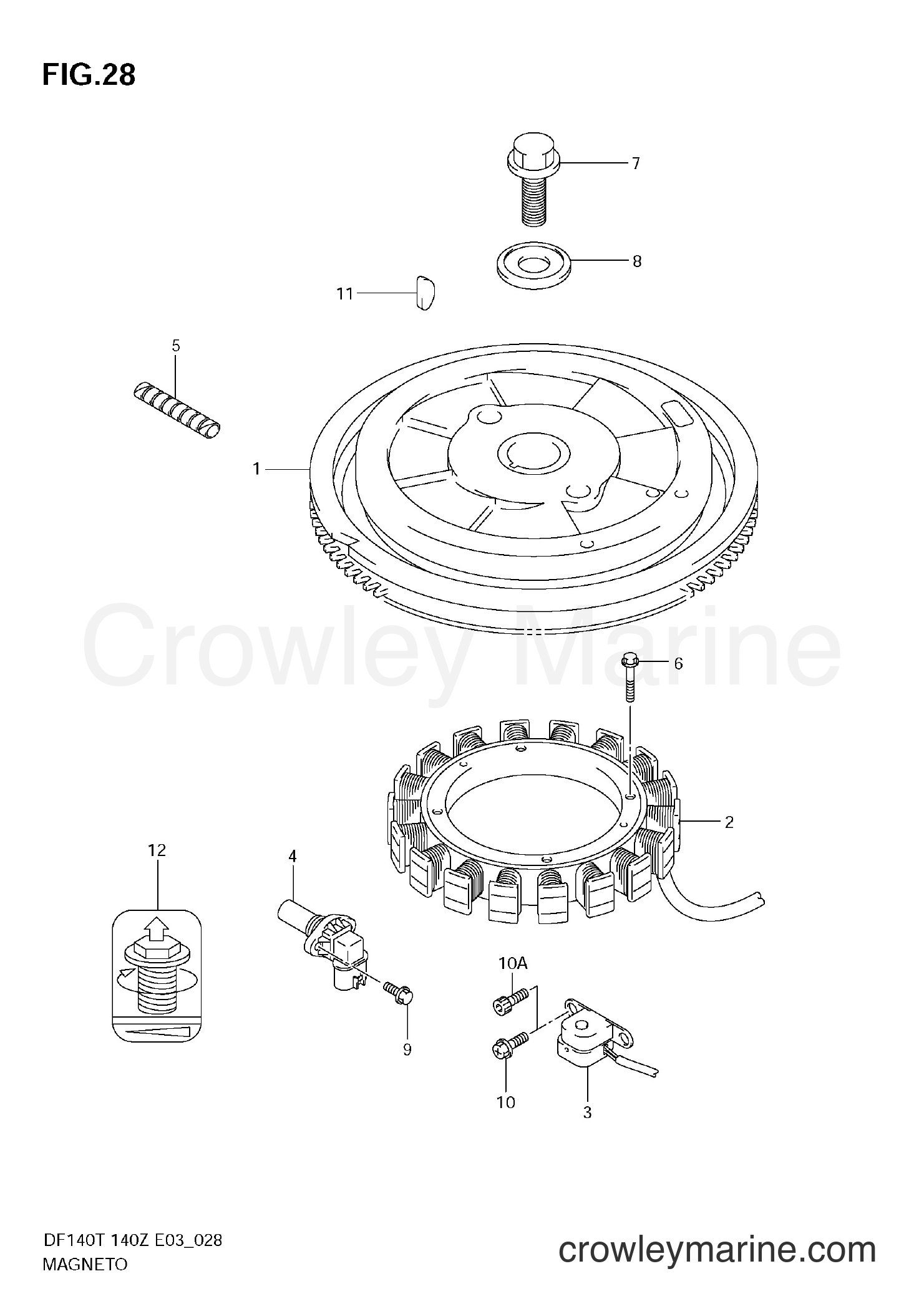

2010 Four-Stroke Outboard 140 - DF140T MAGNETO diagram
1
Suzuki Marine
Flywheel Assembly (Complete)32102-92J10
Required: 1
FLYWHEEL
Supersedes: 32102-92J00
$1113.39
You save $196.48
$1113.39
You save $196.48
2
Suzuki Marine
COIL,BTRY CHARG32120-90J00
Required: 1
COIL, BATTERY CHARGING
$536.02
You save $94.59
2
Suzuki Marine
COIL,BATTERY CH32120-90J10
Required: 1
COIL, BATTERY CHARGING
$597.51
You save $105.44
2
Suzuki Marine
COIL,BATTERY CH32120-90J21
Required: 1
COIL, BATTERY CHARGING
Supersedes: 32120-90J20
$496.83
You save $87.68
3
Suzuki Marine
COIL ASSY,IGN T32160-87J01
Required: 1
COIL, IGNITION TIMING
Supersedes: 32160-87J00
$90.21
You save $15.92
3
Suzuki Marine
Ignition timing Coil32160-87L01
Required: 1
COIL, IGNITION TIMING
Supersedes: 32160-87J10
$91.56
You save $16.16
3
Suzuki Marine
Ignition timing Coil32160-87L01
Required: 1
COIL, IGNITION TIMING
Supersedes: 32160-87L00
$91.56
You save $16.16
4
Suzuki Marine
SENSOR ASSY,CAM33220-76G02
Required: 1
SENSOR, CAM POSITION
$112.40
You save $19.84
$6.74
You save $1.19
$2.90
You save $0.51
7
Suzuki Marine
BOLT,16X5009103-16004
Required: 1
BOLT (16X50)
Supersedes: 09103-16003
$10.38
You save $1.83
8
Suzuki Marine
WASHER,16.5X60X09160-16048
Required: 1
WASHER (16.5X60.5X7.0)
$17.21
You save $3.04
$1.69
You save $0.30
$2.72
You save $0.48
$2.13
You save $0.38
11
Suzuki Marine
5MM WOODRUFF KE08341-31059
Required: 1
KEY, WOODRUFF
$2.57
You save $0.45
12
Suzuki Marine
Obsolete Suzuki Part32118-90J00
Required: 1
LABEL, MAG BOLT
$2.23
You save $0.39
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
